THROTTLE BODY (GSX-R600L4 E33)
GSXR600 2014 (L4) USA (E03)

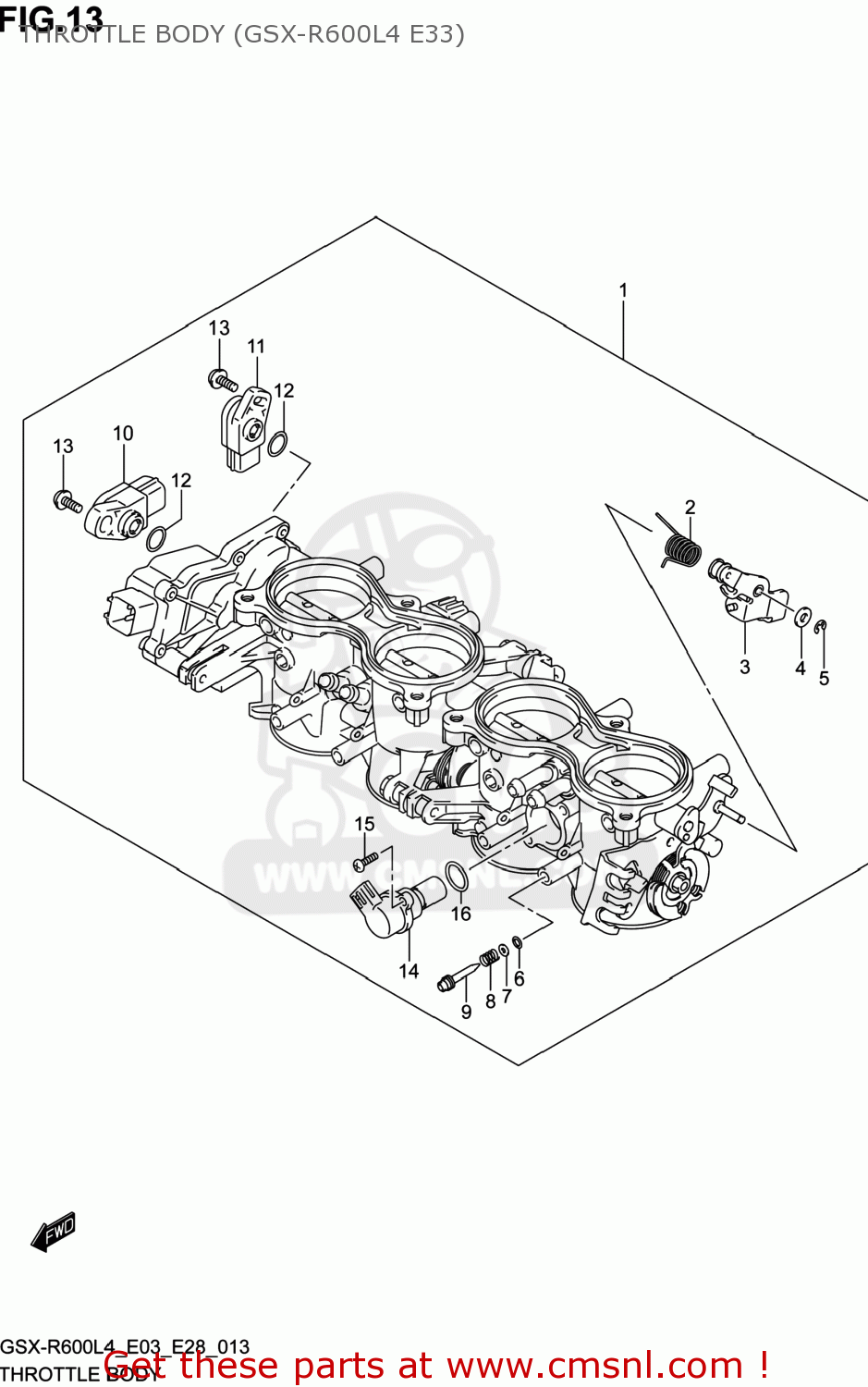

Throttle body (gsx-r600l4 e33) diagram GSXR600 2014 (L4) USA (E03)
THROTTLE BODY (GSX-R600L4 E33) GSXR600 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1340614J10
ref: 1
BODY ASSY,THROTTLE
€ 1,330.50
2
1342629G00
ref: 2
SPRING,TORSION
€ 3.50
3
1342037H00
ref: 3
LEVER ASSY,LINK
€ 43.50
4
1342729G00
ref: 4
PACKING (NAS)
€ 2.50
5
1342429G00
ref: 5
E RING
€ 2.50
6
1329529900
ref: 6
O RING,PILOT AIR SCREW
€ 4.00
7
1360647A00
ref: 7
WASHER
€ 2.00
8
1326848700
ref: 8
SPRING,THROTTLE SCREW
€ 3.50
9
1326933E00
ref: 9
SCREW
€ 8.50
10
1358014J00
ref: 10
SENSOR
€ 97.00
11
1358014J10
ref: 11
SENSOR
€ 108.00
12
1357529G00
ref: 12
O RING
€ 3.00
13
1360502F00
ref: 13
SCREW
€ 3.00
14
1811714J01
ref: 14
MOTOR ASSY
€ 306.00
15
1360537H00
ref: 15
SCREW
€ 2.50
16
1367937H00
ref: 16
O RING
€ 4.50
