FRONT FORK DAMPER
GSXR600 2014 (L4) USA (E03)

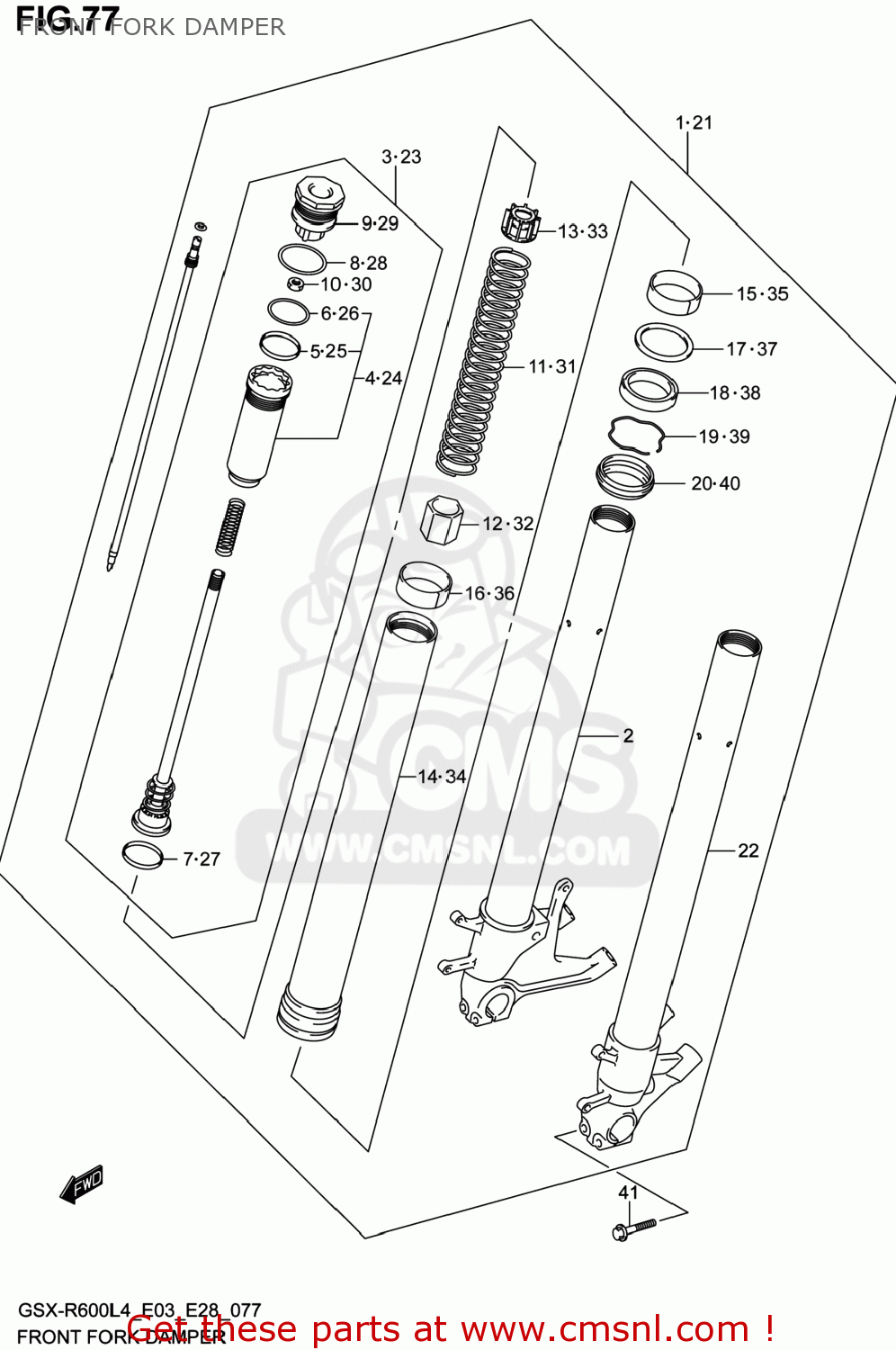

Front fork damper diagram GSXR600 2014 (L4) USA (E03)
FRONT FORK DAMPER GSXR600 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5110314J10
ref: 1
DAMPER ASSY,FR FORK,R
€ 1,201.00
2
5111014J00
ref: 2
TUBE,INNER,R
€ 642.00
3
5211014J00
ref: 3
ROD,PISTON
€ 868.00
4
5117414J00
ref: 4
CASE,ROD GUIDE
€ 95.50
5
5111814J10
ref: 5
PISTON RING
€ 25.00
6
5118714J00
ref: 6
O RING
€ 2.50
7
5111814J00
ref: 7
RING,PISTON
€ 6.50
8
5118701H00
ref: 8
O RING,FORK BOLT
€ 5.50
9
5118914J00
ref: 9
BOLT
€ 127.00
10
5182729G00
ref: 10
NUT
€ 6.50
11
5117114J10
ref: 11
SPRING
€ 72.50
12
5117614J10
ref: 12
COLLAR,SPRING
€ 25.00
13
5117514J00
ref: 13
COLLAR,SPRING
€ 6.00
14
5113114J00
ref: 14
TUBE,OUTER
€ 482.50
15
5115201H10
ref: 15
BUSH,GUIDE
€ 15.00
16
5115214J00
ref: 16
BUSH,SLIDE
€ 12.00
17
5116838B00
ref: 17
SPACER,SEAL
€ 5.00
18
5115301H10
ref: 18
SEAL,OIL
€ 20.00
19
5155638B00
ref: 19
CIRCLIP,FORK OIL SEAL
€ 4.50
20
5117301H00
ref: 20
SEAL,DUST
€ 9.50
21
5110414J10
ref: 21
DAMPER ASSY,FR FORK,L
€ 1,201.00
22
5112014J00
ref: 22
TUBE,INNER,L
€ 665.50
23
5211014J00
ref: 23
ROD,PISTON
€ 868.00
24
5117414J00
ref: 24
CASE,ROD GUIDE
€ 95.50
25
5111814J10
ref: 25
PISTON RING
€ 25.00
26
5118714J00
ref: 26
O RING
€ 2.50
27
5111814J00
ref: 27
RING,PISTON
€ 6.50
28
5118701H00
ref: 28
O RING,FORK BOLT
€ 5.50
29
5118914J00
ref: 29
BOLT
€ 127.00
30
5182729G00
ref: 30
NUT
€ 6.50
31
5117114J10
ref: 31
SPRING
€ 72.50
32
5117614J10
ref: 32
COLLAR,SPRING
€ 25.00
33
5117514J00
ref: 33
COLLAR,SPRING
€ 6.00
34
5113114J00
ref: 34
TUBE,OUTER
€ 482.50
35
5115201H10
ref: 35
BUSH,GUIDE
€ 15.00
36
5115214J00
ref: 36
BUSH,SLIDE
€ 12.00
37
5116838B00
ref: 37
SPACER,SEAL
€ 5.00
38
5115301H10
ref: 38
SEAL,OIL
€ 20.00
39
5155638B00
ref: 39
CIRCLIP,FORK OIL SEAL
€ 4.50
40
5117301H00
ref: 40
SEAL,DUST
€ 9.50
41
5132136F00
ref: 41
BOLT
€ 4.00
