TURNSIGNAL LAMP (GSX-R600L4 E33)
GSXR600 2014 (L4) USA (E03)

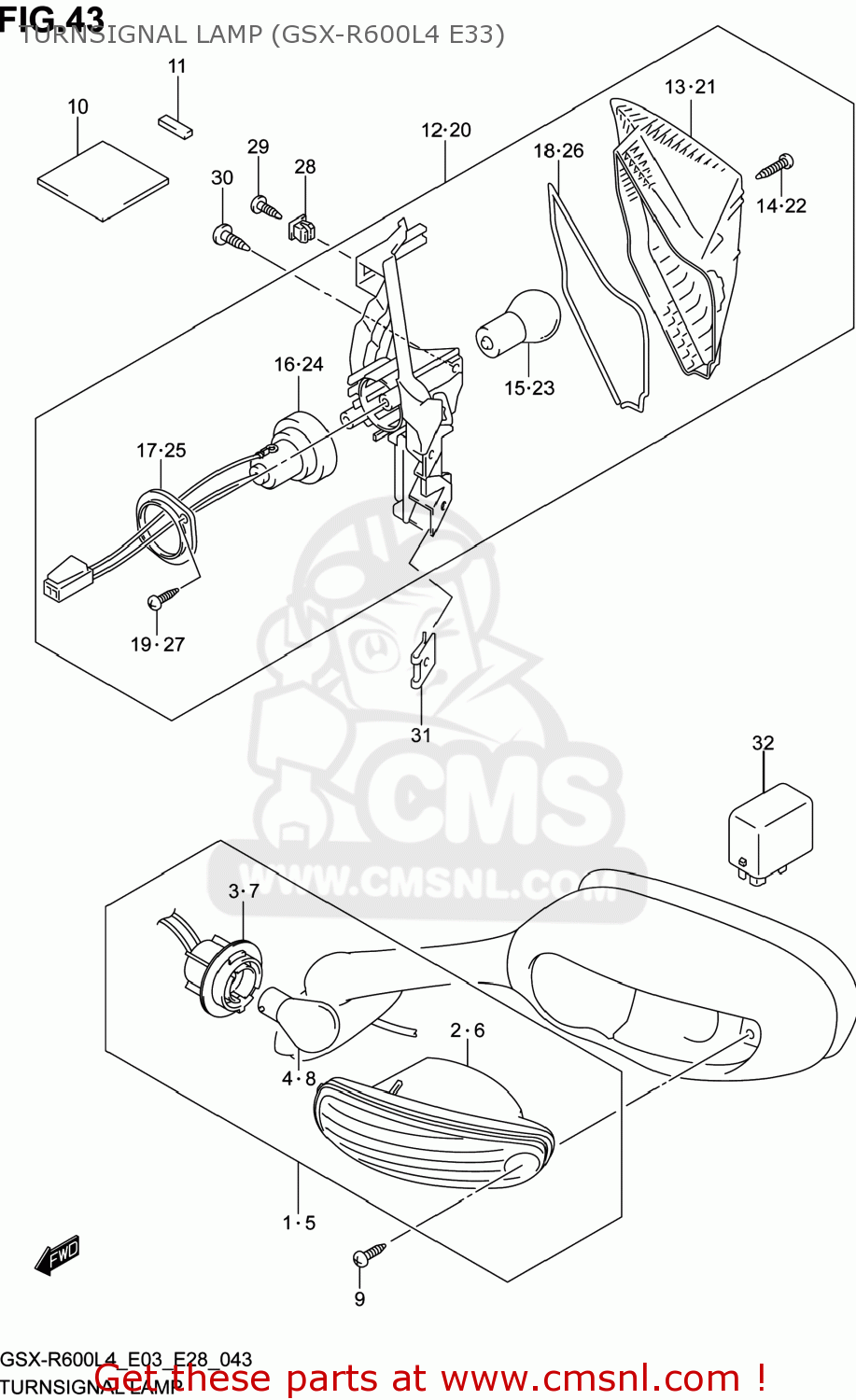

Turnsignal lamp (gsx-r600l4 e33) diagram GSXR600 2014 (L4) USA (E03)
TURNSIGNAL LAMP (GSX-R600L4 E33) GSXR600 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3560141G00
ref: 1
LAMP ASSY,FR TURN SIGNAL,R
€ 34.00
2
3561041G00
ref: 2
LAMP UNIT,R
€ 28.50
3
3561810G50
ref: 3
SOCKET,R
€ 18.50
4
0947112186
ref: 4
BULB(12V21W,AMBER)
€ 2.50
5
3560241G00
ref: 5
LAMP ASSY,FR TURN SIGNAL,L
€ 34.00
6
3563041G00
ref: 6
LAMP UNIT,L
€ 23.00
7
3563810G50
ref: 7
SOCKET,L
€ 19.00
8
0947112186
ref: 8
BULB(12V21W,AMBER)
€ 2.50
9
0913204032
ref: 9
SCREW(4X20)
€ 2.00
10
3365221G10
ref: 10
33652-20C00
CUSHION(40X20X5)
€ 2.50
11
9444321H00
ref: 11
TAPE,FR TURNSIGNAL
€ 2.00
12
3560314J30
ref: 12
LAMP ASSY,RR TURNSIGNAL,R
€ 63.00
13
3565214J30
ref: 13
LENS,R
€ 17.00
14
032110416A
ref: 14
SCREW
€ 1.50
15
0947112186
ref: 15
BULB(12V21W,AMBER)
€ 2.50
16
3565841G00
ref: 16
SOCKET & CORD,R
€ 20.00
17
3571607A30
ref: 17
PLATE,RR COMBINATION
€ 5.50
18
3565347H00
ref: 18
GASKET (NAS)
€ 6.50
19
032110412A
ref: 19
SCREW
€ 1.50
20
3560414J30
ref: 20
LAMP ASSY,RR TURNSIGNAL,L
€ 63.00
21
3567214J30
ref: 21
LENS,L
€ 17.00
22
032110416A
ref: 22
SCREW
€ 1.50
23
0947112186
ref: 23
BULB(12V21W,AMBER)
€ 2.50
24
3567841G00
ref: 24
SOCKET & CORD,L
€ 41.50
25
3571607A30
ref: 25
PLATE,RR COMBINATION
€ 5.50
26
3565347H00
ref: 26
GASKET (NAS)
€ 6.50
27
032110412A
ref: 27
SCREW
€ 1.50
28
0914804021
ref: 28
NUT
€ 2.00
29
035410412A
ref: 29
SCREW
€ 2.00
30
035110512A
ref: 30
SCREW
€ 1.50
31
0914805038
ref: 31
NUT
€ 2.50
32
3861003F00
ref: 32
RELAY ASSY,TURNSIGNAL LAMP
€ 88.50
