HANDLE SWITCH
GSXR600 2014 (L4) USA (E03)

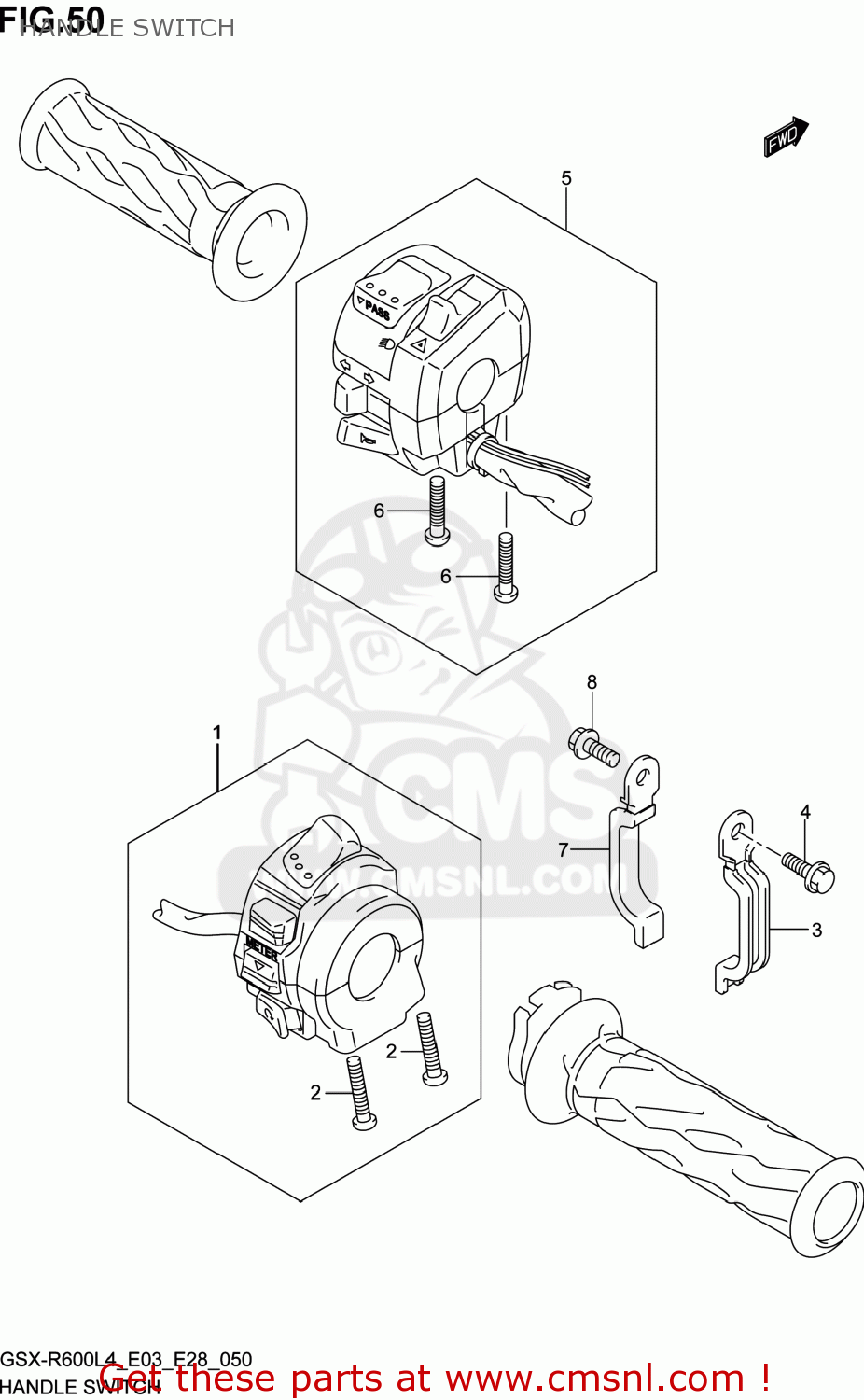

Handle switch diagram GSXR600 2014 (L4) USA (E03)
HANDLE SWITCH GSXR600 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3720047H30
ref: 1
SWITCH ASSY,HANDLE,R
€ 169.00
2
021120530B
ref: 2
SCREW
€ 1.50
3
0940306322
ref: 3
CLAMP
€ 5.00
4
015470612A
ref: 4
BOLT
€ 2.00
5
3740014J00
ref: 5
SWITCH ASSY,HANDLE,L
€ 197.50
6
021120535B
ref: 6
SCREW
€ 1.50
7
0940306322
ref: 7
CLAMP
€ 5.00
8
015470612A
ref: 8
BOLT
€ 2.00
