REAR SWINGINGARM
GSXR600 2014 (L4) USA (E03)

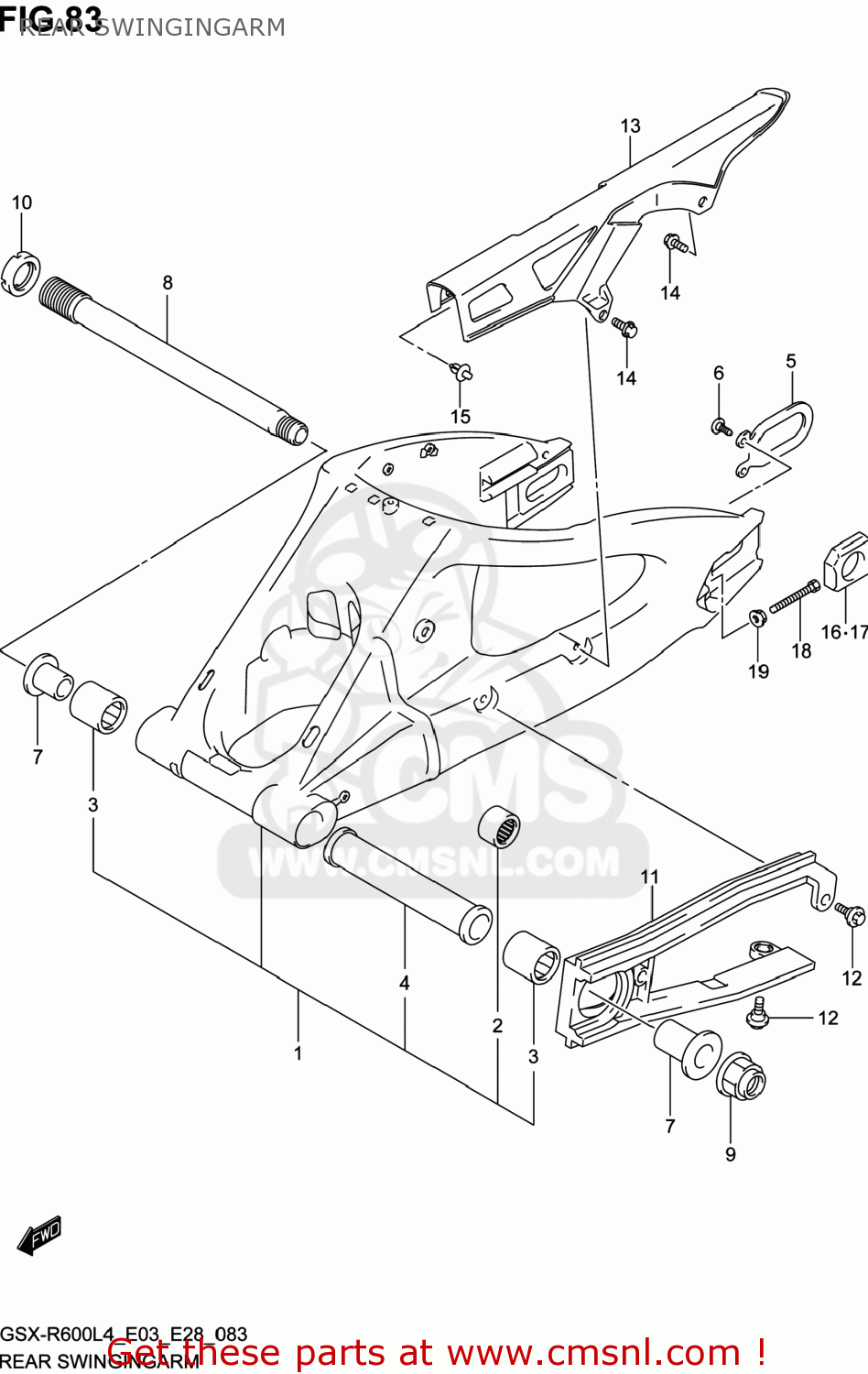

Rear swingingarm diagram GSXR600 2014 (L4) USA (E03)
REAR SWINGINGARM GSXR600 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6100014J00YAP
ref: 1
SWINGINGARM ASSY,RR
€ 1,382.50
1
6100014J00YAP
ref: 1
SWINGINGARM ASSY,RR
€ 1,382.50
2
0926320070
ref: 2
BEARING(20X27X30)
€ 21.00
3
0926327013
ref: 3
BEARING(27X35X35)
€ 23.00
4
6128141G00
ref: 4
SPACER,RR SWG PVT CTR
€ 23.50
5
6112414J00
ref: 5
PLATE,RR SWING ARM BRKT
€ 3.50
6
0912506060
ref: 6
SCREW(6X12)
€ 1.50
7
6125141G00
ref: 7
SPACER,RR SWGARM PIVOT BEARING
€ 19.00
8
6121101H00
ref: 8
SHAFT,RR SWINGINGARM PIVOT
€ 70.00
9
0915920006
ref: 9
NUT
€ 19.00
10
6121442E10
ref: 10
NUT,RR SWGARM PIVOT BOLT
€ 9.00
11
6127314J00
ref: 11
BUFFER,CHAIN TOUCH DEFENSE
€ 26.00
12
0911106072
ref: 12
BOLT(6X17.8)
€ 2.00
13
6131114J00
ref: 13
CASE,CHAIN
€ 20.00
14
0911106107
ref: 14
BOLT(6X12)
€ 3.00
15
09409083085ES
ref: 15
CLIP(BLACK)
€ 2.00
16
6144544G00
ref: 16
ADJUSTER,CHAIN,R
€ 27.00
17
6144644G00
ref: 17
ADJUSTER,CHAIN,L
€ 27.50
18
0910008287
ref: 18
BOLT(8X50)
€ 3.00
19
083161008A
ref: 19
NUT
€ 2.50
