BATTERY
GSXR750 1987 (H) USA (E03)

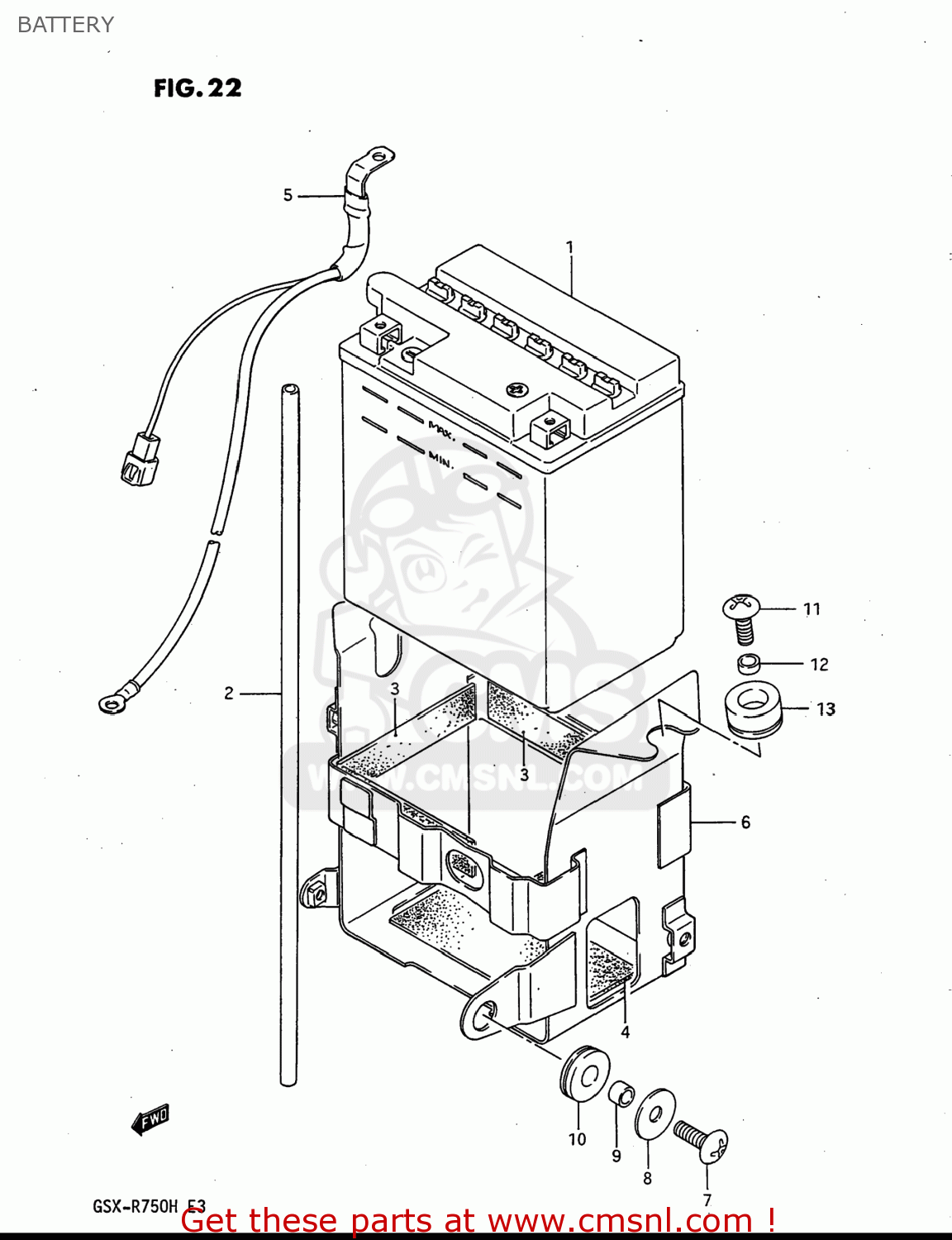

Battery diagram GSXR750 1987 (H) USA (E03)
BATTERY GSXR750 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3361049210
ref: 1
BATTERY ASSY (12V)
€ 110.00
2
3368031003
ref: 2
33680-16A10
HOSE,BATTERY EXHAUST
€ 4.50
3
3365229100
ref: 3
33651-37000
PROTECTOR,20X9
€ 5.00
4
3365137000
ref: 4
PROTECTOR(170X95X3.0)
€ 5.00
4
3365137000
ref: 4
PROTECTOR(170X95X3.0)
€ 5.00
5
3386006B00
ref: 5
33860-06B12
WIRE,BATTERY MINUS LEAD
€ 17.00
6-1
4154027A00
ref: 6-1
41540-27A20
HOLDER,BATTERY
€ 44.00
6-2
4154027A20
ref: 6-2
HOLDER,BATTERY
€ 44.00
7
0214206167
ref: 7
SCREW
€ 2.00
8
0916006006
ref: 8
09160-06084
WASHER
€ 2.00
9
0918006152
ref: 9
09180-06262
SPACER
€ 3.00
10
0932009021
ref: 10
09320-09502
CUSHION
€ 4.00
11
0214206207
ref: 11
SCREW
€ 2.00
12
0918006073
ref: 12
09180-06306
SPACER
€ 2.00
13
4154934A00
ref: 13
CUSHION,HOLDER BATTERY UPR
€ 4.00
