SEAT (MODEL G)
GSXR750 1987 (H) USA (E03)

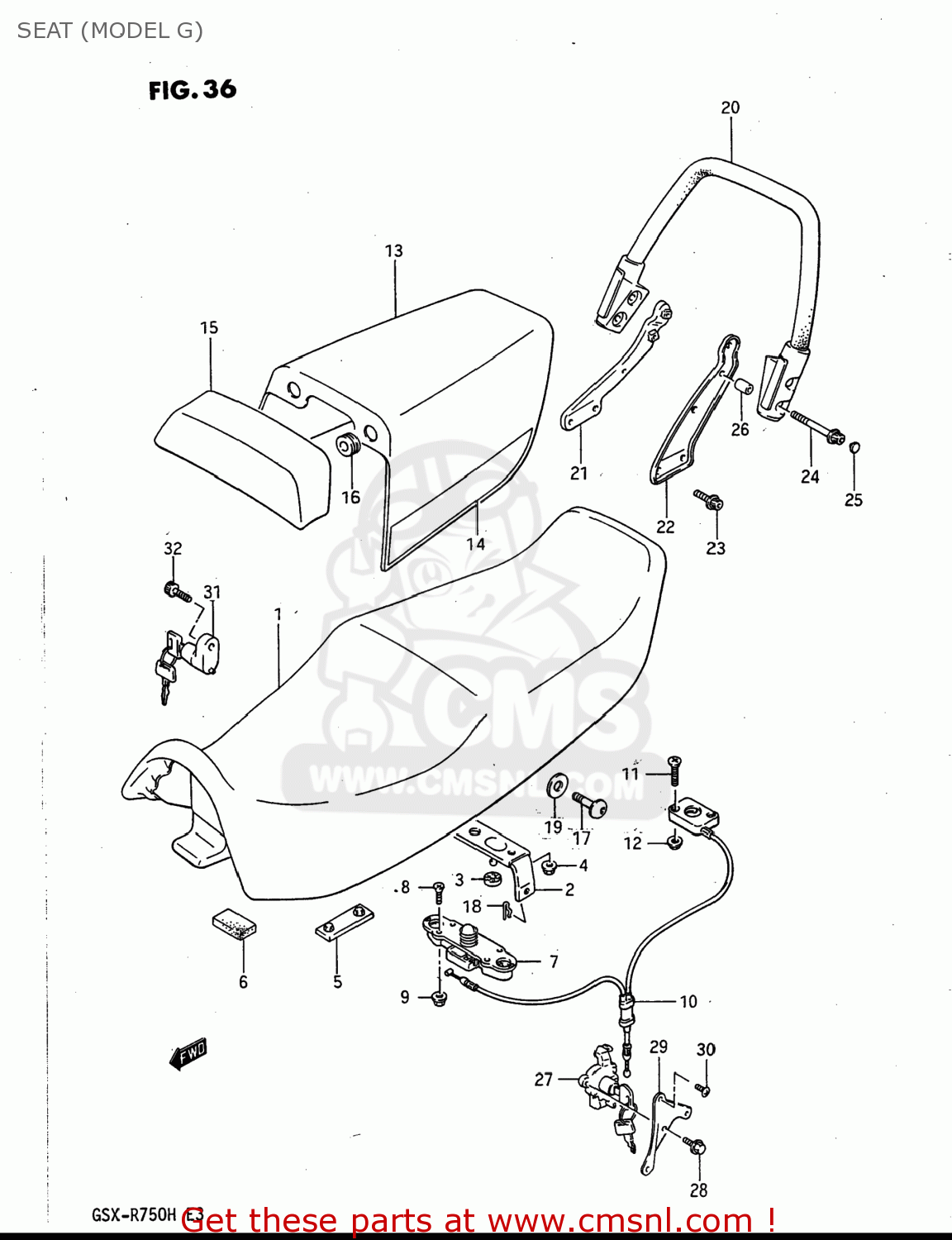

Seat (model g) diagram GSXR750 1987 (H) USA (E03)
SEAT (MODEL G) GSXR750 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4510006B1058D
ref: 1-1
45100-06B01-58R
SEAT ASSEMBLY
€ 385.00
1-2
4510006B1058E
ref: 1-2
45100-06B01-58R
SEAT ASSEMBLY
€ 385.00
2
4521006B00
ref: 2
STRIKER,SEAT LOCK
€ 23.00
3
4521331300
ref: 3
CUSHION
€ 1.50
4
0831616066
ref: 4
08316-1006B
NUT
€ 2.50
5
0932108009
ref: 5
CUSHION
€ 4.00
6
4525527A00
ref: 6
CUSHION
€ 0.00
7
4522013601
ref: 7
LOCK ASSY,SEAT STRIKER
€ 47.00
8
0211206305
ref: 8
02112-0630A
SCREW
€ 2.50
9
0831626065
ref: 9
08316-2006A
NUT
€ 2.00
10
4522006B00
ref: 10
BRACKET,SEAT SUPPORT RR
€ 72.50
11
0212206255
ref: 11
02122-0625A
SCREW
€ 2.00
12
0831626065
ref: 12
08316-2006A
NUT
€ 2.00
13-1
455500684014L
ref: 13-1
45550-06841-14L
BOX,SEAT TAIL
€ 387.50
13-2
4555006840019
ref: 13-2
45550-06841-019
BOX,SEAT TAIL
€ 288.50
14-1
6865027A2008L
ref: 14-1
TAPE SET,SEAT TAIL BOX
€ 17.00
14-2
6865027A20064
ref: 14-2
TAPE SET,SEAT TAIL BOX
€ 0.00
15-1
4622027A0058D
ref: 15-1
46220-27A01-58R
BACKREST,SEAT
€ 61.00
15-2
4622027A0058E
ref: 15-2
46220-27A01-58R
BACKREST,SEAT
€ 61.00
16
0932012031
ref: 16
CUSHION
€ 3.00
17
4518606B00
ref: 17
BOLT
€ 5.00
18
0938506001
ref: 18
CLIP
€ 11.00
19
0916010079
ref: 19
WASHER(10.1X25X3.2)
€ 3.00
20
4621027A01
ref: 20
46210-27X00-019
HANDLE,PILLION RIDER
€ 99.50
21
4624027A00
ref: 21
PLATE,PILLION HANDLE,R
€ 10.00
22
4625027A00
ref: 22
PLATE COMP,PILLION HANDLE
€ 9.00
23
0712006168
ref: 23
07120-06167
BOLT
€ 2.50
24
0910608061
ref: 24
07120-0860B
BOLT
€ 4.50
25
0925006008
ref: 25
CAP(OD:10)
€ 3.00
26
0918008125
ref: 26
09180-08205
SPACER (8.6X13.8X21.5)
€ 6.50
27
9570027A00KEY
ref: 27
95700-27820
LOCK SET
€ 65.50
28
0712006205
ref: 28
07120-0620B
PLUG ,6X20
€ 3.50
29
4528527A00
ref: 29
BRACKET,SEAT LOCK
€ 3.50
30
0214206125
ref: 30
02142-0612A
SCREW 6X12
€ 2.00
31
9570031300KEY
ref: 31
95700-31810
LOCK SET
€ 49.50
32
0910606055
ref: 32
09106-06075
BOLT
€ 2.50
32
0910606055
ref: 32
09106-06075
BOLT
€ 2.50
