CYLINDER
GSXR750 1987 (H) USA (E03)

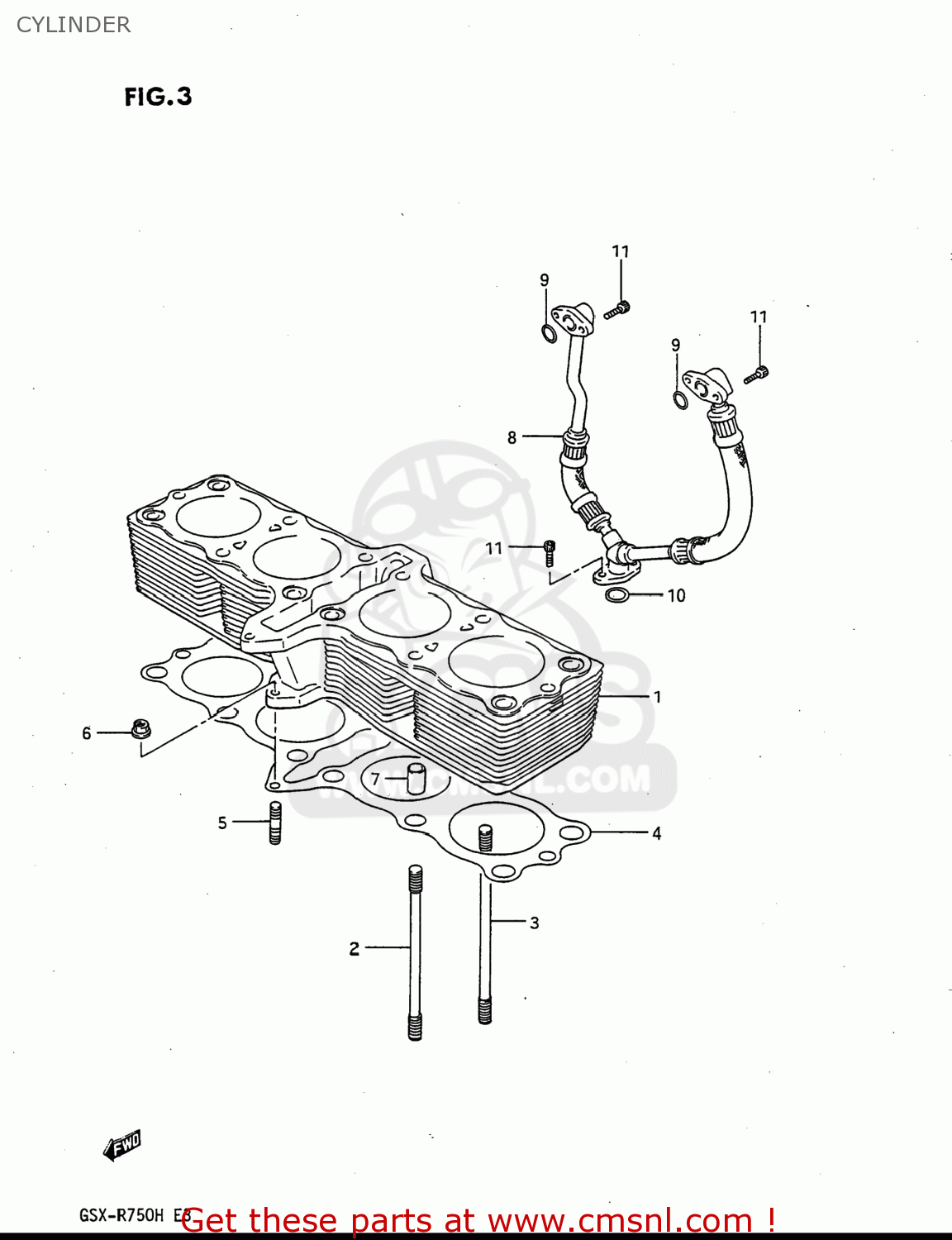

Cylinder diagram GSXR750 1987 (H) USA (E03)
CYLINDER GSXR750 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1121027A03
ref: 1
11210-27A04
CYLINDER
€ 896.00
2
0910810074
ref: 2
09108-10144
STUD
€ 11.00
3
0910810073
ref: 3
BOLT,STUD
€ 9.50
4
1124127A02
ref: 4
11241-27A04
GASKET,CYLINDER (NAS)
€ 20.00
5
0142106205
ref: 5
01421-0620A
STUD BOLT L:20
€ 2.50
6
0831616064
ref: 6
08316-1006B
NUT 6MM
€ 2.50
7
0920613006
ref: 7
09206-13017
PIN
€ 9.00
8
1132827A01
ref: 8
11328-27A04
HOSE
€ 241.00
9
0928014011
ref: 9
O RING(D:2.5,ID:13.8)
€ 3.50
10
0928015007
ref: 10
O RING(D:2.4,ID:15.8)
€ 2.00
11
0711006165
ref: 11
07130-0616B
BOLT
€ 3.00
