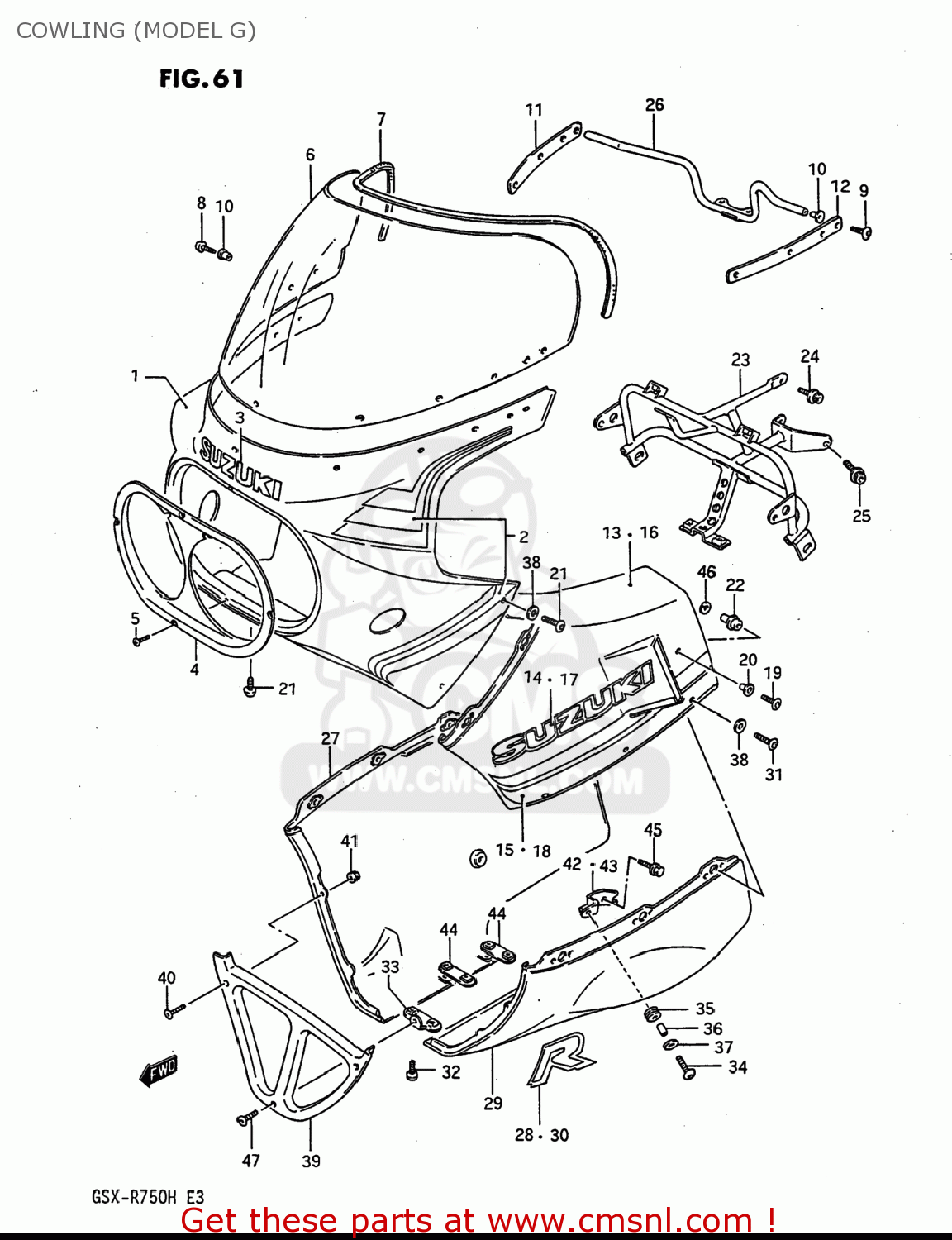

COWLING (MODEL G)

ref

part #

description

quantity

1-1

9440027A407GF
ref: 1-1
94400-27820-7GF

COWLING SET

€ 881.50

1-1

9440027A407GF
ref: 1-1
94400-27820-7GF

COWLING SET

€ 881.50

1-2

9440027A407JK
ref: 1-2
94400-27820-7JK

COWLING SET

€ 881.50

1-2

9440027A407JK
ref: 1-2
94400-27820-7JK

COWLING SET

€ 881.50

2-1

6819027A117UC
ref: 2-1

TAPE SET,COWLING

€ 100.50

2-2

6819027A117VE
ref: 2-2

TAPE SET,COWLING

€ 69.00

3

6827104A00742
ref: 3
68271-04A10-742

EMBLEM,LEG SHIELD

€ 13.50

4

9443527A00291
ref: 4

COVER,COWLING FR

€ 35.00

5

0354104125
ref: 5
03541-0412A

SCREW

€ 1.50

6

9461106B01
ref: 6
94611-27A01

WINDSCREEN

€ 457.50

7

9463127A00
ref: 7
94631-49300

MOLDING,SCREEN

€ 15.00

8

0913905025
ref: 8

SCREW(5X14)

€ 2.00

9

0913905032
ref: 9

SCREW(5X18)

€ 2.50

10

9461927A00
ref: 10
09159-05048

NUT,COWLING SCREEN

€ 6.50

11

9452927A00
ref: 11

PLATE,RR VIEW MIRROR,R

€ 6.00

12

9453927A00
ref: 12

PLATE,RR VIEW MIRROR,L

€ 4.50

13-1

9443027A5014L
ref: 13-1
94430-27A30

COVER ASSEMBLY,COWLING

€ 304.00

13-2

9443027A50019
ref: 13-2
94430-27A30

COVER ASSEMBLY,COWLING

€ 304.00

14

681113130066P
ref: 14
68111-00A10-66P

EMBLEM

€ 24.00

15-1

6868027A2181F
ref: 15-1

TAPE SET,COWLING SIDE,RIGHT

€ 23.50

15-2

6868027A2165G
ref: 15-2

TAPE SET,COWL SIDE RH

€ 18.00

16-1

9444027A5014L
ref: 16-1
94440-27A30

COVER,COWLING SIDE,LEFT

€ 264.00

16-2

9444027A50019
ref: 16-2
94440-27A30

COVER,COWLING SIDE,LEFT

€ 264.00

17

681113130066P
ref: 17
68111-00A10-66P

EMBLEM

€ 24.00

18-1

6869027A2181F
ref: 18-1

TAPE SET,COWLING SIDE,LEFT

€ 50.00

18-2

6869027A2165G
ref: 18-2

TAPE SET,COWL SIDE LH

€ 27.00

19

0913906027
ref: 19

SCREW(6X12)

€ 3.00

20

0916906033
ref: 20

WASHER

€ 1.50

21

0913906030
ref: 21

SCREW(6X16)

€ 3.50

22

9457004A00
ref: 22

CUSHION,COWLING

€ 12.50

23

9451027A40
ref: 23
94510-27A60

BRACE,COWLING

€ 132.00

24

0712006165
ref: 24
07120-0616B

BOLT

€ 2.50

25

0712008165
ref: 25
07120-0816A

BOLT

€ 3.00

26

9453027A10
ref: 26

BRACE,COWLING BODY RR

€ 38.00

26

9453027A10
ref: 26

BRACE,COWLING BODY RR

€ 38.00

27-1

9447027A407TG
ref: 27-1
94470-27A41-13L

COVER,COWLING,LOWER,RIGHT

€ 626.00

27-2

9447027A407JK
ref: 27-2
94470-27A41-13L

COVER,COWLING,LOWER,RIGHT

€ 626.00

28-1

6826127A0073H
ref: 28-1
68261-27A00-8KE

EMBLEM

€ 27.00

28-2

6826127A0060D
ref: 28-2

EMBLEM

€ 22.50

29-1

9448027A407TG
ref: 29-1
94480-27A40-13L

COVER,COWLING,LOWER,LEFT

€ 626.00

29-2

9448027A407JK
ref: 29-2
94480-27A40-13L

COVER,COWLING,LOWER,LEFT

€ 626.00

30-1

6826127A1073H
ref: 30-1
68261-27A00-8KE

EMBLEM

€ 27.00

30-2

6826127A1060D
ref: 30-2
68261-27A00-60D

EMBLEM

€ 22.50

31

0913906030
ref: 31

SCREW(6X16)

€ 3.50

32

0913906039
ref: 32

SCREW(6X16)

€ 2.50

33

9449006B00
ref: 33

BRACE,COWLING LWR COVER

€ 4.50

34

0913906028
ref: 34

SCREW(6X20)

€ 3.50

35

0932009016
ref: 35

CUSHION

€ 2.50

36

0918006152
ref: 36
09180-06262

SPACER

€ 3.00

37

0916006056
ref: 37

WASHER(6.5X18X1)

€ 2.00

38

0916006094
ref: 38

WASHER(6.5X15X1.0)

€ 1.50

39-1

9447506B0014L
ref: 39-1
94475-06B01-13L

COVER,COWLING,LOWER,FRONT

€ 121.50

39-2

9447506B00019
ref: 39-2
94475-06B01-13L

COVER,COWLING,LOWER,FRONT

€ 121.50

40

0913905025
ref: 40

SCREW(5X14)

€ 2.00

41

0831626055
ref: 41
08316-2005A

NUT

€ 2.00

42

9458027A00
ref: 42

BRACE,COWLING LWR,R

€ 10.00

43

9459027A00
ref: 43

BRACE,COWLING LWR,L

€ 6.50

44

9449306B00
ref: 44

BRACE,COWLING LWR COVER RR

€ 4.00

45

0151706128
ref: 45
01550-06127

BOLT

€ 2.50

46

0832131064
ref: 46
08321-0106A

WASHER

€ 2.00

47

0913906030
ref: 47

SCREW(6X16)

€ 3.50

47

0913906030
ref: 47

SCREW(6X16)

€ 3.50

all assemblies
