FRAME
GSXR750 1987 (H) USA (E03)

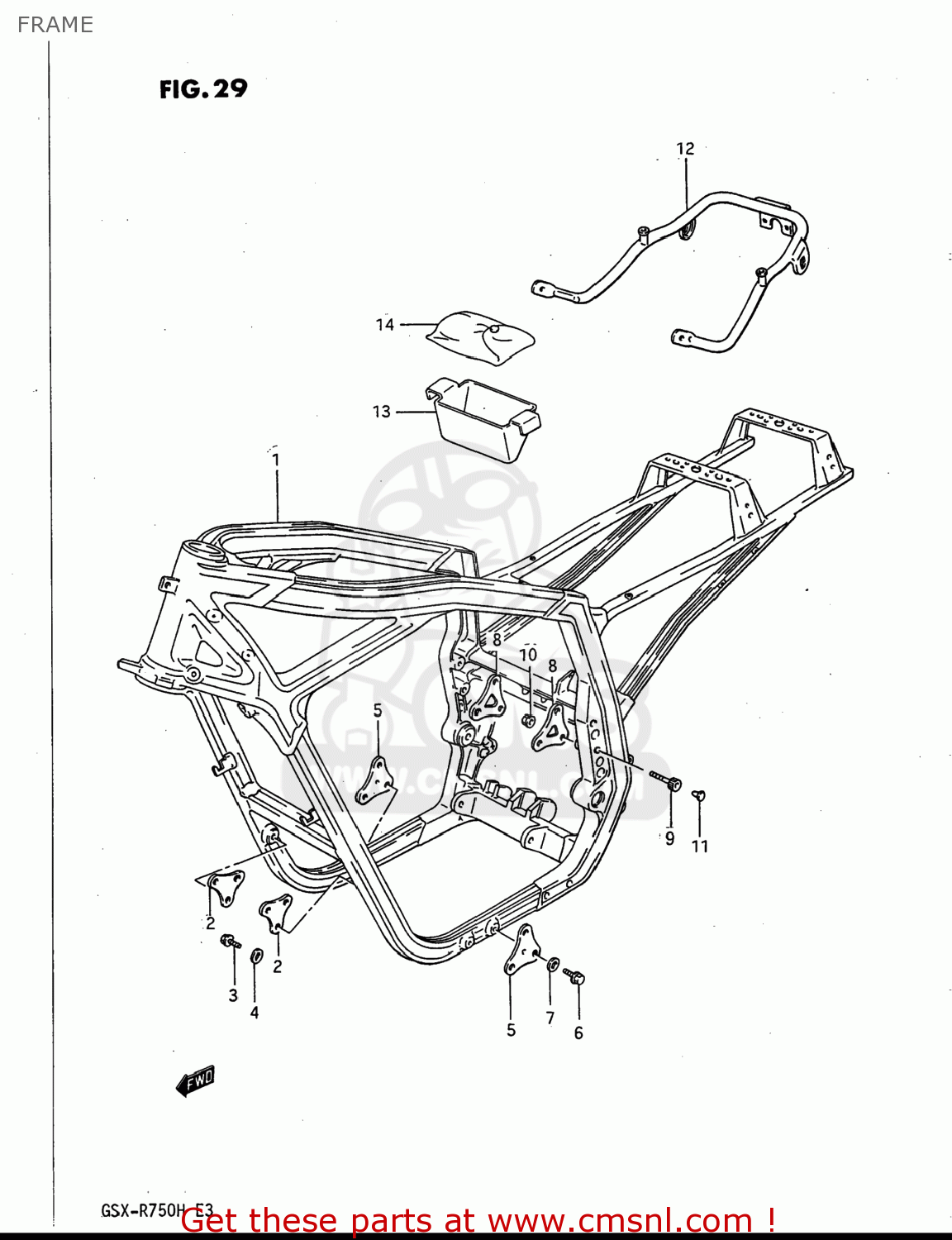

Frame diagram GSXR750 1987 (H) USA (E03)
FRAME GSXR750 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110027A42
ref: 1-1
41100-27A44
FRAME
€ 1,278.50
1-2
4110027A44
ref: 1-2
FRAME
€ 1,278.50
2
4191127A00
ref: 2
PLATE,ENGINE MOUNTING NO
€ 11.50
3
0151708258
ref: 3
01550-08257
BOLT
€ 2.50
4
0916008010
ref: 4
09160-08054
WASHER (8.2X20X1.6)
€ 1.50
5
4192127A00
ref: 5
PLATE,ENGINE MOUNTING NO.1
€ 19.00
6
0711008408
ref: 6
07130-08407
BOLT
€ 3.50
7
0916008010
ref: 7
09160-08054
WASHER (8.2X20X1.6)
€ 1.50
8
4193127A00
ref: 8
PLATE,ENGINE MOUNTING NO
€ 20.00
9
0711008458
ref: 9
07130-08457
BOLT, RH
€ 3.00
10
0831931087
ref: 10
NUT
€ 2.50
11
4157504A00
ref: 11
CAP,ENGINE MOUNTING
€ 2.00
12
4398006B10
ref: 12
GRIP COMP,REAR
€ 81.00
13
4743127A01
ref: 13
HOLDER,TOOL
€ 35.50
14-1
0980000295
ref: 14-1
09800-21011
TOOL ASSY
€ 50.00
14-2
0980000344
ref: 14-2
09800-21011
TOOL ASSY
€ 50.00
