STARTER CLUTCH

GSXR750 1987 (H) USA (E03)

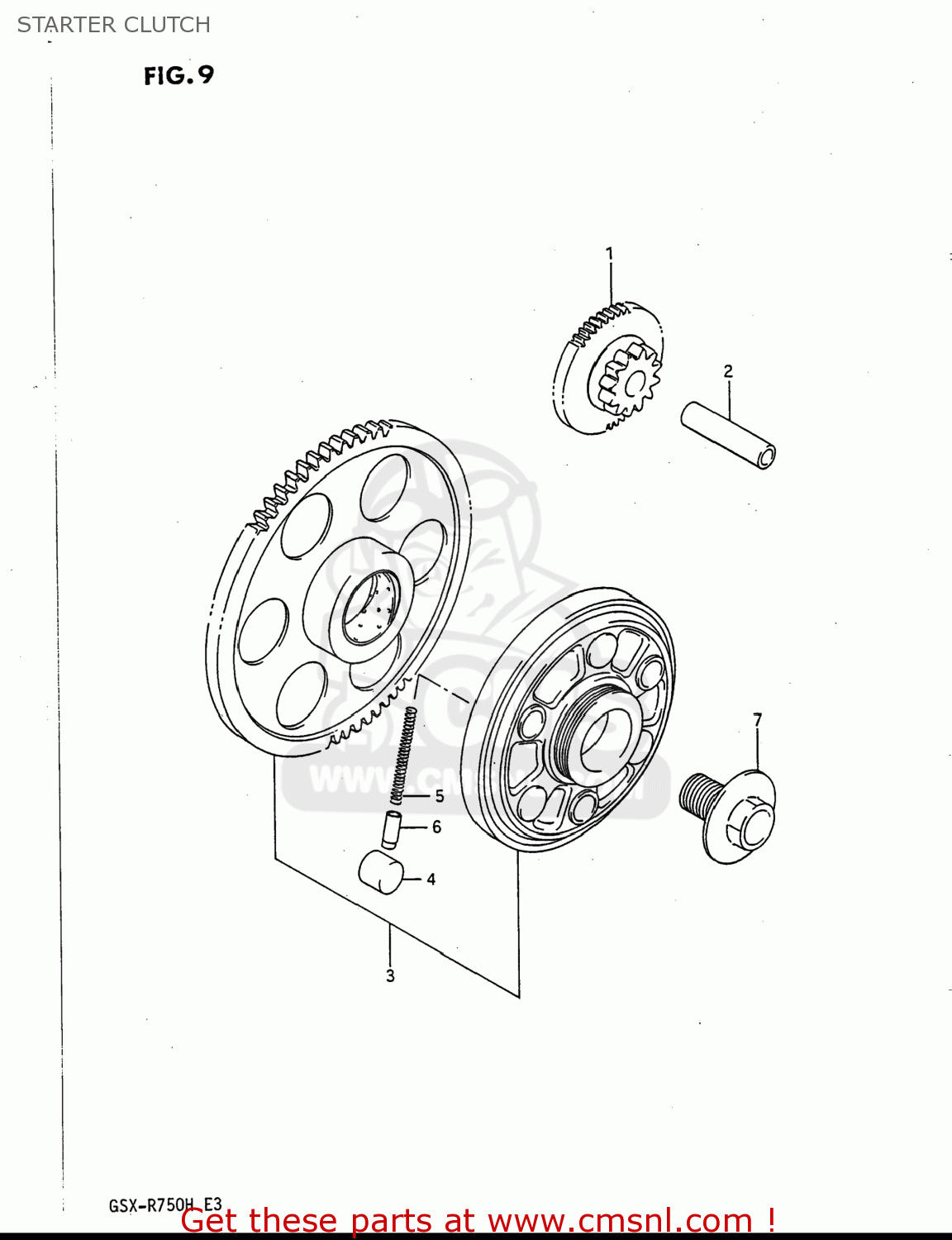

Starter clutch diagram GSXR750 1987 (H) USA (E03)

STARTER CLUTCH GSXR750 1987 (H) USA (E03)

STARTER CLUTCH GSXR750 1987 (H) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1261106B00
ref: 1

GEAR,STARTER IDLE(NT:12,53)

€ 68.50

2

0920611014
ref: 2

PIN(7X11X42)

€ 8.00

3

1260027821
ref: 3
12600-27825

CLUTCH SET,STARTER

€ 205.00

4

0926114001
ref: 4

PIN(14X13)

€ 5.00

5

0944004015
ref: 5

SPRING

€ 2.50

6

1263331000
ref: 6

PIECE,PUSH

€ 9.00

7

0910314005
ref: 7

BOLT(14X21)

€ 17.00
