REAR FENDER
GSXR750 1987 (H) USA (E03)

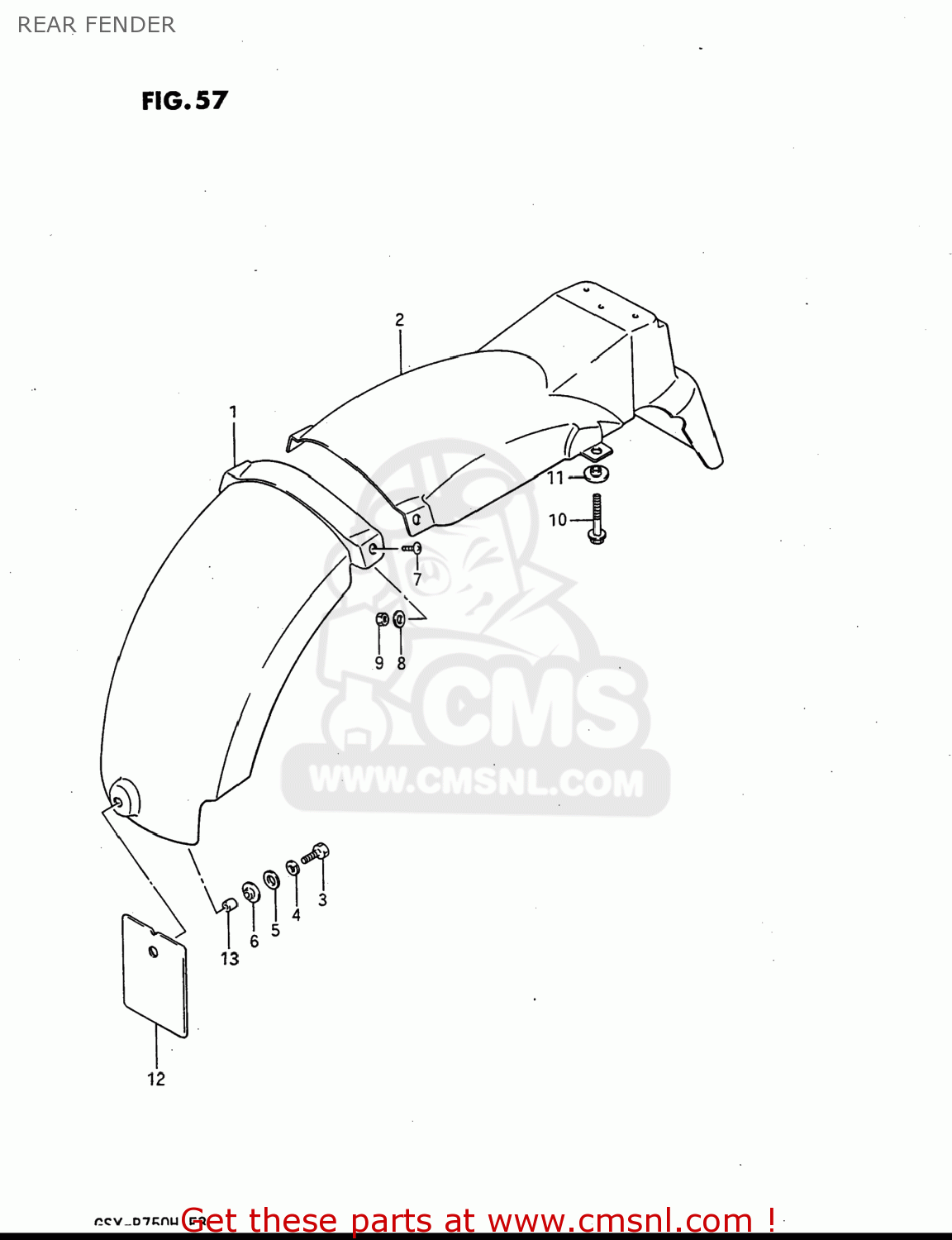

Rear fender diagram GSXR750 1987 (H) USA (E03)
REAR FENDER GSXR750 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6311227A00
ref: 1
BODY,REAR FENDER,FRONT
€ 59.00
2
6311306B00
ref: 2
63113-06X50
FENDER,REAR
€ 83.00
3
0110706307
ref: 3
01500-06307
BOLT 6X30
€ 2.50
4
0832121067
ref: 4
08321-01067
WASHER,LOCK
€ 2.50
5
0916006007
ref: 5
09160-06084
WASHER
€ 2.00
6
0916906038
ref: 6
WASHER
€ 2.50
7
0214206166
ref: 7
02142-0616A
SCREW
€ 2.50
8
0916006006
ref: 8
09160-06084
WASHER
€ 2.00
9
0831921068
ref: 9
08319-2106A
NUT 6MM
€ 2.00
10
0151708555
ref: 10
01550-0855A
BOLT
€ 3.00
11
0916908034
ref: 11
WASHER
€ 2.00
12
6341127A00
ref: 12
MUD GUARD,REAR FENDER,FRONT
€ 9.50
13
0918006030
ref: 13
09180-06310
SPACER (6.8X10X10)
€ 2.00
