COWLING (MODEL J 9SR)

GSXR750 1990 (L) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

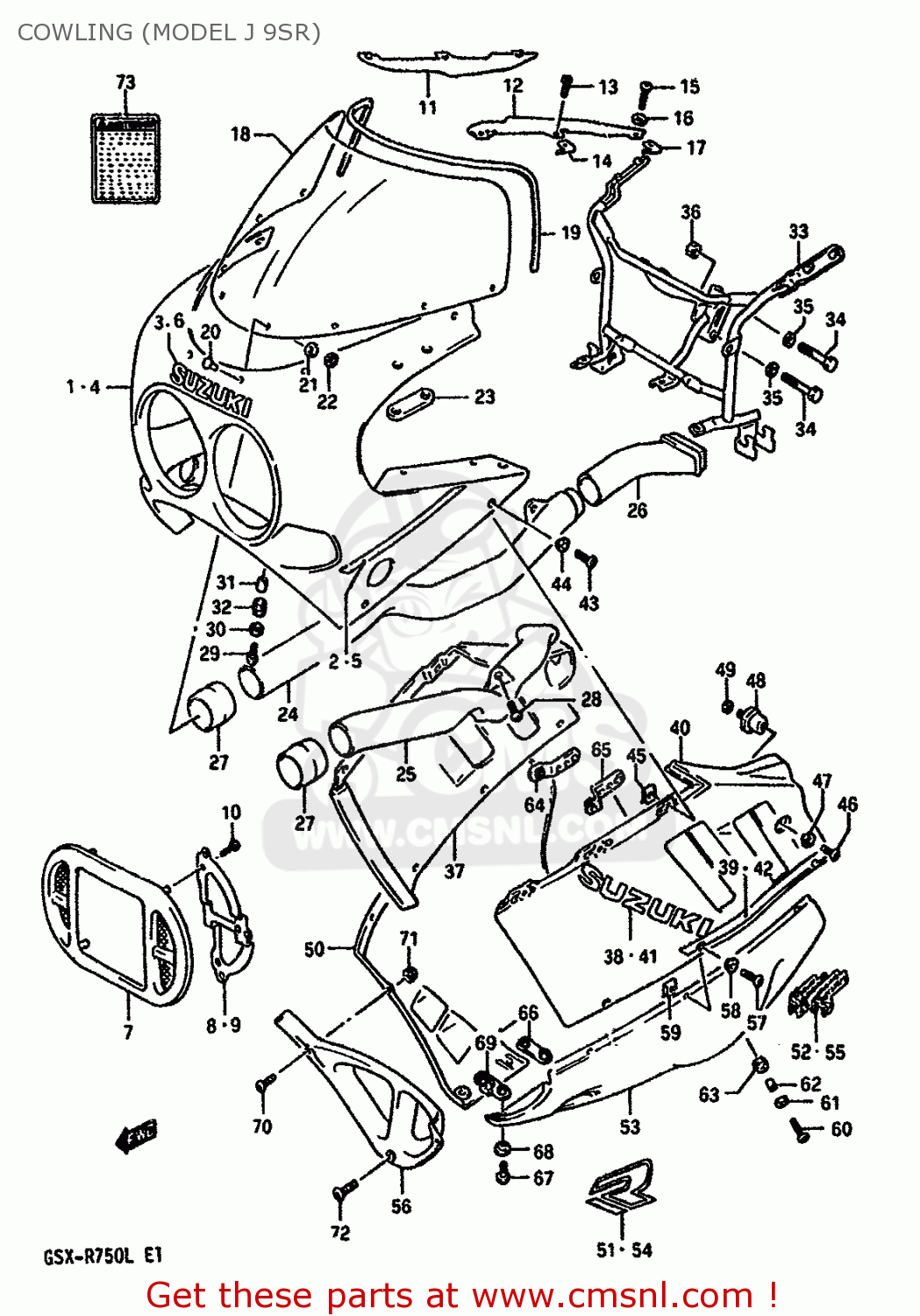

Cowling (model j 9sr) diagram GSXR750 1990 (L) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

COWLING (MODEL J 9SR) GSXR750 1990 (L) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
COWLING (MODEL J 9SR) GSXR750 1990 (L) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
COWLING (MODEL J 9SR) GSXR750 1990 (L) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
9440017C109SR
ref: 1
BODY ASSEMBLY,COWLING
€ 956.50
2
6818017C0133N
ref: 2
TAPE SET,COWLING
6818017C0133N
€ 14.00
3
6827104A0022R
ref: 3
EMBLEM,COWLING,UPPER (W)
6827104A0022R
€ 12.00
4
9440017C209SR
ref: 4
E18
BODY ASSY,COWLING (BLUE/WHITE)
€ 709.00
5
6818017C0133N
ref: 5
E18
TAPE SET,COWLING
6818017C0133N
€ 14.00
6
6827104A0022R
ref: 6
E18
EMBLEM,COWLING,UPPER (W)
6827104A0022R
€ 12.00
7
9446017C0022R
ref: 7
E18
COVER,FRONT (WHITE)
€ 94.00
8
9469117C00
ref: 8
E18
PLATE,COVER RH
9469117C00
€ 13.00
9
9469217C00
ref: 9
E18
PLATE,COVER LH
9469217C00
€ 13.00
10
0354104106
ref: 10
E18
TAPPING SCREW 4X10/A
0354104106
€ 1.50
11
9443217C00
ref: 11
PANEL,COWLING UPPER,RIGHT
9443217C00
€ 12.00
12
9444217C01
ref: 12
COVER,COWLING,LEFT
€ 12.00
13
0913905033
ref: 13
SCREW(5X10)
0913905033
€ 2.00
14
0914805023
ref: 14
NUT
0914805023
€ 1.50
15
0913905025
ref: 15
SCREW(5X14)
0913905025
€ 2.00
16
0916105010
ref: 16
WASHER(5.2X11X1)
0916105010
€ 2.00
17
0914805023
ref: 17
NUT
0914805023
€ 1.50
18-1
9461117C00
ref: 18-1
WINDSCREEN
€ 280.50
18-2
9460017830
ref: 18-2
OPT
CLEAR WINDSCREEN,SMALL
€ 289.50
19-1
9463117C00
ref: 19-1
MOLDING,WINDSCREEN
9463117C00
€ 16.00
19-2
9463117C10
ref: 19-2
E76 (SWEDEN)
MOLDING
€ 0.00
20
9461617C00
ref: 20
PIN,WINDSCREEN
9461617C00
€ 2.50
21
0932004007
ref: 21
CUSHION
0932004007
€ 3.00
22
0914804010
ref: 22
NUT
0914804010
€ 2.00
23
9457612C00
ref: 23
CUSHION,RR VIEW MIRRORR
9457612C00
€ 4.50
24
9445117C00
ref: 24
PIPE,AIR INTAKE,FRONT
9445117C00
€ 31.50
25
9445217C00
ref: 25
PIPE,AIR INTAKE,FRONT
€ 30.00
26
9445317C00
ref: 26
PIPE,AIR INTAKE RR,R
9445317C00
€ 23.50
27
9445417C00
ref: 27
JOINT,AIR INTAKE
€ 9.50
28
0214206207
ref: 28
SCREW
0214206207
€ 2.00
29
0913906028
ref: 29
SCREW(6X20)
0913906028
€ 3.50
30
0916006056
ref: 30
WASHER(6.5X18X1)
0916006056
€ 2.00
31
0918006152
ref: 31
SPACER
0918006152
€ 3.00
32
0932009016
ref: 32
CUSHION
0932009016
€ 2.50
33
9451017C01
ref: 33
BRACE,COWLING
€ 178.50
34
0110708355
ref: 34
BOLT
€ 3.50
35
0832121084
ref: 35
WASHER,LOCK,8.
0832121084
€ 2.50
36
0831012085
ref: 36
NUT ,8MM
0831012085
€ 1.50
37
9443017C009SR
ref: 37
COVER,COWLING SIDE,RIGHT
€ 430.50
38
681124340022R
ref: 38
EMBLEM
681124340022R
€ 9.50
39
6868517C0039K
ref: 39
TAPE,COWLING SIDE STRIPE
€ 14.50
40
9444017C009SR
ref: 40
COVER,COWLING SIDE,LEFT
€ 430.50
41
681124340022R
ref: 41
EMBLEM
681124340022R
€ 9.50
42
6869517C0039K
ref: 42
TAPE,COWLING SIDE STRIPE
€ 15.00
43
0913905032
ref: 43
SCREW(5X18)
0913905032
€ 2.50
44
0916105017
ref: 44
WASHER(5.2X14X1.5)
0916105017
€ 3.00
45
9448432B00
ref: 45
NUT,HEADLAMP HOUSING,UPPER
9448432B00
€ 4.00
46
0913906027
ref: 46
SCREW(6X12)
0913906027
€ 3.00
47
0916106021
ref: 47
WASHER(6.3X16X1.5)
0916106021
€ 2.50
48
9457004A00
ref: 48
CUSHION,COWLING
9457004A00
€ 12.50
49
0832121064
ref: 49
WASHER,LOCK
0832121064
€ 2.00
50
9447017C002GZ
ref: 50
COWLING,UNDER
9447017C002GZ
€ 597.00
51
6819106B002GR
ref: 51
EMBLEM,COWLING UNDER
6819106B002GR
€ 19.00
52
6819206B002GZ
ref: 52
EMBLEM,COWLING,UNDER
6819206B002GZ
€ 12.50
53
9448017C002GZ
ref: 53
COWLING,UNDER LH (BLUE/WHITE)
€ 374.00
54
6819106B002GR
ref: 54
EMBLEM,COWLING UNDER
6819106B002GR
€ 19.00
55
6819206B002GZ
ref: 55
EMBLEM,COWLING,UNDER
6819206B002GZ
€ 12.50
56
9449817C0022R
ref: 56
COWLING,UNDER,CENTER
9449817C0022R
€ 80.50
57
0913905032
ref: 57
SCREW(5X18)
0913905032
€ 2.50
58
0916105017
ref: 58
WASHER(5.2X14X1.5)
0916105017
€ 3.00
59
9448432B00
ref: 59
NUT,HEADLAMP HOUSING,UPPER
9448432B00
€ 4.00
60
0913906028
ref: 60
SCREW(6X20)
0913906028
€ 3.50
61
0916006056
ref: 61
WASHER(6.5X18X1)
0916006056
€ 2.00
62
0918006152
ref: 62
SPACER
0918006152
€ 3.00
63
0932009016
ref: 63
CUSHION
0932009016
€ 2.50
64
9458017C01
ref: 64
BRACKET
€ 6.00
65
9459017C01
ref: 65
BRACE,COWLING UNDER,LH
€ 7.00
66
9449306B00
ref: 66
BRACE,COWLING LWR COVER RR
9449306B00
€ 4.00
67
0913906039
ref: 67
SCREW(6X16)
0913906039
€ 2.50
68
0916106021
ref: 68
WASHER(6.3X16X1.5)
0916106021
€ 2.50
69
9449006B00
ref: 69
BRACE,COWLING LWR COVER
9449006B00
€ 4.50
70
0913905025
ref: 70
SCREW(5X14)
0913905025
€ 2.00
71
0831626055
ref: 71
NUT
0831626055
€ 2.00
72
0913906030
ref: 72
SCREW(6X16)
0913906030
€ 3.50
73-1
6861248B10
ref: 73-1
E4
LABEL (WARNING SCREEN)
6861248B10
€ 6.50
73-2
6861248B00
ref: 73-2
E15,E18,E25,E34,E75,
LABEL (WARNING SCREEN)
6861248B00
€ 6.50
