SIGNAL GENERATOR

GSXR750 1990 (L) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

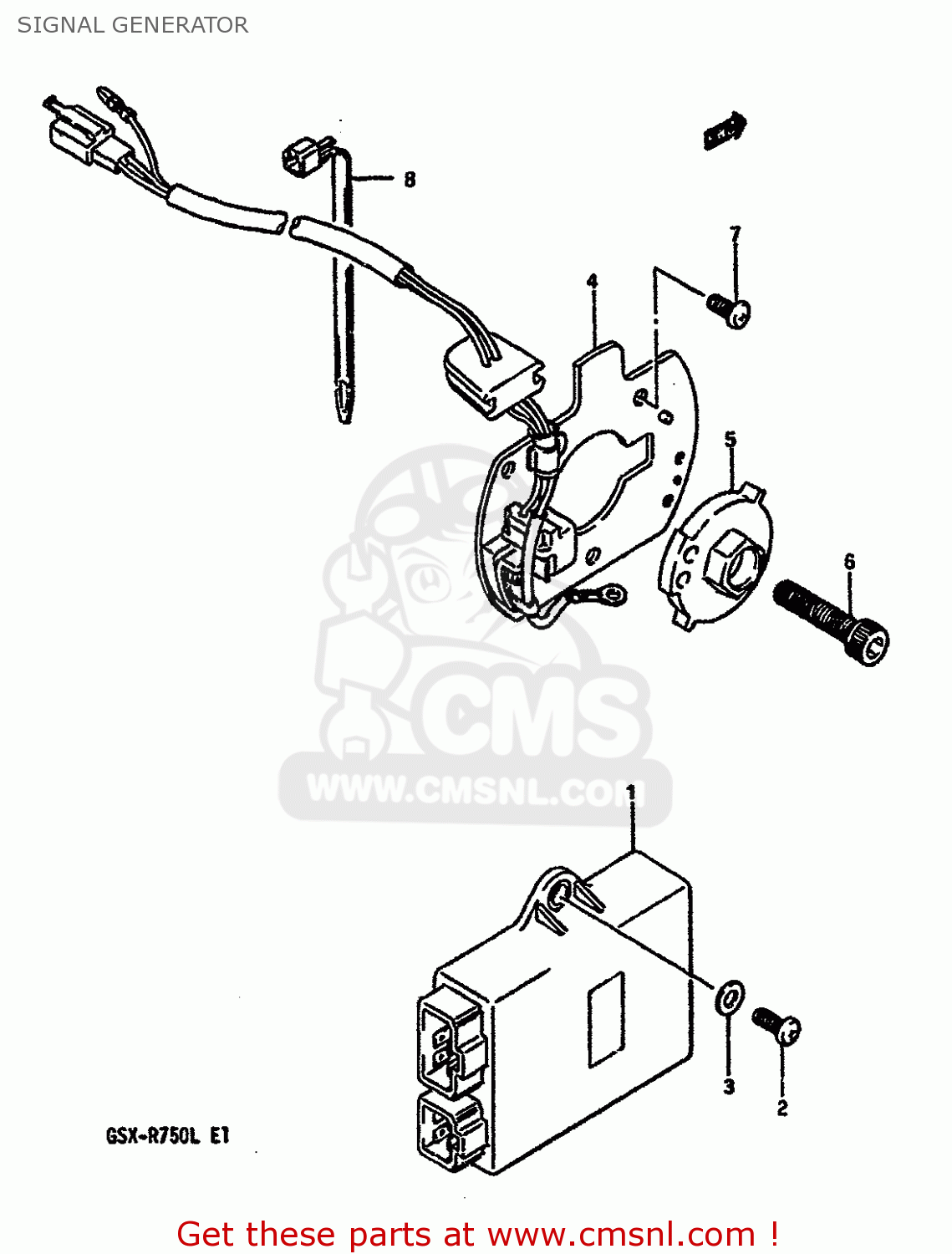

Signal generator diagram GSXR750 1990 (L) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1-1

3290017C00
ref: 1-1
MODEL J/K

IGNITER UNIT

€ 580.50

1-2

3290017D00
ref: 1-2
MODEL L

IGNITOR

€ 514.00

0211206126
ref: 2

SCREW

€ 1.50

0832221066
ref: 3

WASHER, LOWER

€ 2.00

3311017C00
ref: 4

GENERATOR ASSY,SIGNAL

€ 324.00

3312019C00
ref: 5

ROTOR,SIGNAL

€ 182.00

0711008306
ref: 6

BOLT

€ 3.00

0211205107
ref: 7

SCREW

€ 2.00

0940714403
ref: 8

CLAMP(L:125)

€ 2.50
