REAR SWINGING ARM (MODEL L)

GSXR750 1990 (L) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

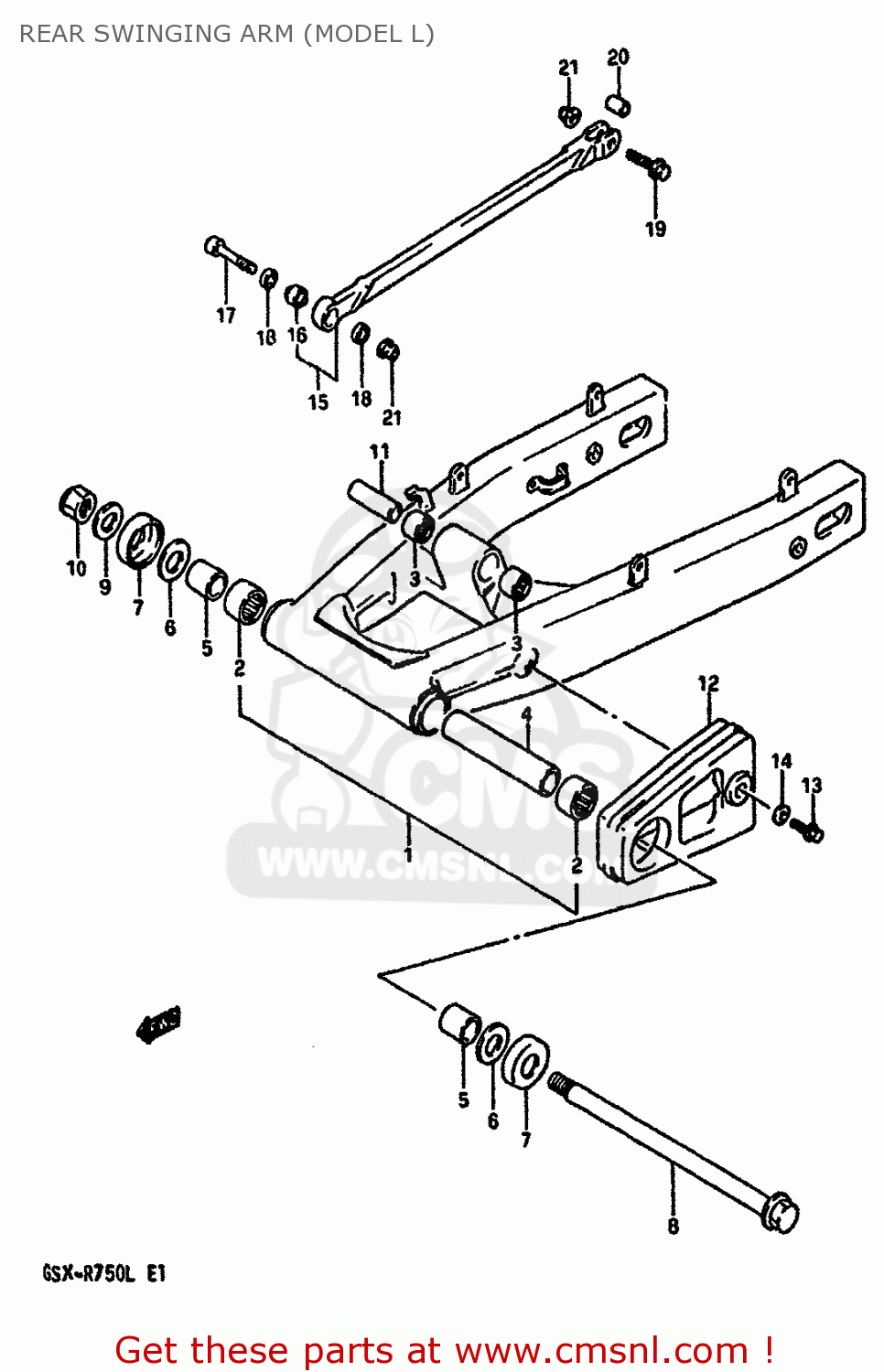

Rear swinging arm (model l) diagram GSXR750 1990 (L) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

REAR SWINGING ARM (MODEL L) GSXR750 1990 (L) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
REAR SWINGING ARM (MODEL L) GSXR750 1990 (L) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
REAR SWINGING ARM (MODEL L) GSXR750 1990 (L) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
6100017D00
ref: 1
SWING ARM ASSEMBLY,REAR
€ 1,130.00
2
0926325024
ref: 2
BEARING(25X33X30)
0926325024
€ 31.50
3
0926320071
ref: 3
BEARING(20X27X23.5)
0926320071
€ 21.50
4
6128217C00
ref: 4
SPACER,RR SWGARM PIVOT CTR
6128217C00
€ 11.50
5
6125117C00
ref: 5
SPACER,RR SWGARM PIVOT BERRING
6125117C00
€ 36.00
6-1
0821120381
ref: 6-1
WASHER
0821120381
€ 3.00
6-2
0821120382
ref: 6-2
WASHER
0821120382
€ 3.00
7
6126217C00
ref: 7
DUST SEAL,RR SWGARM PIVOT
6126217C00
€ 8.00
8
6121140C00
ref: 8
SHAFT,REAR SWING ARM PIVOT
6121140C00
€ 90.50
9
0832211188
ref: 9
WASHER
0832211188
€ 2.50
10
0915918007
ref: 10
NUT
0915918007
€ 14.00
11
6121340C30
ref: 11
BOLT,RR SWGARM PIVOT
6121340C30
€ 63.50
12
6121440C30
ref: 12
NUT,REAR SWING ARM PIVOT
€ 16.50
13
6231717C00
ref: 13
SPACER,RR CUSHION LEVER
6231717C00
€ 26.00
14
6127340C00
ref: 14
BUFFER,CHAIN TOUCH DEFENSE
6127340C00
€ 41.00
15
0911606111
ref: 15
BOLT 6X20,WITH PLAIN WASHER
€ 2.00
16
0918006002
ref: 16
SPACER
0918006002
€ 2.00
17
6430007810
ref: 17
TORQUE LINK SET,REAR
€ 165.00
18
6435240411
ref: 18
SPHERICAL BEARING,TORQUE
€ 69.50
19
0910608048
ref: 19
BOLT(8X48)
0910608048
€ 4.50
20
6433940410
ref: 20
6433940410
21
0910308178
ref: 21
BOLT(8X38)
0910308178
€ 5.00
22
6433620A00
ref: 22
SPACER,RR TORQUE LINK RR
6433620A00
€ 8.00
23
0831931087
ref: 23
NUT
0831931087
€ 2.50
