COWLING (MODEL K 3CG)

GSXR750 1990 (L) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

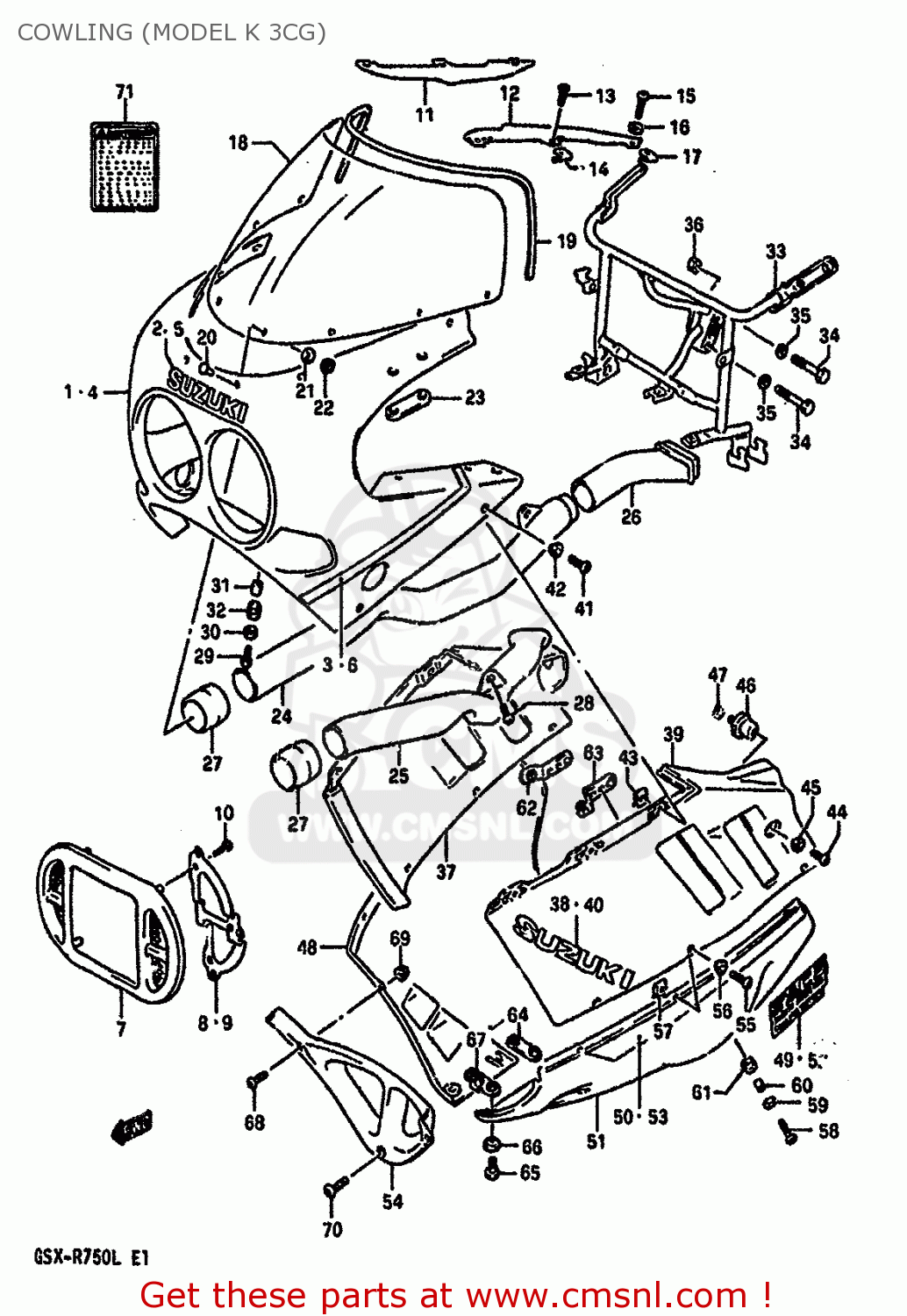

Cowling (model k 3cg) diagram GSXR750 1990 (L) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

COWLING (MODEL K 3CG) GSXR750 1990 (L) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
COWLING (MODEL K 3CG) GSXR750 1990 (L) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
COWLING (MODEL K 3CG) GSXR750 1990 (L) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
9440018C203CG
ref: 1-1
CLEAR COATING
BODY ASSY,COWLIN (BLACK/GRAY)
€ 628.50
1-2
9440018C213CG
ref: 1-2
NO CLEAR COATING
BODY ASSY,COWLING (BLACK/GRAY)
€ 628.50
2
6818505C10742
ref: 2
EMBLEM,COWLING FR
6818505C10742
€ 9.00
3
6827017C0033J
ref: 3
TAPE SET
€ 33.50
4-1
9440018C503CG
ref: 4-1
E18,CLEAR COATING
BODY ASSY,COWLING (BLACK/GRAY)
€ 0.00
4-2
9440018C513CG
ref: 4-2
E18,NO CLEAR COATING
BODY ASSY,COWLING (BLACK/GRAY)
€ 0.00
5
6818505C10742
ref: 5
E18
EMBLEM,COWLING FR
6818505C10742
€ 9.00
6
6827017C0033J
ref: 6
E18
TAPE SET
€ 33.50
7-1
9446017C0033J
ref: 7-1
E18,CLEAR COATING
COVER,FRONT (BLACK)
9446017C0033J
€ 94.00
7-2
9446017C0133J
ref: 7-2
E18,NO CLEAR COATING
COVER,FRONT (BLACK)
€ 94.00
8
9469117C00
ref: 8
E18
PLATE,COVER RH
9469117C00
€ 13.00
9
9469217C00
ref: 9
E18
PLATE,COVER LH
9469217C00
€ 13.00
10
0354104106
ref: 10
E18
TAPPING SCREW 4X10/A
0354104106
€ 1.50
11
9443217C00
ref: 11
PANEL,COWLING UPPER,RIGHT
9443217C00
€ 12.00
12
9444217C01
ref: 12
COVER,COWLING,LEFT
€ 12.00
13
0913905033
ref: 13
SCREW(5X10)
0913905033
€ 2.00
14
0914805023
ref: 14
NUT
0914805023
€ 1.50
15
0913905025
ref: 15
SCREW(5X14)
0913905025
€ 2.00
16
0916105010
ref: 16
WASHER(5.2X11X1)
0916105010
€ 2.00
17
0914805023
ref: 17
NUT
0914805023
€ 1.50
18-1
9461117C00
ref: 18-1
WINDSCREEN
€ 280.50
18-2
9460017830
ref: 18-2
OPT
CLEAR WINDSCREEN,SMALL
€ 289.50
19-1
9463117C00
ref: 19-1
MOLDING,WINDSCREEN
9463117C00
€ 16.00
19-2
9463117C10
ref: 19-2
E17
MOLDING
€ 0.00
20
9461617C00
ref: 20
PIN,WINDSCREEN
9461617C00
€ 2.50
21
0932004007
ref: 21
CUSHION
0932004007
€ 3.00
22
0914804010
ref: 22
NUT
0914804010
€ 2.00
23
9457612C00
ref: 23
CUSHION,RR VIEW MIRRORR
9457612C00
€ 4.50
24
9445117C00
ref: 24
PIPE,AIR INTAKE,FRONT
9445117C00
€ 31.50
25
9445217C00
ref: 25
PIPE,AIR INTAKE,FRONT
€ 30.00
26
9445317C00
ref: 26
PIPE,AIR INTAKE RR,R
9445317C00
€ 23.50
27
9445417C00
ref: 27
JOINT,AIR INTAKE
€ 9.50
28
0214206207
ref: 28
SCREW
0214206207
€ 2.00
29
0913906056
ref: 29
SCREW(6X20)
0913906056
€ 3.00
30
0916006056
ref: 30
WASHER(6.5X18X1)
0916006056
€ 2.00
31
0918006152
ref: 31
SPACER
0918006152
€ 3.00
32
0932009016
ref: 32
CUSHION
0932009016
€ 2.50
33
9451017C13
ref: 33
BRACE,COWLING
€ 184.00
34
0110708355
ref: 34
BOLT
€ 3.50
35
0832121084
ref: 35
WASHER,LOCK,8.
0832121084
€ 2.50
36
0831012085
ref: 36
NUT ,8MM
0831012085
€ 1.50
37-1
9443017C503CG
ref: 37-1
CLEAR COATING
COVER,SIDE RH (BLACK/GRAY)
€ 406.00
37-2
9443017C513CG
ref: 37-2
NO CLEAR COATING
COVER,SIDE RH (BLACK/GRAY)
€ 406.00
38
6868117C00742
ref: 38
EMBLEM,COWLING SIDE
€ 13.50
39-1
9444017C503CG
ref: 39-1
CLEAR COATING
COVER,SIDE LH (BLACK/GRAY)
€ 406.00
39-2
9444017C513CG
ref: 39-2
NO CLEAR COATING
COVER,SIDE LH (BLACK/GRAY)
€ 406.00
40
6868117C00742
ref: 40
EMBLEM,COWLING SIDE
€ 13.50
41
0913905032
ref: 41
SCREW(5X18)
0913905032
€ 2.50
42
0916105017
ref: 42
WASHER(5.2X14X1.5)
0916105017
€ 3.00
43
9448432B00
ref: 43
NUT,HEADLAMP HOUSING,UPPER
9448432B00
€ 4.00
44
0913906027
ref: 44
SCREW(6X12)
0913906027
€ 3.00
45
0916106021
ref: 45
WASHER(6.3X16X1.5)
0916106021
€ 2.50
46
9457004A00
ref: 46
CUSHION,COWLING
9457004A00
€ 12.50
47
0832121064
ref: 47
WASHER,LOCK
0832121064
€ 2.00
48-1
9447018C203CH
ref: 48-1
CLEAR COATING
COWLING,UNDER RH (BLACK/SILVER)
9447018C203CH
€ 170.00
48-2
9447018C213CH
ref: 48-2
NO CLEAR COATING
COWLING,UNDER RH (BLACK/SILVER)
€ 170.00
49
6818117C003CS
ref: 49
EMBLEM
6818117C003CS
€ 5.50
50
6818517C1017U
ref: 50
TAPE,RH
€ 17.00
51-1
9448018C203CH
ref: 51-1
CLEAR COATING
COWLING,UNDER LH (BLACK/SILVER)
€ 567.00
51-2
9448018C213CH
ref: 51-2
NO CLEAR COATING
COWLING,UNDER LH (BLACK/SILVER)
€ 567.00
52
6818117C003CS
ref: 52
EMBLEM
6818117C003CS
€ 5.50
53
6819517C1017U
ref: 53
TAPE,LH
€ 16.50
54-1
9449817C0033J
ref: 54-1
CLEAR COATING
COWLING,UNDER,CENTER
€ 80.50
54-2
9449817C01
ref: 54-2
NO CLEAR COATING
COWLING,UNDER,CENTER
€ 80.50
55
0913905032
ref: 55
SCREW(5X18)
0913905032
€ 2.50
56
0916105017
ref: 56
WASHER(5.2X14X1.5)
0916105017
€ 3.00
57
9448432B00
ref: 57
NUT,HEADLAMP HOUSING,UPPER
9448432B00
€ 4.00
58
0913906028
ref: 58
SCREW(6X20)
0913906028
€ 3.50
59
0916006056
ref: 59
WASHER(6.5X18X1)
0916006056
€ 2.00
60
0918006152
ref: 60
SPACER
0918006152
€ 3.00
61
0932009016
ref: 61
CUSHION
0932009016
€ 2.50
62
9458017C01
ref: 62
BRACKET
€ 6.00
63
9459017C01
ref: 63
BRACE,COWLING UNDER,LH
€ 7.00
64
9449306B00
ref: 64
BRACE,COWLING LWR COVER RR
9449306B00
€ 4.00
65
0913906039
ref: 65
SCREW(6X16)
0913906039
€ 2.50
66
0916106021
ref: 66
WASHER(6.3X16X1.5)
0916106021
€ 2.50
67
9449006B00
ref: 67
BRACE,COWLING LWR COVER
9449006B00
€ 4.50
68
0913905025
ref: 68
SCREW(5X14)
0913905025
€ 2.00
69
0831626055
ref: 69
NUT
0831626055
€ 2.00
70
0913906030
ref: 70
SCREW(6X16)
0913906030
€ 3.50
71-1
6861248B10
ref: 71-1
E4
LABEL (WARNING SCREEN)
6861248B10
€ 6.50
71-2
6861248B00
ref: 71-2
LABEL (WARNING SCREEN)
6861248B00
€ 6.50
