REAR FENDER (MODEL L)

GSXR750 1990 (L) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

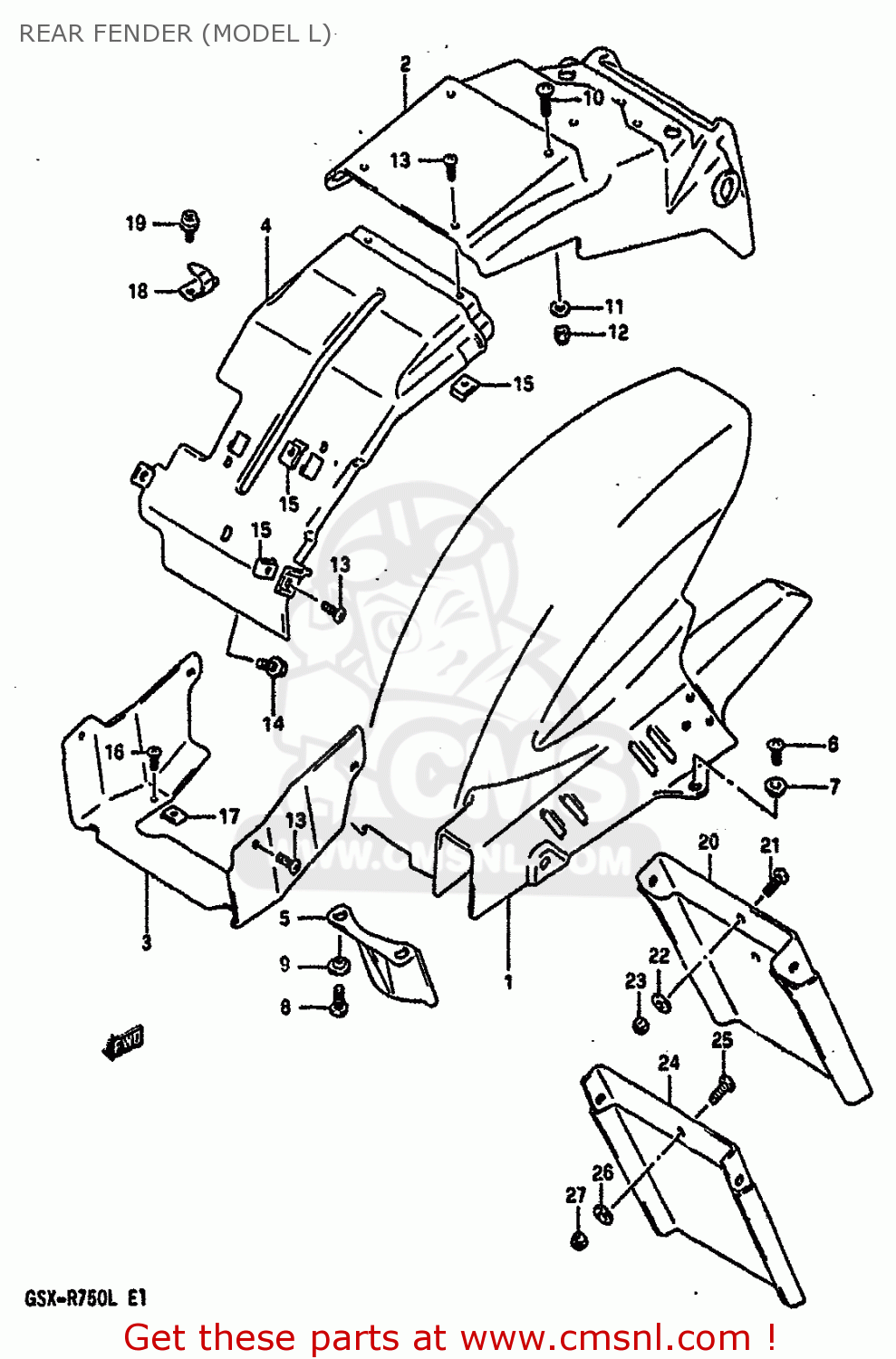

Rear fender (model l) diagram GSXR750 1990 (L) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

REAR FENDER (MODEL L) GSXR750 1990 (L) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
REAR FENDER (MODEL L) GSXR750 1990 (L) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
REAR FENDER (MODEL L) GSXR750 1990 (L) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
6311040C00
ref: 1
FENDER,RR LWR
6311040C00
€ 123.00
2-1
6311217C00
ref: 2-1
FENDER,REAR
€ 63.00
2-2
6311217C10
ref: 2-2
E15,E16,E18,E21,E53
FENDER,REAR UPPER
€ 63.00
2-3
6311217C20
ref: 2-3
E17,E22,E39
FENDER,REAR UPPER
€ 63.00
3
6311340C00
ref: 3
FENDER,REAR
6311340C00
€ 28.00
4
6311417C00
ref: 4
FENDER,RR UPR FR NO.2
6311417C00
€ 33.50
5
6341142A00
ref: 5
GUARD,RR UNIT MUD
6341142A00
€ 3.50
6
0214206104
ref: 6
SCREW
0214206104
€ 2.00
7
0916906060
ref: 7
WASHER
0916906060
€ 2.00
8
0214206167
ref: 8
SCREW
0214206167
€ 2.00
9
0916906025
ref: 9
WASHER,LOCK
€ 3.00
10
0214206164
ref: 10
SCREW
0214206164
€ 2.50
11
0916006006
ref: 11
WASHER
0916006006
€ 2.00
12
0831921066
ref: 12
NUT
0831921066
€ 2.00
13
0214205124
ref: 13
SCREW, FRONT & REAR
€ 1.50
14
0151706105
ref: 14
BOLT
€ 2.50
15
9448432B00
ref: 15
NUT,HEADLAMP HOUSING,UPPER
9448432B00
€ 4.00
16
0214205124
ref: 16
SCREW, FRONT & REAR
€ 1.50
17
9448432B00
ref: 17
NUT,HEADLAMP HOUSING,UPPER
9448432B00
€ 4.00
18
9572117C02
ref: 18
HOLDER,HELMET
€ 4.00
19
0712006125
ref: 19
BOLT
€ 3.50
20-1
6331117C00
ref: 20-1
E16,E21,E53
EXTENSION, REAR FENDER
6331117C00
€ 39.00
20-2
6331117C10
ref: 20-2
E17,E22,E39
EXTENSION,REAR FENDER
€ 39.00
20-3
6331117C20
ref: 20-3
E15,E18
EXTENSION, REAR FENDER
€ 29.00
21
0214206164
ref: 21
E15,E16,E17,E18,E21
SCREW
0214206164
€ 2.50
22
0916006006
ref: 22
E15,E16,E17,E18,E21
WASHER
0916006006
€ 2.00
23
0831921066
ref: 23
E15,E16,E17,E18,E21
NUT
0831921066
€ 2.00
24
6333148B00
ref: 24
E15,E18
MUD GUARD,REAR FENDER
€ 31.00
25
0214206164
ref: 25
E15,E18
SCREW
0214206164
€ 2.50
26
0916006006
ref: 26
E15,E18
WASHER
0916006006
€ 2.00
27
0831921066
ref: 27
E15,E18
NUT
0831921066
€ 2.00
