FOOTREST (MODEL L)

GSXR750 1990 (L) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

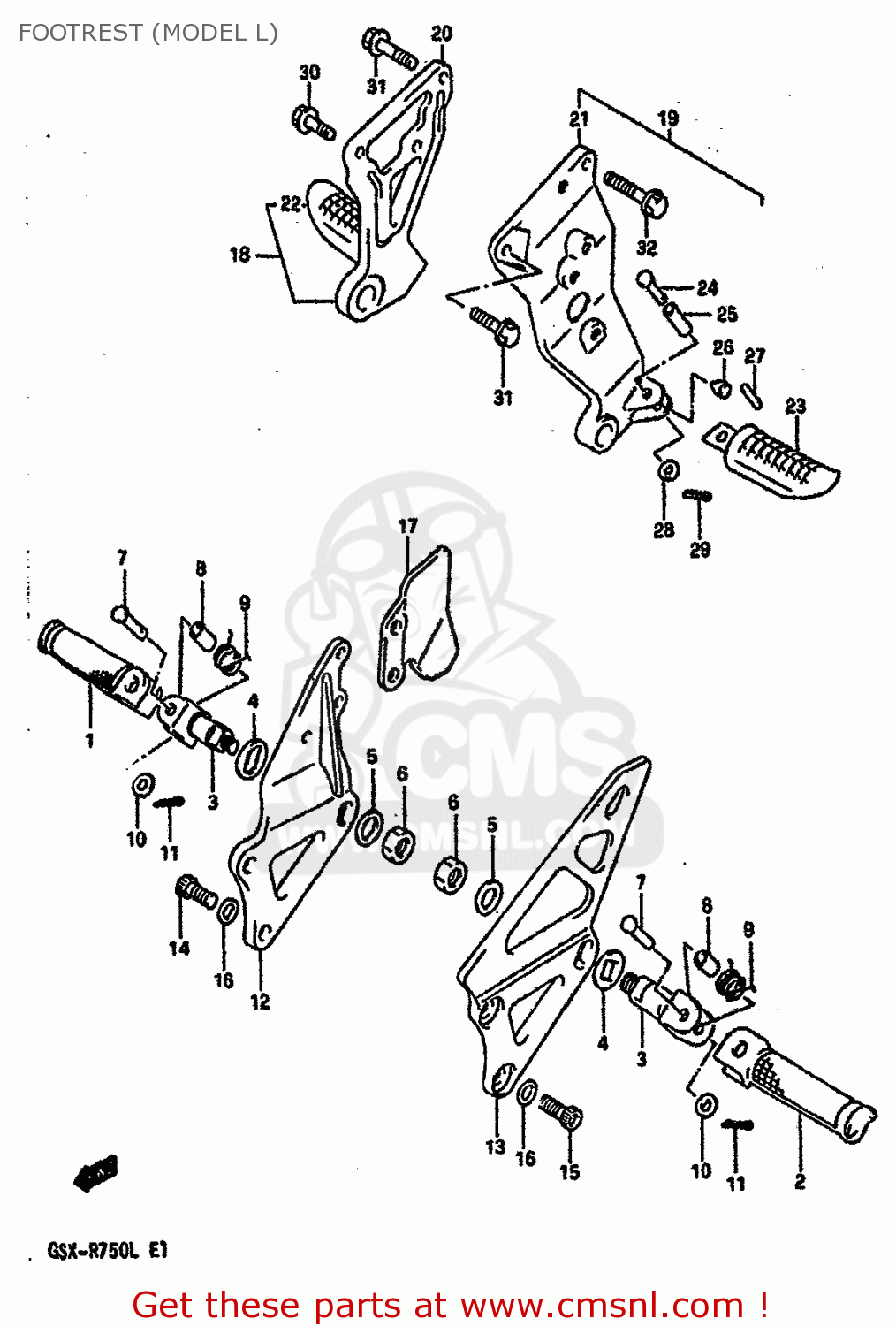

Footrest (model l) diagram GSXR750 1990 (L) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

FOOTREST (MODEL L) GSXR750 1990 (L) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
FOOTREST (MODEL L) GSXR750 1990 (L) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
FOOTREST (MODEL L) GSXR750 1990 (L) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
4351117C02
ref: 1
BAR,FOOTREST,R
4351117C02
€ 48.50
2
4352117C02
ref: 2
BAR,FOOTREST,L
4352117C02
€ 48.50
3
4353017C01
ref: 3
BOSS,FOOTREST
4353017C01
€ 43.00
4
4321317C01
ref: 4
PLATE,FOOTREST INNER
4321317C01
€ 4.50
5
4321417C01
ref: 5
WASHER,FR FOOTREST
4321417C01
€ 52.50
6
0831022127
ref: 6
NUT 12MM
€ 3.00
7
0920008057
ref: 7
PIN
0920008057
€ 3.00
8
0918008149
ref: 8
SPACER(8.1X12X22)
0918008149
€ 7.00
9
0944819020
ref: 9
SPRING
0944819020
€ 3.50
10
0832211088
ref: 10
WASHER
0832211088
€ 2.00
11
0411125158
ref: 11
PIN 20X15
0411125158
€ 1.50
12
4351117D00
ref: 12
BAR,FRONT FOOTREST
€ 133.50
13
4352217D00
ref: 13
BRACKET,FOOTREST,LEFT
4352217D00
€ 131.00
14
4352917C10
ref: 14
BOLT,FOOTREST BRACKET
€ 3.50
15
4352940C00
ref: 15
BOLT,FRONT FOOTREST
€ 5.50
16
0916410005
ref: 16
WASHER
0916410005
€ 6.50
17
4358640C01
ref: 17
GUARD,FRONT FOOTREST,RIGHT
4358640C01
€ 50.00
18
4360017D00
ref: 18
FOOTREST ASSEMBLY,PILLION
€ 138.50
19
4370017D00
ref: 19
FOOTREST ASSEMBLY,PILLION
€ 102.50
20
4381017D00
ref: 20
BRACKET COMP,PILLION FOOT
4381017D00
€ 90.50
21
4382117D00
ref: 21
BRACKET,PILLION FOOTREST
€ 92.50
22
4361132C00
ref: 22
BAR,PILLION FOOTREST R
4361132C00
€ 31.00
23
4362132C00
ref: 23
BAR,PILLION FOOTREST L
4362132C00
€ 31.00
24
0920008035
ref: 24
PIN
0920008035
€ 6.50
25
0918008149
ref: 25
SPACER(8.1X12X22)
0918008149
€ 7.00
26
4369117C00
ref: 26
CUSHION,FOOTREST HOLDER
4369117C00
€ 6.00
27
4361217D00
ref: 27
ROLLER,FOOTREST HOLDER
4361217D00
€ 2.50
28
0832221088
ref: 28
WASHER
0832221088
€ 2.00
29
0411120208
ref: 29
PIN 20X20
0411120208
€ 1.50
30
0151708205
ref: 30
BOLT
€ 3.00
31
0151708254
ref: 31
BOLT
0151708254
€ 2.50
32
0151708304
ref: 32
BOLT
0151708304
€ 3.00
27
0151708205
ref: 27
BOLT
€ 3.00
28
0151708254
ref: 28
BOLT
0151708254
€ 2.50
29
0151708304
ref: 29
BOLT
0151708304
€ 3.00
