TRANSMISSION

GSXR750 1990 (L) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

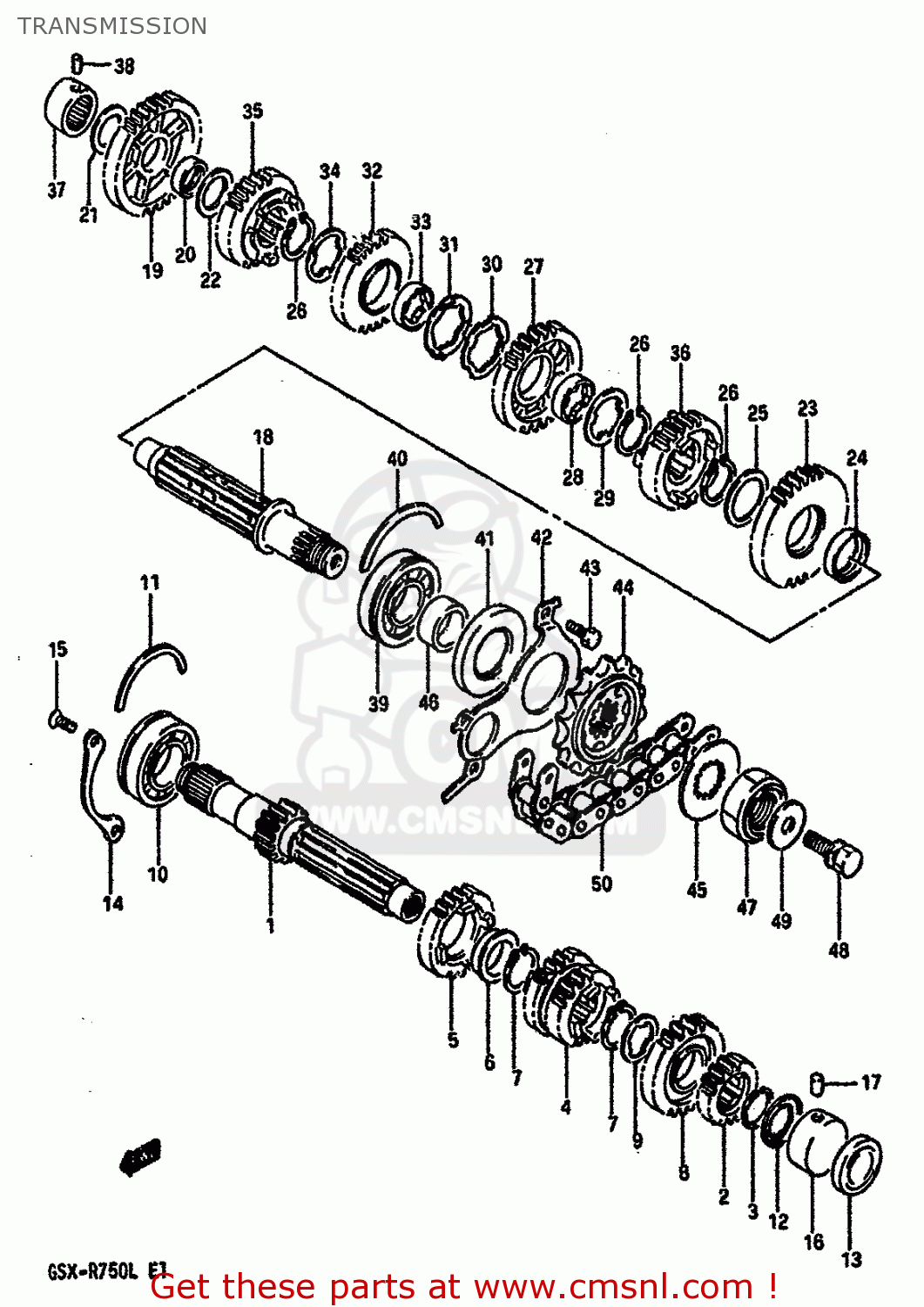

Transmission diagram GSXR750 1990 (L) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

TRANSMISSION GSXR750 1990 (L) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
TRANSMISSION GSXR750 1990 (L) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
TRANSMISSION GSXR750 1990 (L) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
2412117C02
ref: 1
SHAFT,COUNTER(NT:13)
€ 195.00
2
2422127A01
ref: 2
GEAR,2ND DRIVE(NT:16)
2422127A01
€ 93.00
3
0938025013
ref: 3
CIRCLIP
0938025013
€ 3.00
4
2423127A00
ref: 4
GEAR,3RD & 4TH DRIVE(NT:17/20)
2423127A00
€ 162.00
5
2425127A01
ref: 5
GEAR,5TH DRIVE(NT:22)
2425127A01
€ 91.00
6
0930125001
ref: 6
BUSHING
€ 12.50
7
0938025003
ref: 7
RING,SNAP
0938025003
€ 3.00
8
2426117C00
ref: 8
GEAR,SIXTH DRIVE
€ 119.50
9
0916725012
ref: 9
WASHER,LOCK
0916725012
€ 3.50
10
0926225051
ref: 10
BEARING(25X62X17)
0926225051
€ 59.50
11
0939062006
ref: 11
C-RING
0939062006
€ 5.00
12
0928520006
ref: 12
SEAL,OIL(20X31.2X2.7)
0928520006
€ 7.00
13
2311627A30
ref: 13
CAP,COUNTER SHAFT,L
2311627A30
€ 10.00
14
2474127A00
ref: 14
RETAINER,CNTR SHAFT BEARING
2474127A00
€ 7.00
15
0212206167
ref: 15
SCREW
0212206167
€ 2.00
16
0926320069
ref: 16
BEARING(20X34X17.5)
0926320069
€ 39.50
17
0422107129
ref: 17
PIN
0422107129
€ 1.50
18-1
2413127A02
ref: 18-1
MODEL J/K
SHAFT,DRIVE
2413127A02
€ 188.50
18-2
2413117D00
ref: 18-2
MODEL L
SHAFT,DRIVE
€ 218.00
19
2431127A01
ref: 19
GEAR,1ST DRIVEN(NT:36)
2431127A01
€ 145.00
20
0930022008
ref: 20
BUSH(22X26X9)
0930022008
€ 10.50
21
0821120341
ref: 21
WASHER
0821120341
€ 2.00
22
0821122341
ref: 22
WASHER
0821122341
€ 3.00
23-1
2432127A01
ref: 23-1
MODEL J/K
GEAR,SECOND DRIVEN
€ 143.50
23-2
2432127A02
ref: 23-2
MODEL L
GEAR,2ND DRIVEN(NT:33)
2432127A02
€ 143.50
24
0930028001
ref: 24
BUSH(28X32X8)
0930028001
€ 11.50
25
0821128381
ref: 25
WASHER, THRUST
0821128381
€ 3.50
26
0833111289
ref: 26
CIRCLIP
€ 2.50
27
2433127A00
ref: 27
GEAR,3RD DRIVEN(NT:28)
2433127A00
€ 129.00
28
2433227A00
ref: 28
BUSH
2433227A00
€ 13.50
29
0916728001
ref: 29
WASHER,LOCK
0916728001
€ 3.00
30
0916728002
ref: 30
WASHER,LOCK
0916728002
€ 3.00
31
0916928001
ref: 31
WASHER
0916928001
€ 3.00
32
2434127A00
ref: 32
GEAR,FOURTH DRIVEN
€ 80.00
33
2433227A00
ref: 33
BUSH
2433227A00
€ 13.50
34
0916728001
ref: 34
WASHER,LOCK
0916728001
€ 3.00
35
2435127A00
ref: 35
GEAR,5TH DRIVEN(NT:27)
2435127A00
€ 117.00
36
2436127A02
ref: 36
GEAR,6TH DRIVEN
2436127A02
€ 114.00
37
0926320040
ref: 37
BEARING(20X34X20)
0926320040
€ 42.50
38
0422107209
ref: 38
PIN
0422107209
€ 1.50
39
0926225105
ref: 39
BEARING(25X62X17)
0926225105
€ 59.50
40
0939062006
ref: 40
C-RING
0939062006
€ 5.00
41
0928334005
ref: 41
SEAL,OIL(34X62X6)
0928334005
€ 14.50
42
2475127A01
ref: 42
RETAINER,DRIVE SHAFT OIL SEAL
2475127A01
€ 8.00
43
0110706107
ref: 43
BOLT
€ 2.00
44
2751017C00
ref: 44
SPROCKET,ENGINE (NT:15)
€ 67.00
45
0821125402
ref: 45
WASHER,THRUST
0821125402
€ 3.00
46-1
0918025091
ref: 46-1
MODEL J/K
SPACER(25X34X17.5)
0918025091
€ 16.00
46-2
0918025096
ref: 46-2
MODEL L
SPACER,ENGINE SPROCKET
0918025096
€ 10.00
47
0915920004
ref: 47
NUT
0915920004
€ 12.00
48
0114706168
ref: 48
BOLT
€ 2.50
49
0821206222
ref: 49
WASHER
0821206222
€ 1.50
50-1
2760017C20108
ref: 50-1
CHAIN ASSEMBLY,DRIVE 50GSV
€ 258.00
50-2
2760017DZ0108
ref: 50-2
E24,SPECIAL VERSION
CHAIN,DRIVE (108LE) RK
€ 258.00
