2ND AIR

GSXR750 2006 (K6) USA (E03)

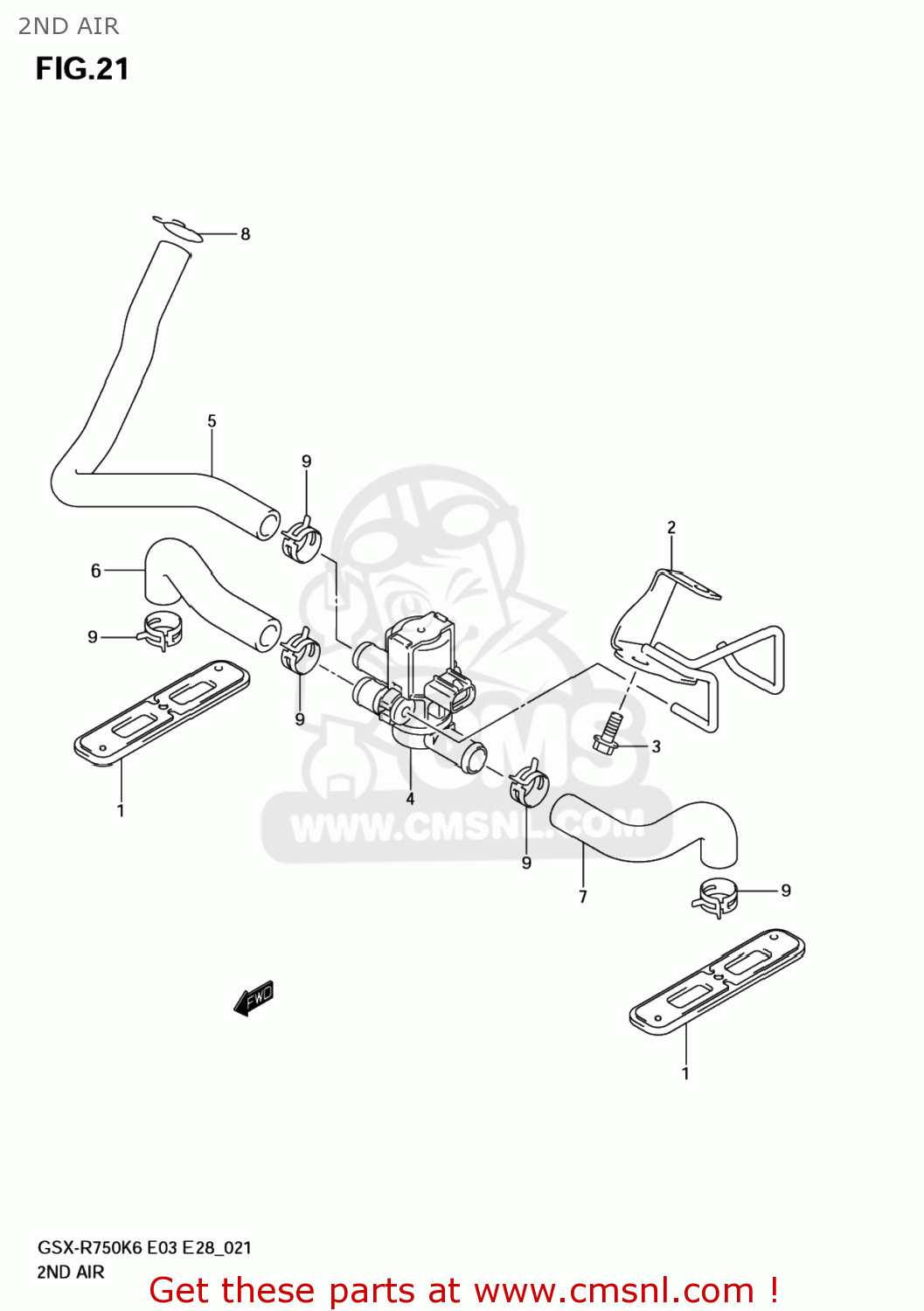

2nd air diagram GSXR750 2006 (K6) USA (E03)

2ND AIR GSXR750 2006 (K6) USA (E03)

2ND AIR GSXR750 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1845001H00E00
ref: 1
18450-01H00

VALVE ASSY,2ND

€ 36.50

2

1861001H00A05
ref: 2
18610-01H00

BRACKET COMP,2

€ 19.00

3

015500616A
ref: 3

BOLT

€ 2.50

4

1851029G00E00
ref: 4
18510-29G00

VALVE ASSY,AIR

€ 89.00

5

1871101H00
ref: 5

HOSE,2ND AIR CLEANER

€ 19.50

6

1846101H00
ref: 6

HOSE,2ND AIR VALVE,R

€ 10.00

7

1847101H00
ref: 7

HOSE,2ND AIR VALVE,L

€ 12.50

8

0940115101A05
ref: 8
09401-15101

CLIP

€ 2.00

9

0940117401C05
ref: 9
09401-17401

CLIP

€ 2.00
