REAR CUSHION LEVER
GSXR750 2006 (K6) USA (E03)

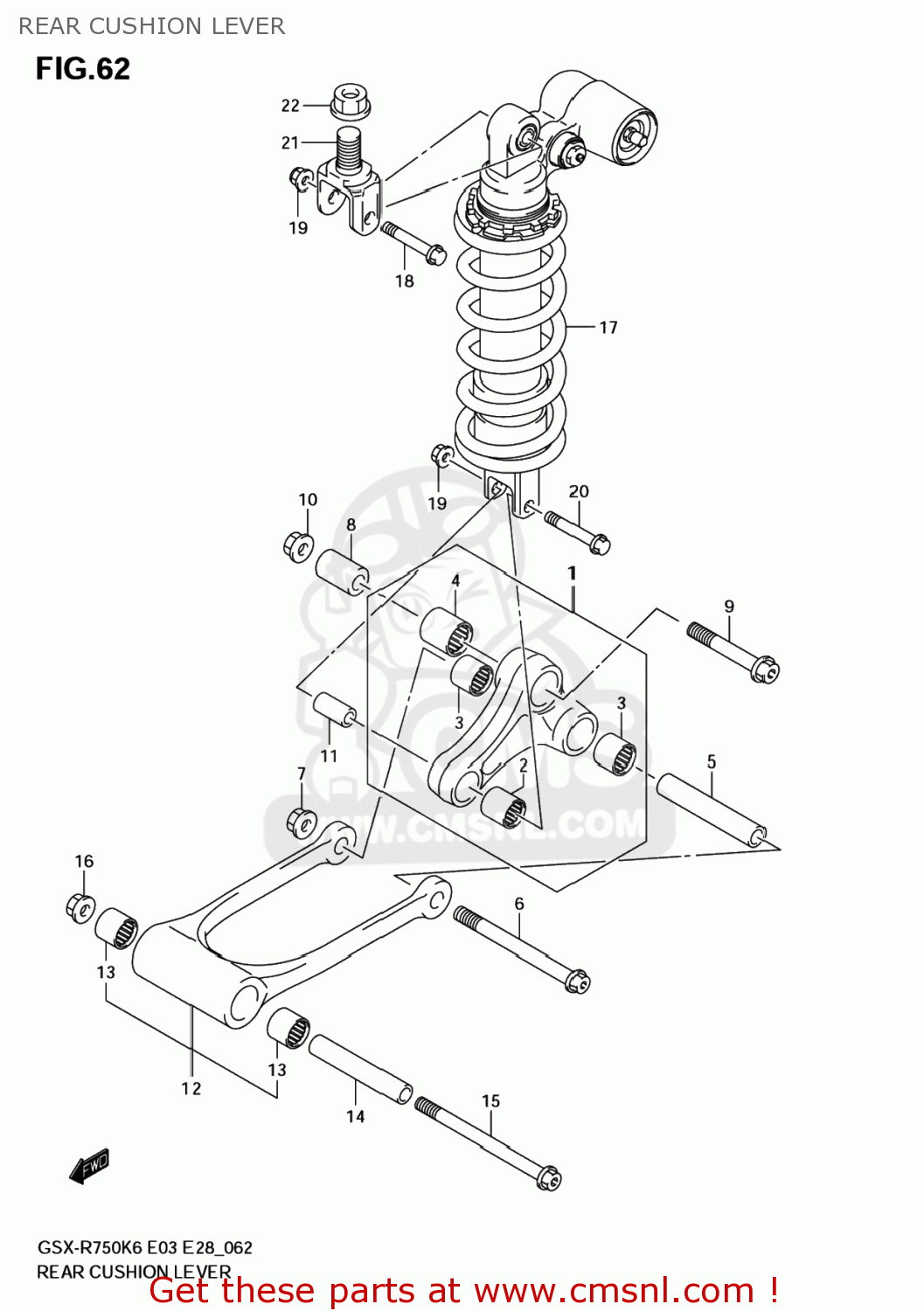

Rear cushion lever diagram GSXR750 2006 (K6) USA (E03)
REAR CUSHION LEVER GSXR750 2006 (K6) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6260101850
ref: 1
LEVER SET,RR CUSHION
€ 236.00
2
0926317034
ref: 2
BEARING(17X24X26)
€ 21.50
3
0926317037
ref: 3
BEARING(17X24X25)
€ 19.00
4
0926320074
ref: 4
BEARING(20X27X32)
€ 25.00
5
6264608G00
ref: 5
SPACER,RR CUSHION ROD
€ 23.50
6
6262142E10
ref: 6
BOLT,RR CUSHION LEVER LWR
€ 16.50
7
0915912056A05
ref: 7
09159-12056
NUT,RR CUSHION
€ 7.00
8
6231727C10
ref: 8
SPACER,RR CUSHION LEVER FR
€ 9.00
9
6265835F00A05
ref: 9
62658-35F00
BOLT, UPPER
€ 36.50
10
0915912056A05
ref: 10
09159-12056
NUT,RR CUSHION
€ 7.00
11
6268440A10
ref: 11
SPACER,RR CUSHION LEVER
€ 11.50
12
6260101860
ref: 12
ROD SET,RR CUSHION
€ 231.50
13
0926317037
ref: 13
BEARING(17X24X25)
€ 19.00
14
6262633D00
ref: 14
SPACER,RR CUSHION LEVER CTR
€ 17.50
15
6262101H00
ref: 15
BOLT,RR CUSHION ROD
€ 20.00
16
0915912056A05
ref: 16
09159-12056
NUT,RR CUSHION
€ 7.00
17-1
6210002H10163
ref: 17-1
ABSORBER ASSY,RR SHOCK(YELLOW)
€ 0.00
17-2
6210002H00163
ref: 17-2
ABSORBER ASSY,RR SHOCK(YELLOW)
€ 499.00
18
0910310143A05
ref: 18
09103-10143
BOLT (10X55)
€ 3.50
19
0915910058A05
ref: 19
09159-10115
NUT,REAR AXLE
€ 4.00
20
0910310143A05
ref: 20
09103-10143
BOLT (10X55)
€ 3.50
21
6299335F00
ref: 21
BRACKET,RR SHOCK ABSORBER UPR
€ 113.00
22
0915920006A05
ref: 22
09159-20006
NUT
€ 19.00
