STARTING MOTOR
GSXR750 2006 (K6) USA (E03)

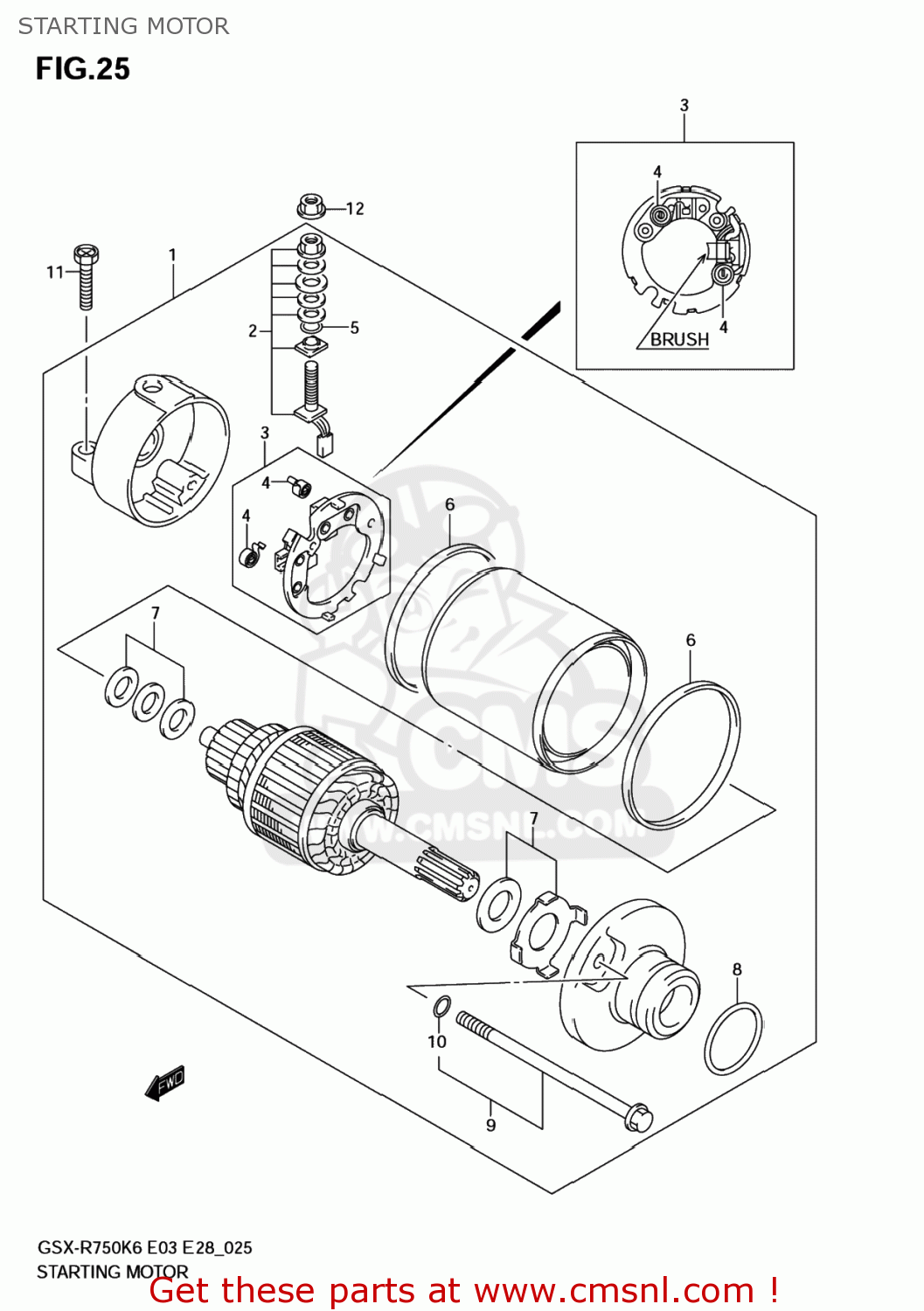

Starting motor diagram GSXR750 2006 (K6) USA (E03)
STARTING MOTOR GSXR750 2006 (K6) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3110001H00
ref: 1
MOTOR ASSY,STARTING
€ 682.00
2
3113013E00
ref: 2
BRUSH TERMINAL SET
€ 42.50
3
3113213E00
ref: 3
BRUSH HOLDER SET
€ 47.50
4
3113531300
ref: 4
SPRING,BRUSH
€ 4.00
5
3114349040
ref: 5
O RING
€ 3.00
6
3126413E00
ref: 6
O RING
€ 6.00
7
3117019B10
ref: 7
SHIM SET,STARTING MOTOR
€ 8.00
8
0928024003
ref: 8
O RING(D:3,ID:24.5)
€ 2.00
9
3128013E00
ref: 9
BOLT
€ 16.50
10
3115613E00
ref: 10
O RING
€ 3.00
11
0912806024
ref: 11
09103-06212
SCREW (6X25)
€ 2.50
12
083613506A
ref: 12
NUT
€ 2.00
