CAM CHAIN

GSXR750 2006 (K6) USA (E03)

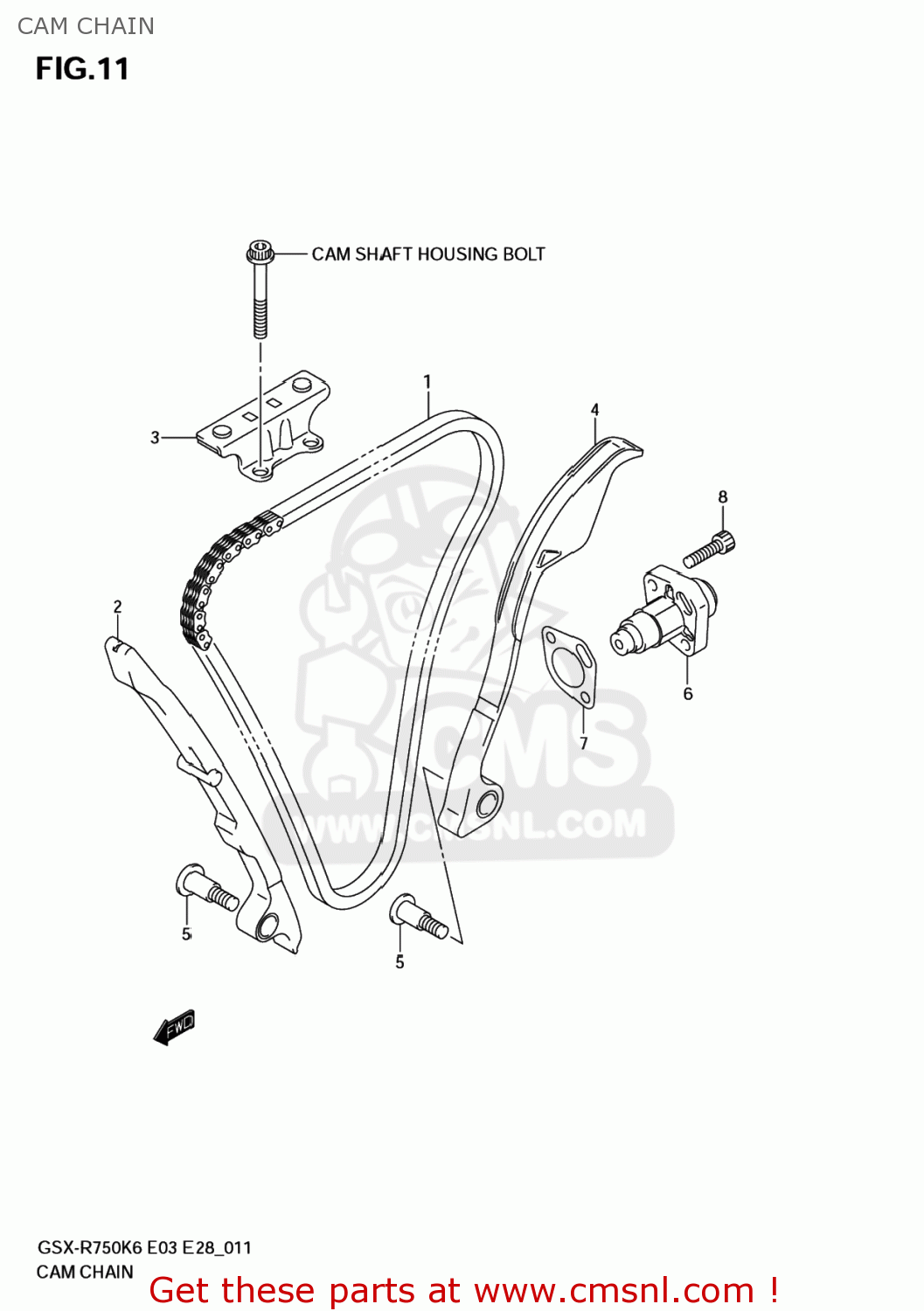

Cam chain diagram GSXR750 2006 (K6) USA (E03)

CAM CHAIN GSXR750 2006 (K6) USA (E03)

CAM CHAIN GSXR750 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1276039F00
ref: 1

CHAIN,CAMSHAFT DRIVE

€ 112.00

2

1277101H00
ref: 2

GUIDE,CAM CHAIN NO.1

€ 40.50

3

1278229G00
ref: 3

GUIDE,CAM CHAIN NO.2

€ 17.00

4

1281102H00
ref: 4

TENSIONER,CAM CHAIN

€ 38.50

5

1281231G00A05
ref: 5

BOLT,CAM CHAIN TNSN & GUIDE

€ 4.00

6

1283002H00
ref: 6

ADJUSTER ASSY,TENSIONER

€ 208.00

7

1283702H00
ref: 7

GASKET,TENSIONER ADJUSTER (NAS)

€ 7.00

8

071300625A
ref: 8

BOLT

€ 2.50
