STAND

GSXR750 2006 (K6) USA (E03)

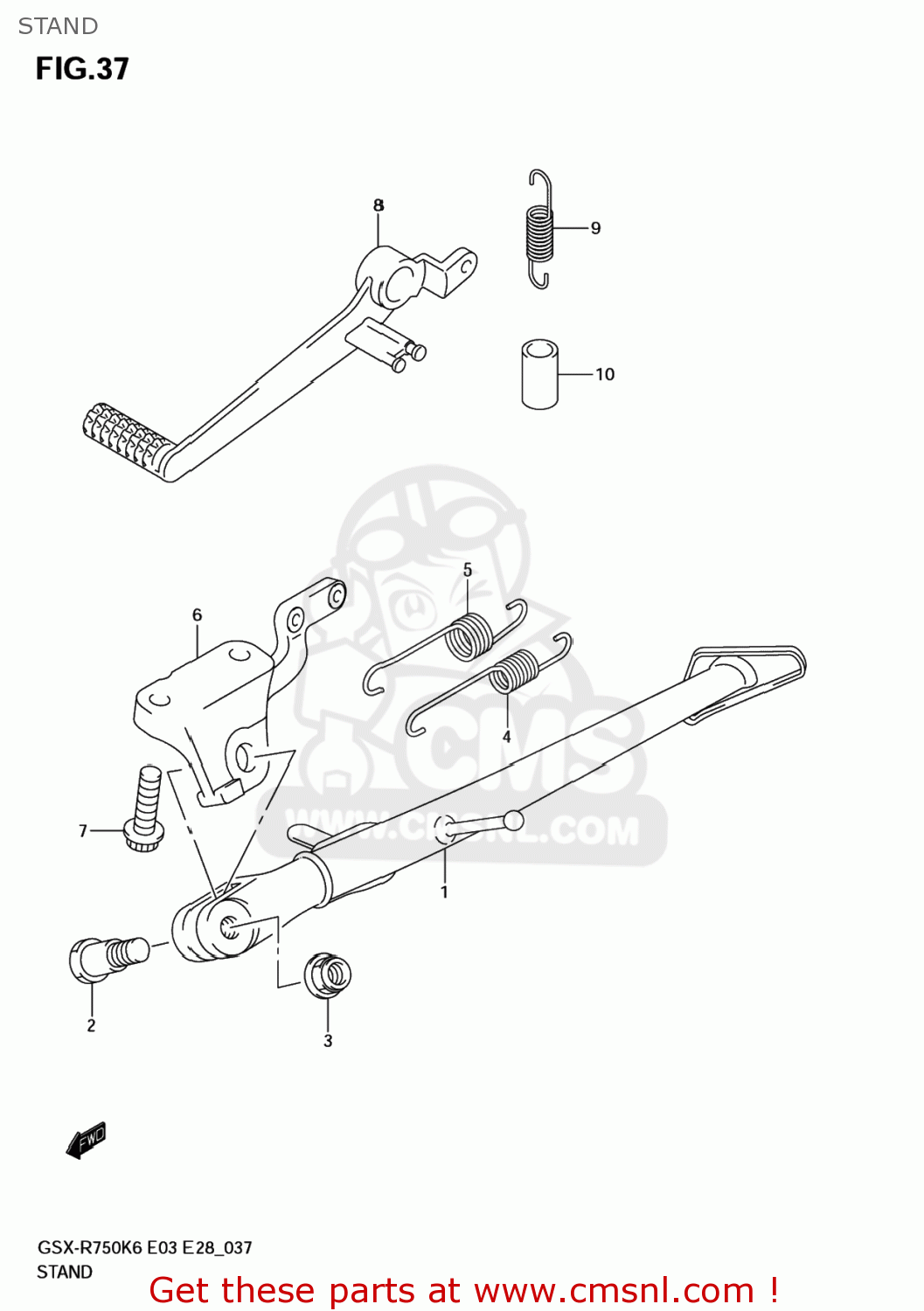

Stand diagram GSXR750 2006 (K6) USA (E03)

STAND GSXR750 2006 (K6) USA (E03)

STAND GSXR750 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4231040F30
ref: 1

STAND,PROP

€ 158.00

2

0911110059
ref: 2

BOLT(10X21)

€ 7.00

3

0915910103A05
ref: 3
09159-10103

NUT

€ 3.00

4

0944314070A05
ref: 4
09443-14070

SPRING, INNER

€ 5.00

5

0944319016A05
ref: 5
09443-19016

SPRING

€ 5.50

6

4233001H00
ref: 6

BRACKET,PROP STAND

€ 167.50

7

0910610064A05
ref: 7
09106-10064

BOLT (10X28)

€ 4.50

8

4311041G00
ref: 8

PEDAL,BRAKE

€ 100.50

9

0944311033A05
ref: 9
09443-11033

SPRING

€ 4.50

10

0935211153600
ref: 10

HOSE(11X15X600)

€ 13.50
