INNER COWLING

GSXR750 2006 (K6) USA (E03)

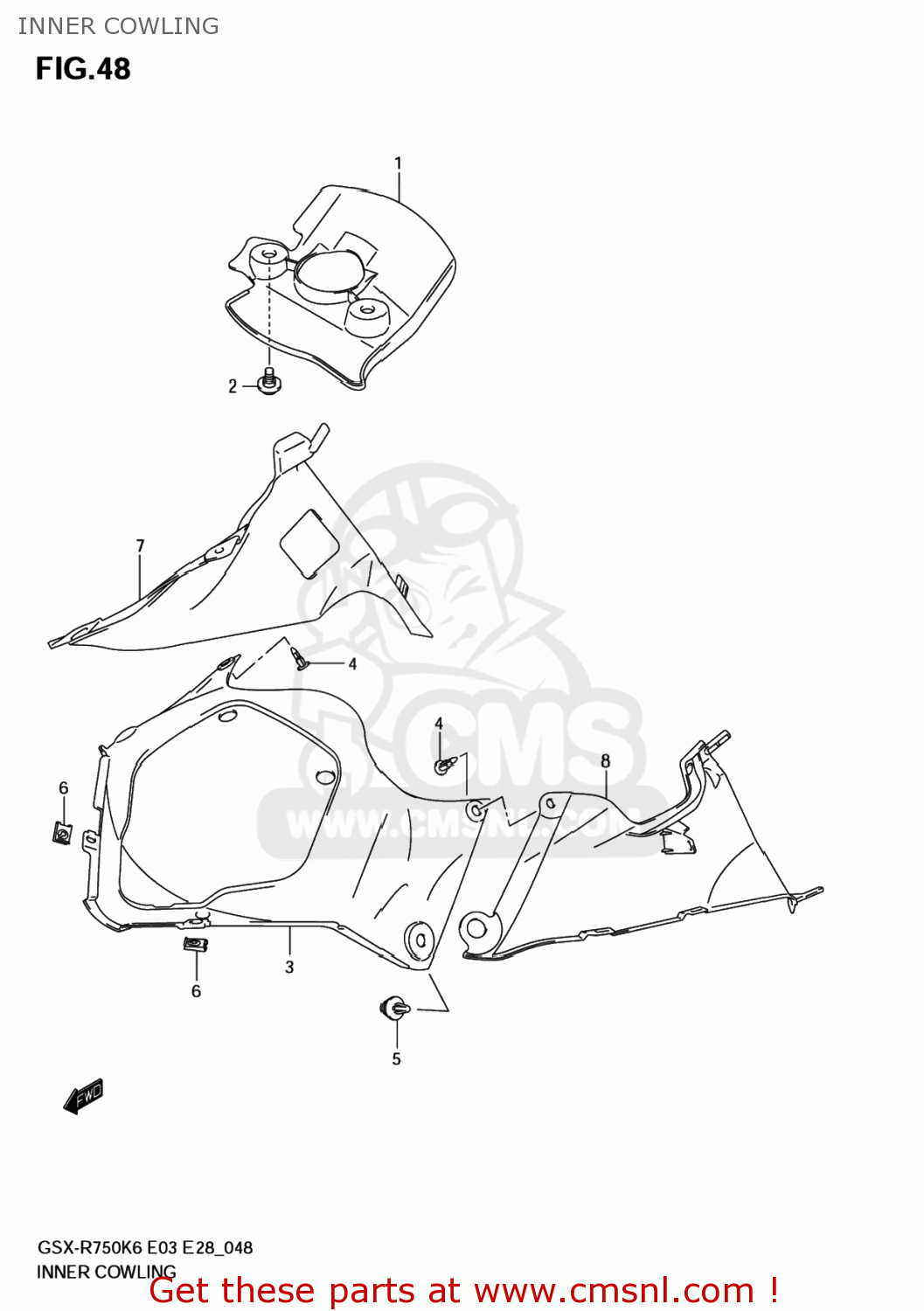

Inner cowling diagram GSXR750 2006 (K6) USA (E03)

INNER COWLING GSXR750 2006 (K6) USA (E03)

INNER COWLING GSXR750 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

9445801H00
ref: 1

COVER,LWR BRACKET

€ 10.00

2

6316143E00
ref: 2

BOLT

€ 3.00

3

9441901H00
ref: 3

COVER,BODY COWLING

€ 83.00

4

09409063145PK
ref: 4

CLIP(BLACK)

€ 3.50

5

0940907333
ref: 5

CLIP

€ 2.50

6

0914805038
ref: 6

NUT

€ 2.50

7

9446101H00
ref: 7

COWLING,UNDER INNER,R

€ 16.50

8

9446201H00
ref: 8

COWLING,UNDER INNER,L

€ 16.50
