CAM CHAIN

GSXR750 2009 (K9) USA (E03)

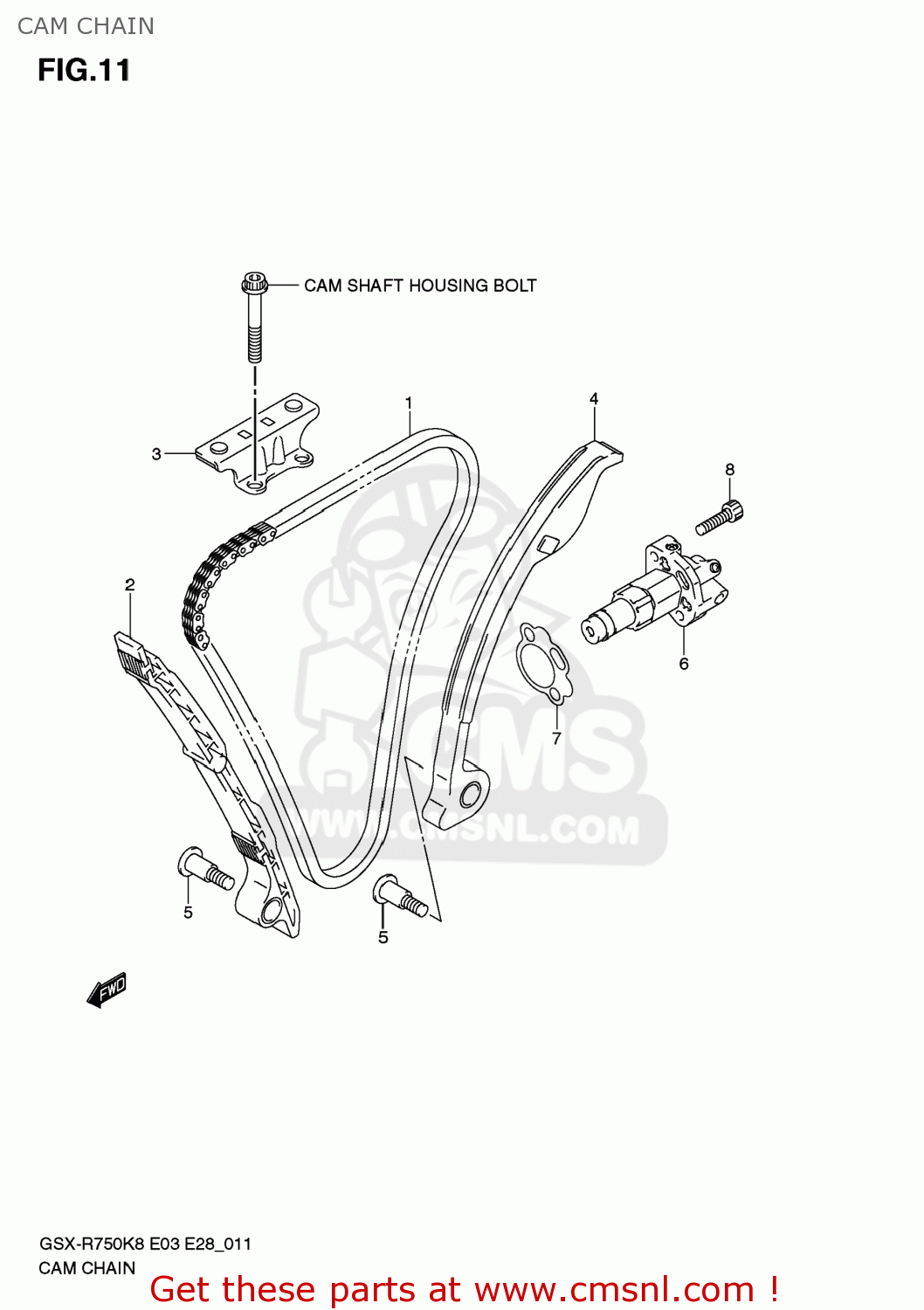

Cam chain diagram GSXR750 2009 (K9) USA (E03)

CAM CHAIN GSXR750 2009 (K9) USA (E03)

CAM CHAIN GSXR750 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1276039F00
ref: 1

CHAIN,CAMSHAFT DRIVE

€ 112.00

2

1277137H00
ref: 2

GUIDE,CAM CHAIN NO.1

€ 19.50

3

1278229G00
ref: 3

GUIDE,CAM CHAIN NO.2

€ 17.00

4

1281102H00
ref: 4

TENSIONER,CAM CHAIN

€ 38.50

5

1281231G00
ref: 5

BOLT,CAM CHAIN TENSIONER

€ 4.00

6

1283037H00
ref: 6

ADJUSTER ASSY,TENSIONER

€ 162.50

7

1283702H00
ref: 7

GASKET,TENSIONER ADJUSTER (NAS)

€ 7.00

8

071300625B
ref: 8

BOLT

€ 3.00
