SEAT TAIL BOX

GSXR750 2009 (K9) USA (E03)

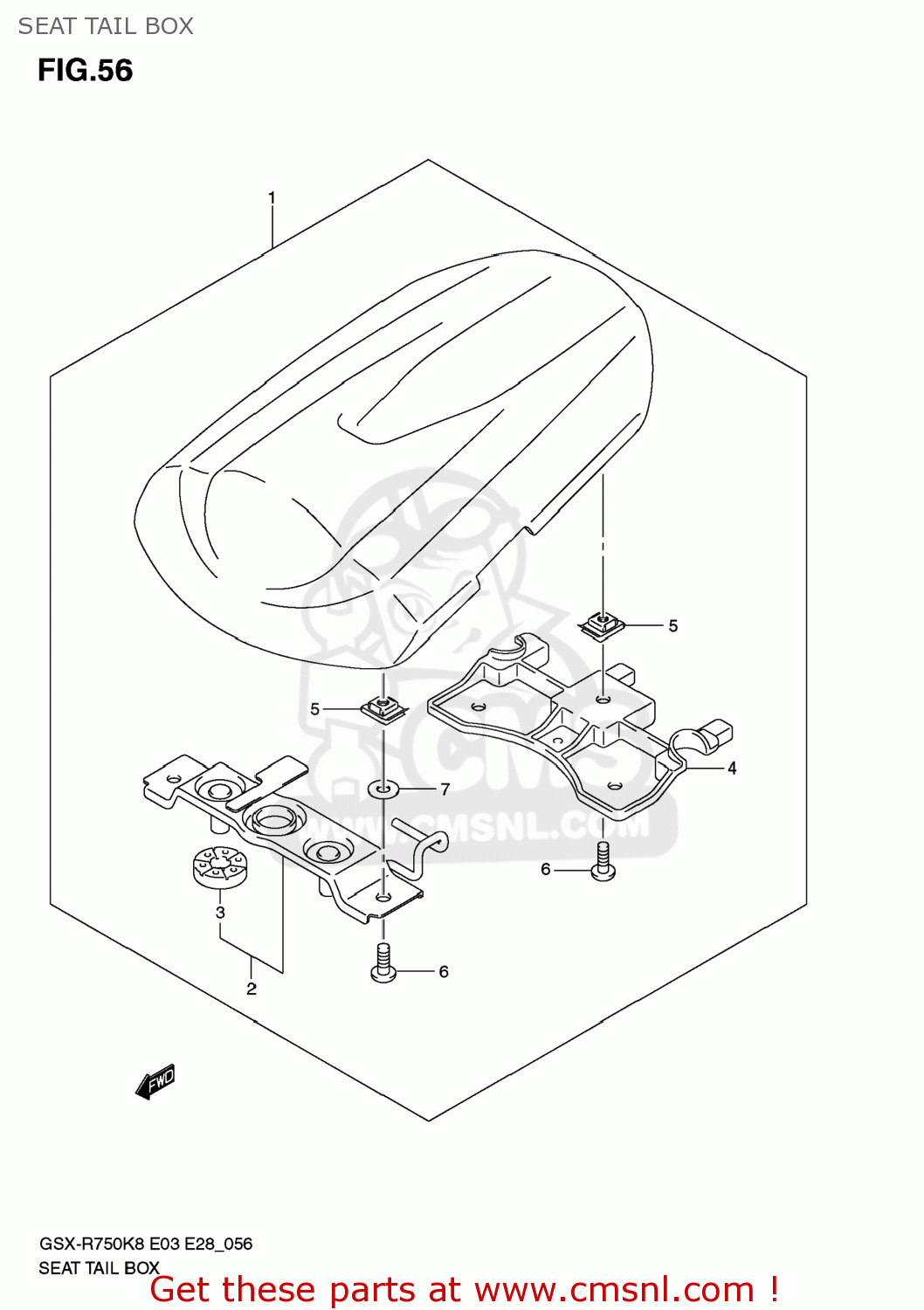

Seat tail box diagram GSXR750 2009 (K9) USA (E03)

SEAT TAIL BOX GSXR750 2009 (K9) USA (E03)

SEAT TAIL BOX GSXR750 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4555037H00YKY
ref: 1-1

BOX,SEAT TAIL

€ 160.00

1-2

4555037H00YMG
ref: 1-2

BOX,SEAT TAIL(GOLD)

€ 121.00

1-3

4555037H00YPA
ref: 1-3

BOX,SEAT TAIL(WHITE)

€ 160.00

1-4

4555037H00YSF
ref: 1-4

BOX,SEAT TAIL(BLUE)

€ 160.00

1-5

4555037H00019
ref: 1-5

BOX,SEAT TAIL

€ 160.00

2

4529037H00
ref: 2

STRIKER,SEAT LOCK

€ 55.50

3

4521342F00
ref: 3

CUSHION

€ 2.50

4

4555237H00
ref: 4

BOTTOM,SEAT TAIL BOX

€ 13.50

5

0914806018
ref: 5

NUT

€ 2.50

6

021420612A
ref: 6

SCREW

€ 2.00

7

0916006077
ref: 7

WASHER(6.5X20X1.2)

€ 2.00
