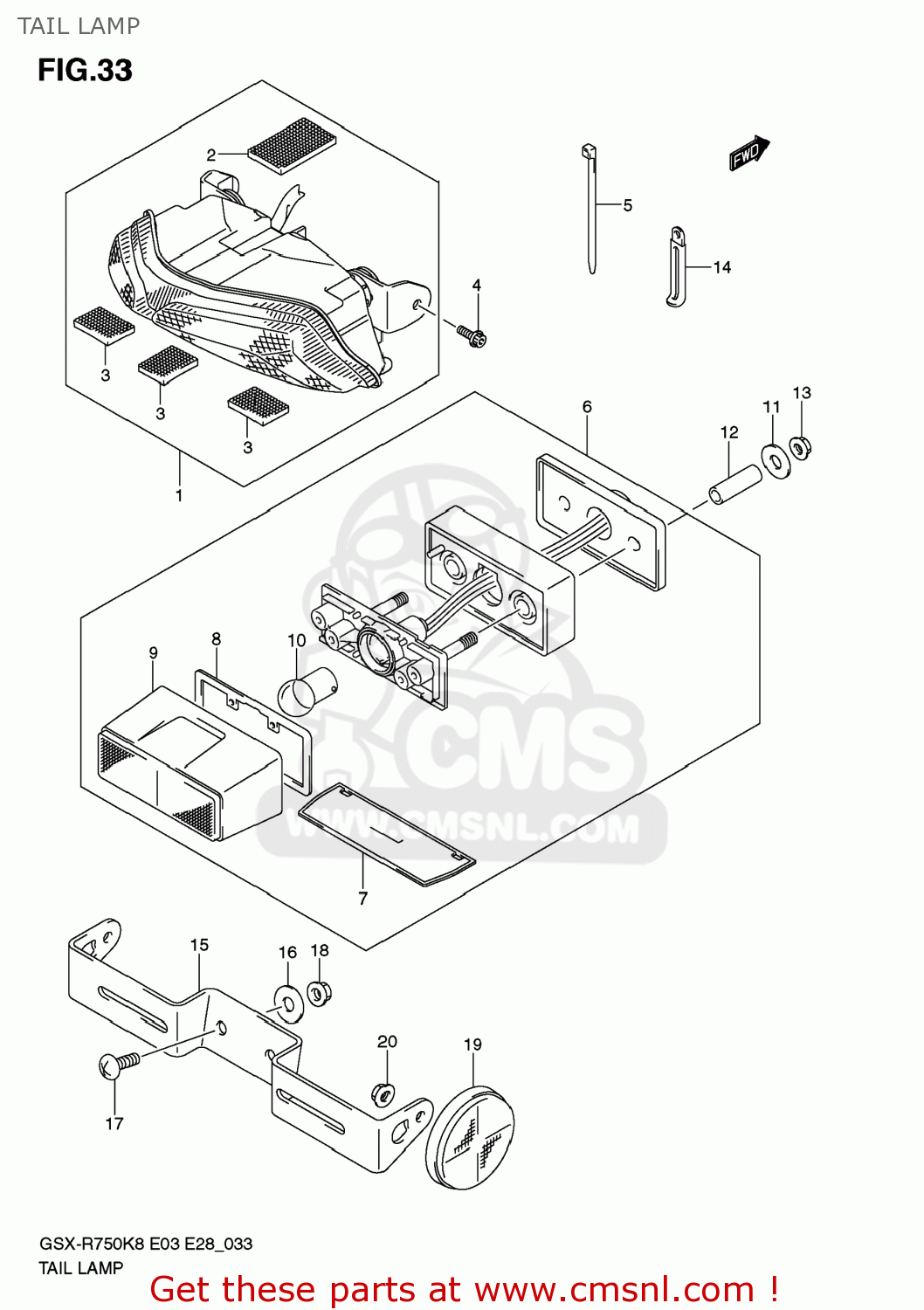

TAIL LAMP

ref

part #

description

quantity

1

3571037H30
ref: 1

LAMP ASSY,RR COMBINATION

€ 258.00

2

4457213G10
ref: 2

FASTENER,RR COMB LAMP

€ 9.00

3

4791237H00
ref: 3

FASTENER,FRAME COVER

€ 8.00

4

0910605031
ref: 4

BOLT(5X12)

€ 2.50

5

0940714407
ref: 5

CLAMP(L:145)

€ 4.00

6

3591041G30
ref: 6
35910-41G31

LAMP ASSY,LICE

€ 62.50

7

3591241G00
ref: 7

LENS LICENCE

€ 19.50

8

3591341G00
ref: 8

GASKET (NAS)

€ 19.00

9

3591741G00
ref: 9

COVER,LICENSE LAMP

€ 27.00

10

0947112140
ref: 10
09471-12058

BULB(12V5W,BF150-40160A)

€ 4.00

11

0916006077
ref: 11

WASHER(6.5X20X1.2)

€ 2.00

12

0918006278
ref: 12

SPACER(6.5X9X33.3)

€ 3.50

13

083161006A
ref: 13

NUT

€ 2.50

14

0940406429
ref: 14

CLAMP(L:45)

€ 2.50

15

3592741G30
ref: 15

BRACKET,LICENSE PLATE

€ 0.00

16

0916006077
ref: 16

WASHER(6.5X20X1.2)

€ 2.00

17

021420616A
ref: 17

SCREW

€ 2.50

18

083161006A
ref: 18

NUT

€ 2.50

19

3597014A20
ref: 19

REFLECTOR ASSY,RR SIDE

€ 11.00

20

083161005A
ref: 20

NUT

€ 2.50
