UNDER COWLING (MODEL K9)
GSXR750 2009 (K9) USA (E03)

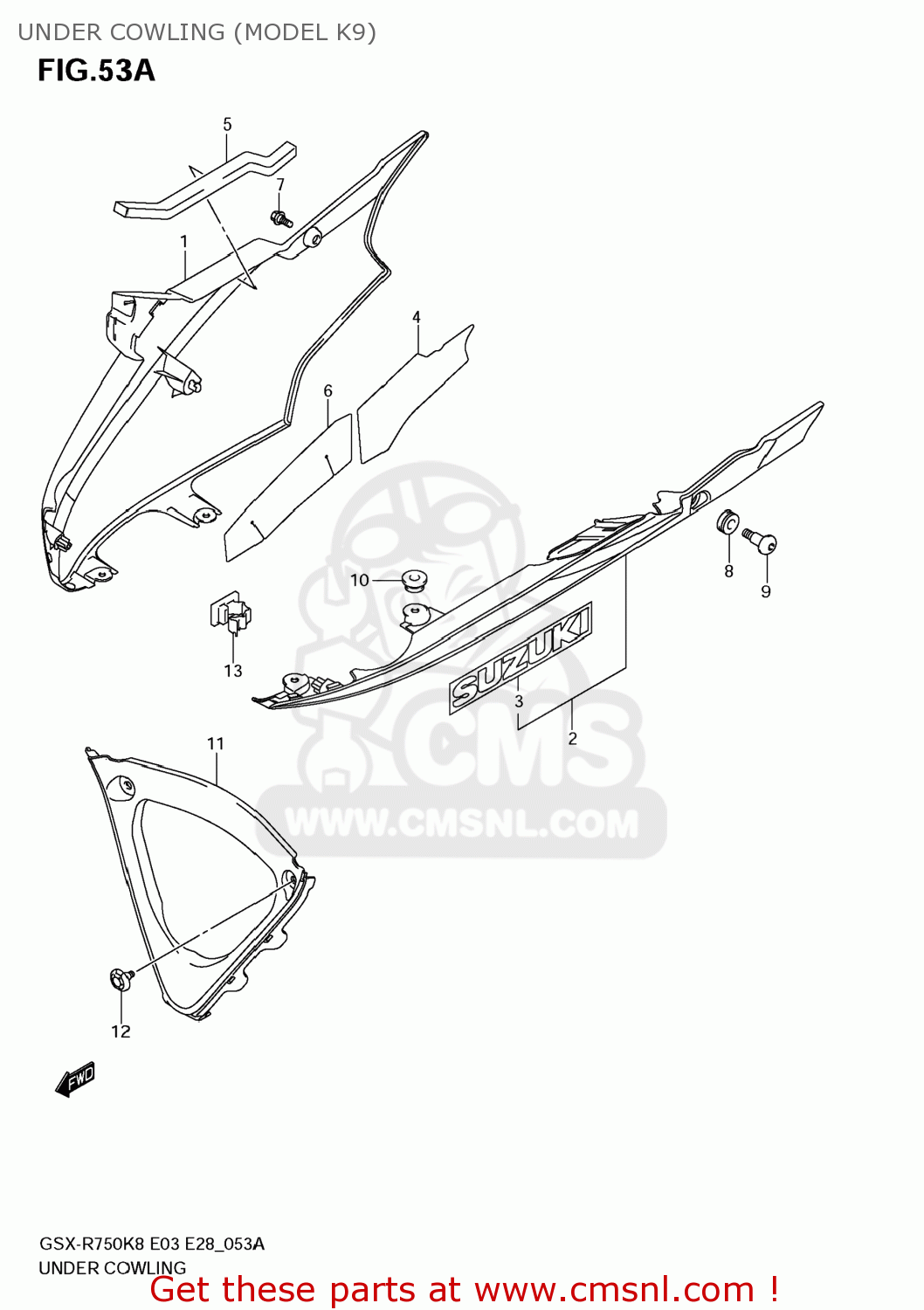

Under cowling (model k9) diagram GSXR750 2009 (K9) USA (E03)
UNDER COWLING (MODEL K9) GSXR750 2009 (K9) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
9447037H004TX
ref: 1-1
COWLING,UNDER,R(BLACK)
€ 485.50
1-2
9447037H005JX
ref: 1-2
COWLING,UNDER,R
€ 472.00
1-3
9447037H00YSF
ref: 1-3
COWLING,UNDER,R(BLUE)
€ 512.50
2-1
9448037H004TX
ref: 2-1
COWLING,UNDER,L(BLACK)
€ 464.00
2-2
9448037H005JX
ref: 2-2
COWLING,UNDER,L
€ 413.00
2-3
9448037H00YSF
ref: 2-3
COWLING,UNDER,L(BLUE)
€ 482.50
3-1
6818133C20YU8
ref: 3-1
EMBLEM,SUZUKI
€ 27.50
3-2
6818133C2017U
ref: 3-2
EMBLEM,SUZUKI
€ 20.50
3-3
6818133C20YBD
ref: 3-3
EMBLEM,SUZUKI
€ 27.50
4
9447237H00
ref: 4
SHIELD,UNDER COWL HEAT,R
€ 12.50
5
9447737H00
ref: 5
CUSHION,UNDER COWLING
€ 23.50
6
9447237H10
ref: 6
SHIELD,UNDER COWL HEAT,R
€ 17.50
7
0913905064
ref: 7
SCREW(5X13)
€ 2.50
8
0932009016
ref: 8
CUSHION
€ 2.50
9
0913906126
ref: 9
SCREW(6X20)
€ 4.00
10
0932110018
ref: 10
CUSHION
€ 5.00
11
9449837H00
ref: 11
COWLING,UNDER CTR
€ 31.50
12
9447935F00
ref: 12
CLIP
€ 3.50
13
0940314311
ref: 13
CLAMP
€ 4.00
