INNER COVER

GSXR750 2009 (K9) USA (E03)

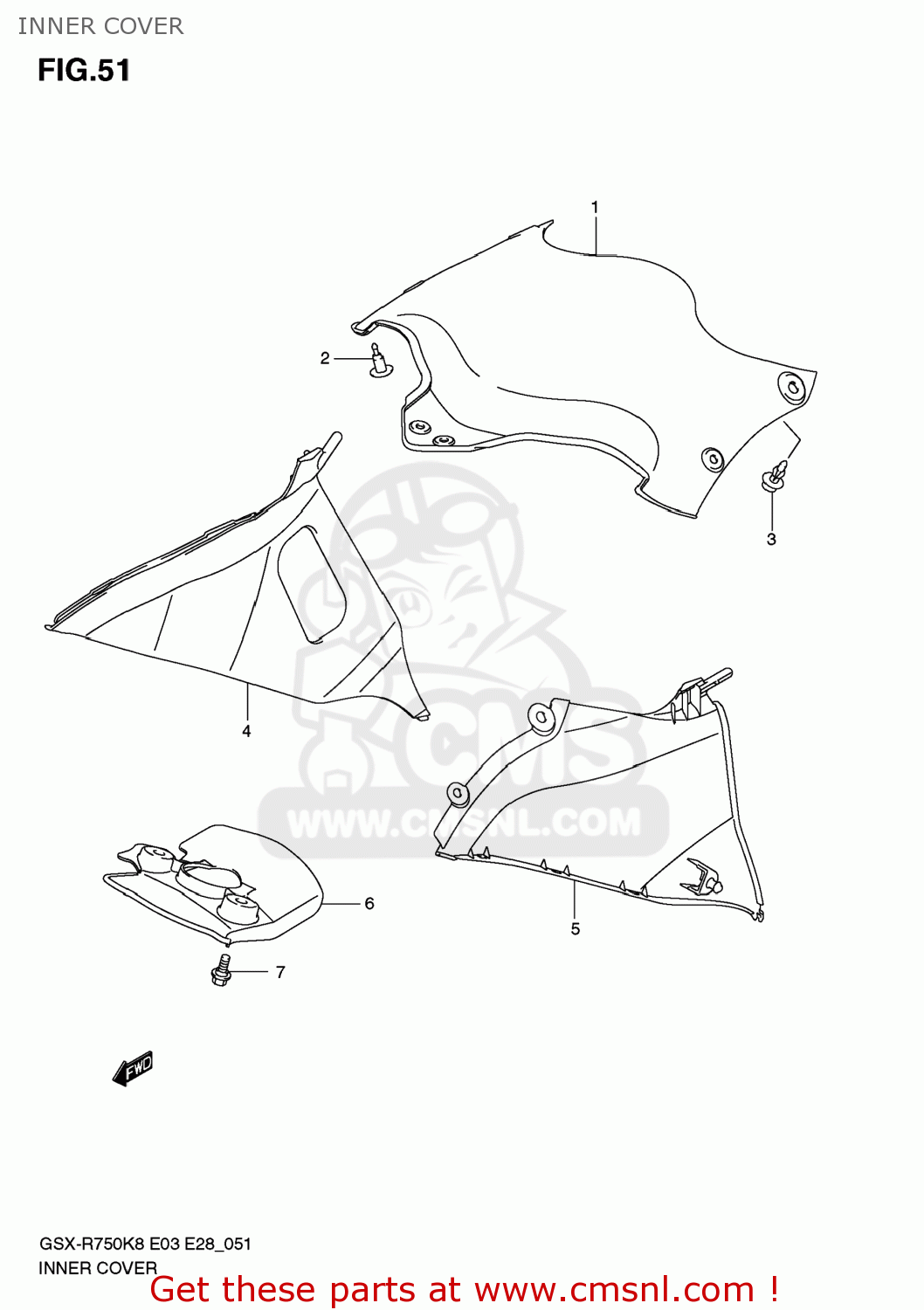

Inner cover diagram GSXR750 2009 (K9) USA (E03)

INNER COVER GSXR750 2009 (K9) USA (E03)

INNER COVER GSXR750 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

9441937H00
ref: 1

COVER,BODY COWLING

€ 69.50

2

09409063145PK
ref: 2

CLIP(BLACK)

€ 3.50

3

09409083085ES
ref: 3

CLIP(BLACK)

€ 2.00

4

9446137H00
ref: 4

COWLING,UNDER INNER,R

€ 24.50

5

9446237H00
ref: 5

COWLING,UNDER INNER,L

€ 24.50

6

9445801H00
ref: 6

COVER,LWR BRACKET

€ 10.00

7

6316143E00
ref: 7

BOLT

€ 3.00
