GENERATOR

GSXR750 2009 (K9) USA (E03)

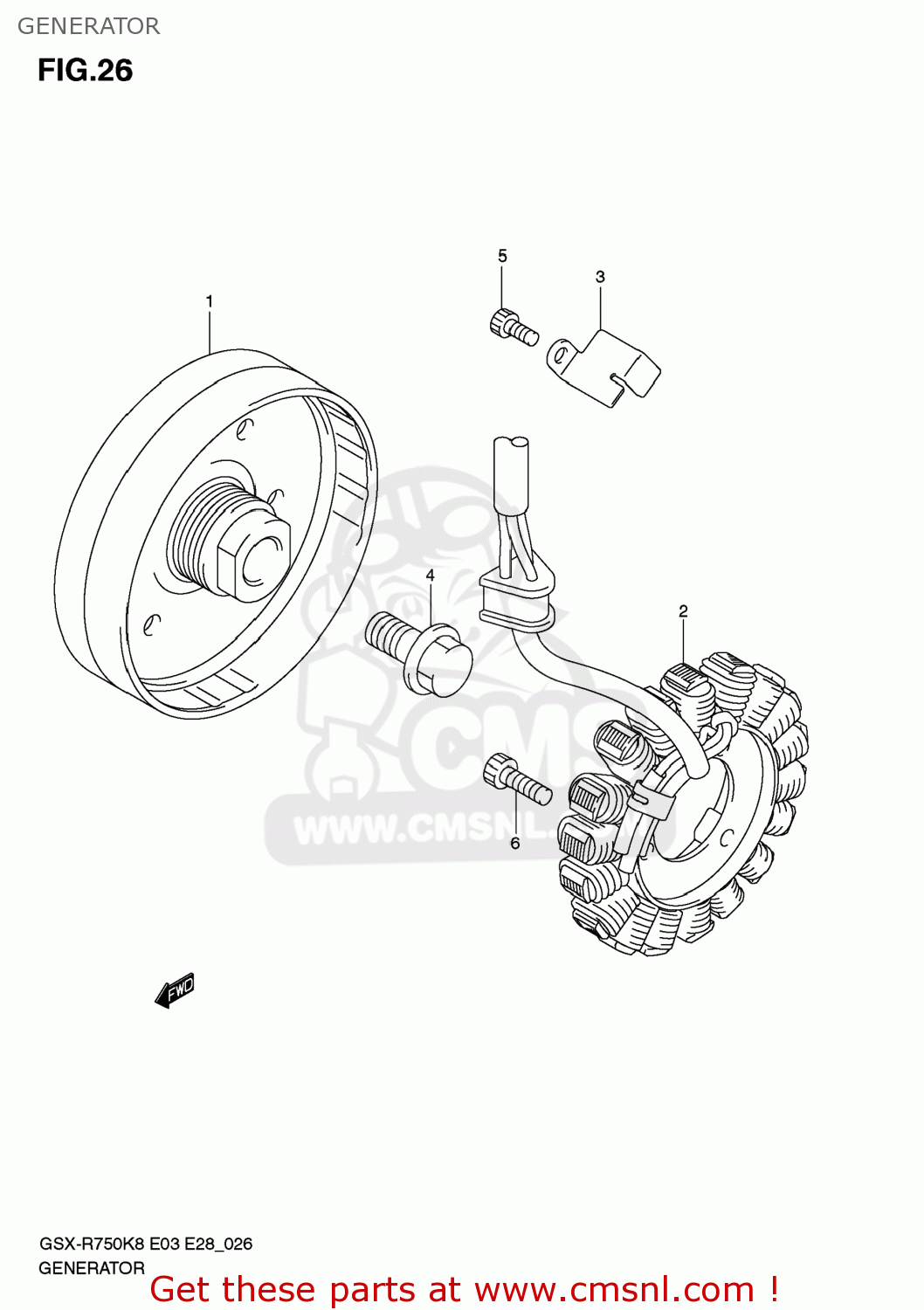

Generator diagram GSXR750 2009 (K9) USA (E03)

GENERATOR GSXR750 2009 (K9) USA (E03)

GENERATOR GSXR750 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3140201H10
ref: 1

ROTOR ASSY

€ 579.00

2

3140101H10
ref: 2

STARTER ASSY

€ 445.00

3

3237113E00
ref: 3

CLAMP,MAGNETO LEAD NO.1

€ 3.00

4

0910312005
ref: 4

BOLT(12X23)

€ 5.50

5

071300512A
ref: 5

BOLT

€ 2.50

6

071300620A
ref: 6

BOLT

€ 3.00
