CRANKCASE
GT500 1976 1977 (A) (B) USA (E03)

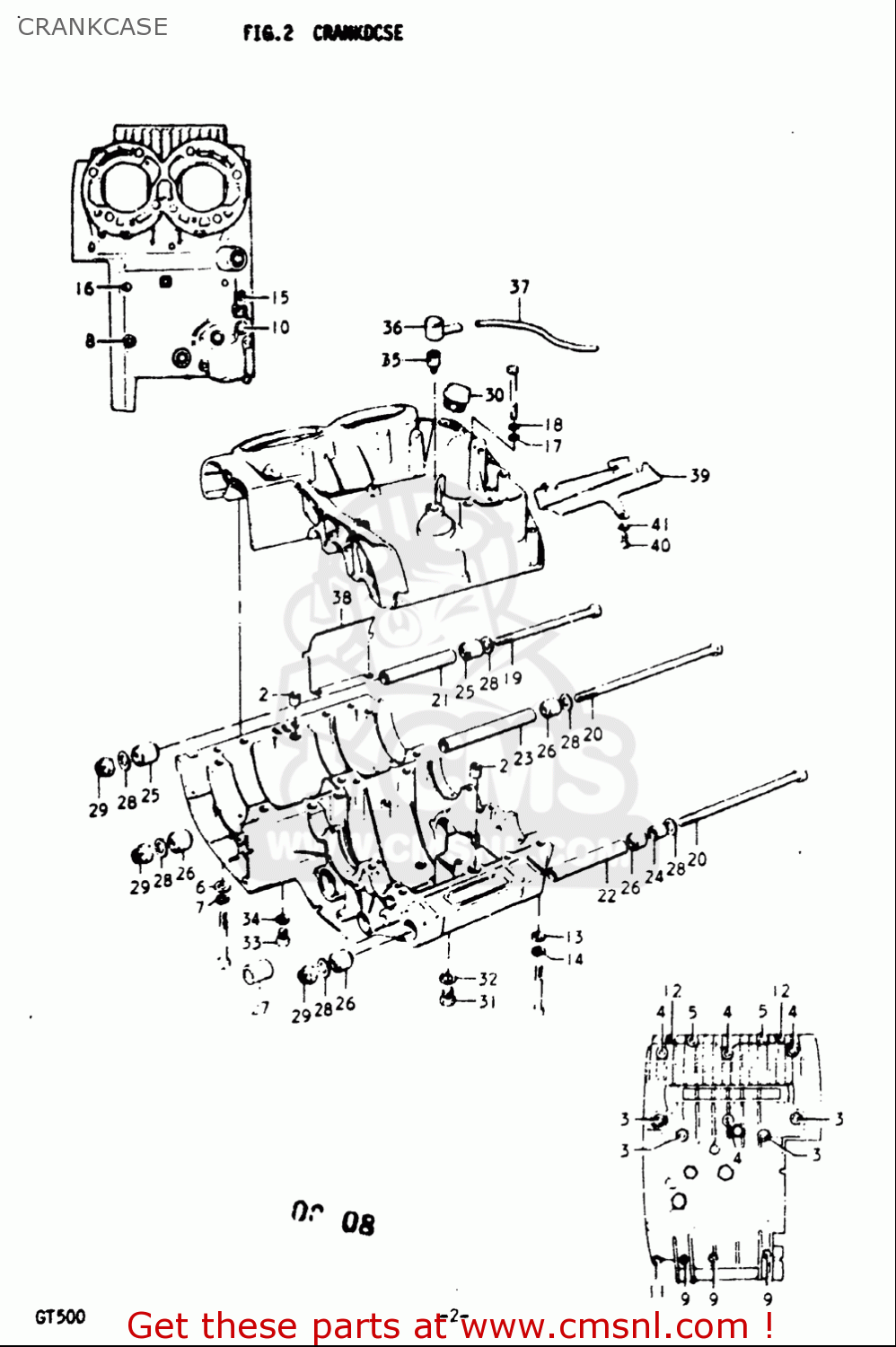

Crankcase diagram GT500 1976 1977 (A) (B) USA (E03)
CRANKCASE GT500 1976 1977 (A) (B) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
2
0421113189
ref: 2
PIN
€ 2.50
4
0150010803
ref: 4
BOLT
€ 3.50
5
0150010653
ref: 5
BOLT
€ 4.00
6
0832201107
ref: 6
WASHER
€ 2.50
7
0832101107
ref: 7
WASHER,LOCK
€ 2.00
8
0150008903
ref: 8
BOLT
€ 3.50
9
0150008753
ref: 9
BOLT
€ 3.00
10
0150008703
ref: 10
BOLT
€ 2.50
11
0150008653
ref: 11
BOLT
€ 3.00
12
0150008603
ref: 12
BOLT
€ 2.50
13
0832201087
ref: 13
WASHER
€ 2.00
14
0832101087
ref: 14
WASHER,LOCK
€ 2.00
15
0110706958
ref: 15
BOLT 6X95 HEXAG
€ 20.00
16
0910006062
ref: 16
BOLT(6X70)
€ 3.50
17
0832201067
ref: 17
WASHER
€ 2.00
18
0832101067
ref: 18
WASHER,LOCK
€ 2.50
25
0931912005
ref: 25
BUSHING
€ 7.50
