HANDLEBAR - CONTROL CABLE

GT500 1976 1977 (A) (B) USA (E03)

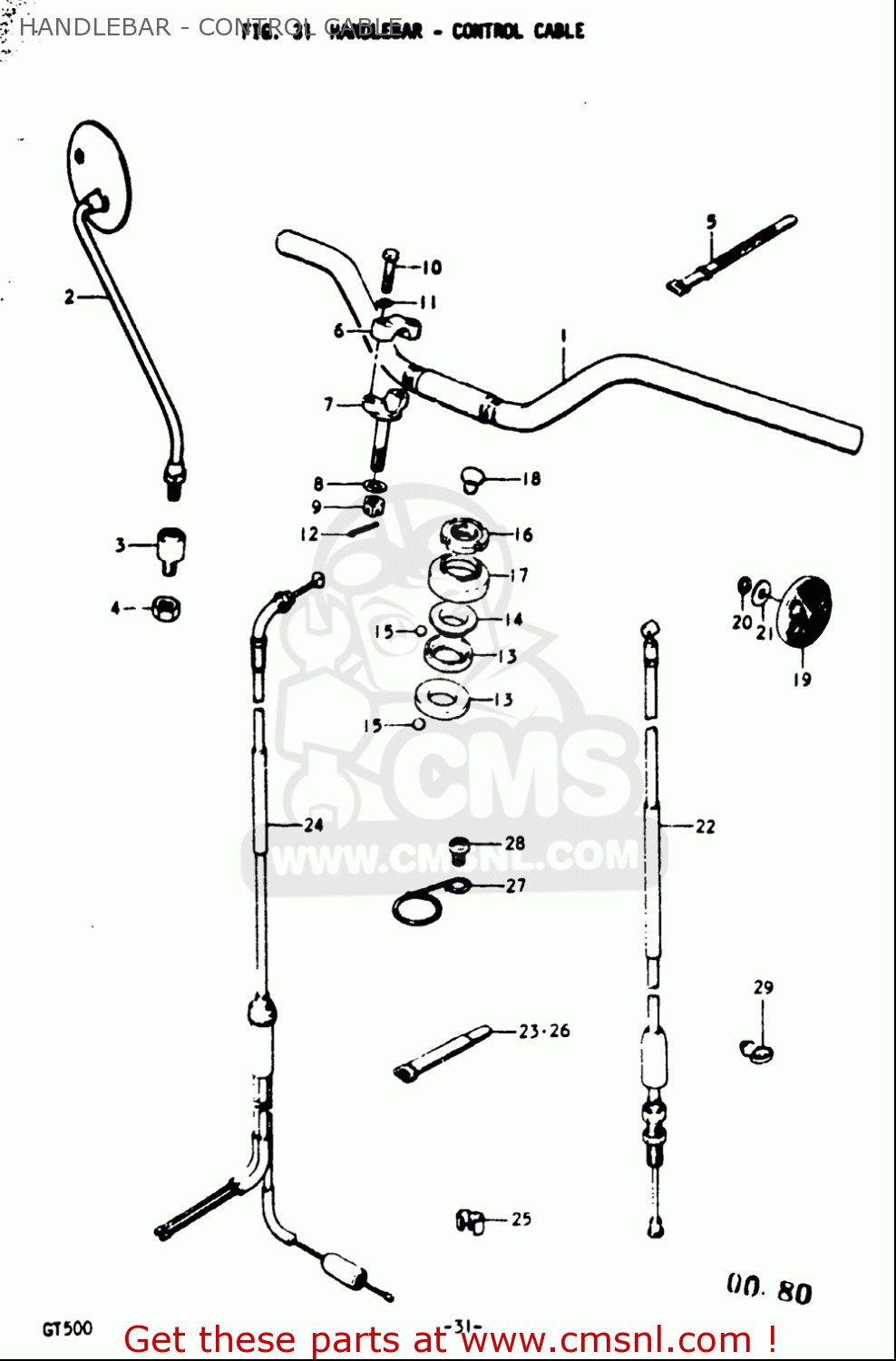

Handlebar - control cable diagram GT500 1976 1977 (A) (B) USA (E03)

prices are in EUR

ref

part #

description

quantity

5611115103
ref: 1

HANDLEBAR

€ 302.00

2-1

5650031012
ref: 2-1

MIRROR ASSEMBLY,RIGHT

€ 65.50

2-2

5660031012
ref: 2-2

MIRROR ASSEMBLY,LEFT

€ 65.50

0831000107
ref: 4

NUT

€ 2.50

0940712402
ref: 5

CLAMP(L:120)

€ 3.00

5621133000
ref: 6

HOLDER,HANDLEBAR

€ 7.00

0916010035
ref: 8

WASHER(10.5X28X2.3)

€ 2.00

0831431108
ref: 9

NUT

€ 1.50

0120408307
ref: 10

BOLT

€ 2.50

0832101087
ref: 11

WASHER,LOCK

€ 2.00

0411120308
ref: 12

COTTER PIN

€ 1.00

5161133002
ref: 13

LACE,STEERING INNER LWR

€ 7.00

5162130001
ref: 14

LACE,STEERING OUTER UPR

€ 14.00

0611108003
ref: 15

BALL

€ 1.50

5163128000
ref: 16

NUT,STEERING STEM(25X44X10)

€ 12.50

5164330000
ref: 17

DUST SEAL,STEERING UPR

€ 15.50

0925008005
ref: 18

CAP(OD:20)

€ 2.50
