REAR SWINGING ARM
GT500 1976 1977 (A) (B) USA (E03)

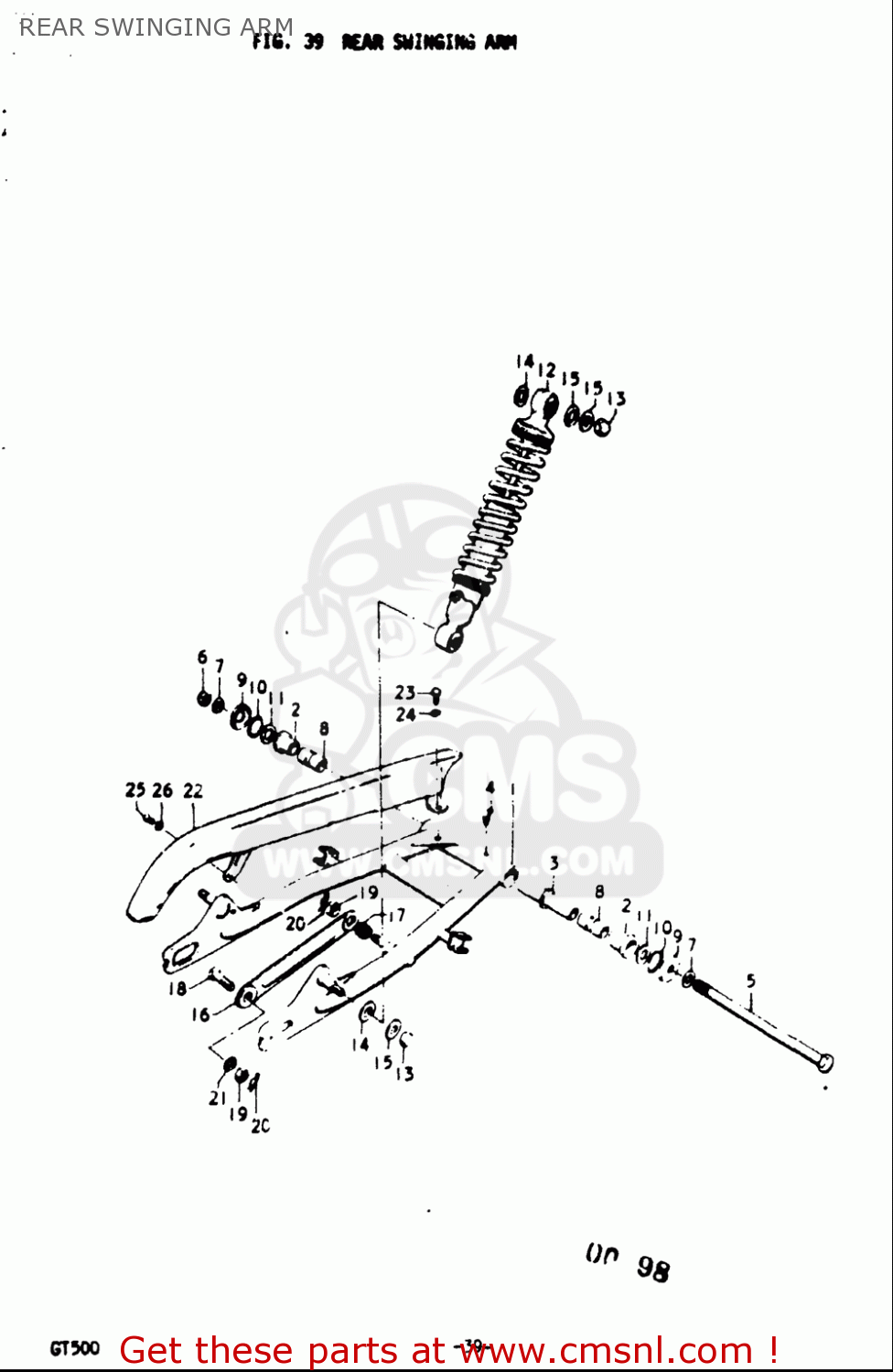

Rear swinging arm diagram GT500 1976 1977 (A) (B) USA (E03)
REAR SWINGING ARM GT500 1976 1977 (A) (B) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
2-1
0930722003
ref: 2-1
BUSH
€ 18.00
2-2
0930722003
ref: 2-2
BUSH
€ 18.00
4
0835131008
ref: 4
NIPPLE,GREASE
€ 10.50
5
6121115007
ref: 5
SHAFT,REAR SWING ARM
€ 34.50
7
0832201147
ref: 7
WASHER
€ 2.00
8
6125115001
ref: 8
SPACER
€ 21.00
9
6126215000
ref: 9
COVER
€ 84.00
10
0928030001
ref: 10
O RING(D:3,ID:29.5)
€ 2.00
11
0916014009
ref: 11
WASHER(14.5X29X2.3)
€ 3.50
13
0831310107
ref: 13
NUT
€ 2.50
14
0832201127
ref: 14
WASHER
€ 2.00
15
0916010127
ref: 15
WASHER (10.5X24X2.3)
€ 2.00
17
0944018002
ref: 17
SPRING
€ 1.50
18
0910110003
ref: 18
BOLT(10X31)
€ 4.00
19
0831000107
ref: 19
NUT
€ 2.50
20
0938510005
ref: 20
CLIP
€ 1.50
21
0832101107
ref: 21
WASHER,LOCK
€ 2.00
