GT500 1976 1977 (A) (B) USA (E03)

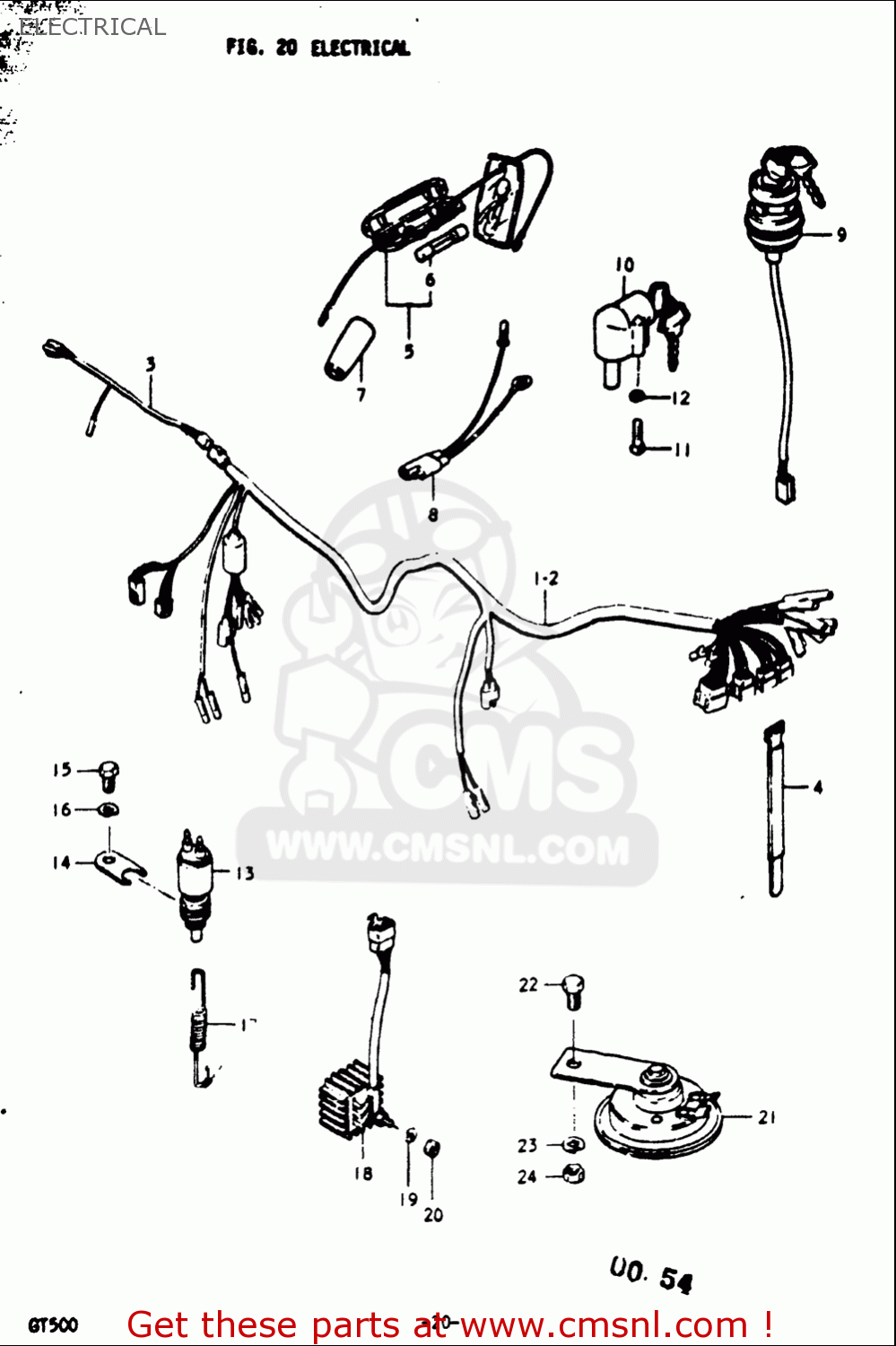

Electrical diagram GT500 1976 1977 (A) (B) USA (E03)
ELECTRICAL GT500 1976 1977 (A) (B) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
4
0940718301
ref: 4
CLAMP
€ 6.00
5
3674015011
ref: 5
CASE ASSY,FUSE
€ 11.00
6
0948115001
ref: 6
FUSE(15A)
€ 3.00
8
3687036000
ref: 8
WIRE,BATTERY LEAD
€ 17.00
9
3711025319
ref: 9
SWITCH ASSY,IGNITION
€ 60.00
10
5190033811
ref: 10
LOCK ASSY,STEERING
€ 32.50
11
0211205257
ref: 11
SCREW
€ 2.00
12
0832101057
ref: 12
WASHER,LOCK
€ 2.00
13
3761053011
ref: 13
SWITCH ASSY,BRAKE LAMP
€ 34.50
15
0150006127
ref: 15
BOLT
€ 2.00
16
0832101067
ref: 16
WASHER,LOCK
€ 2.50
17
0944306012
ref: 17
SPRING
€ 3.00
18
3280036021
ref: 18
RECTIFIER ASSY
€ 112.00
19
0832101067
ref: 19
WASHER,LOCK
€ 2.50
20
0831000067
ref: 20
NUT
€ 2.50
22
0150008163
ref: 22
BOLT
€ 2.00
23
0832101087
ref: 23
WASHER,LOCK
€ 2.00
24
0831000087
ref: 24
NUT
€ 2.00
