KICK STARTER

GT500 1976 1977 (A) (B) USA (E03)

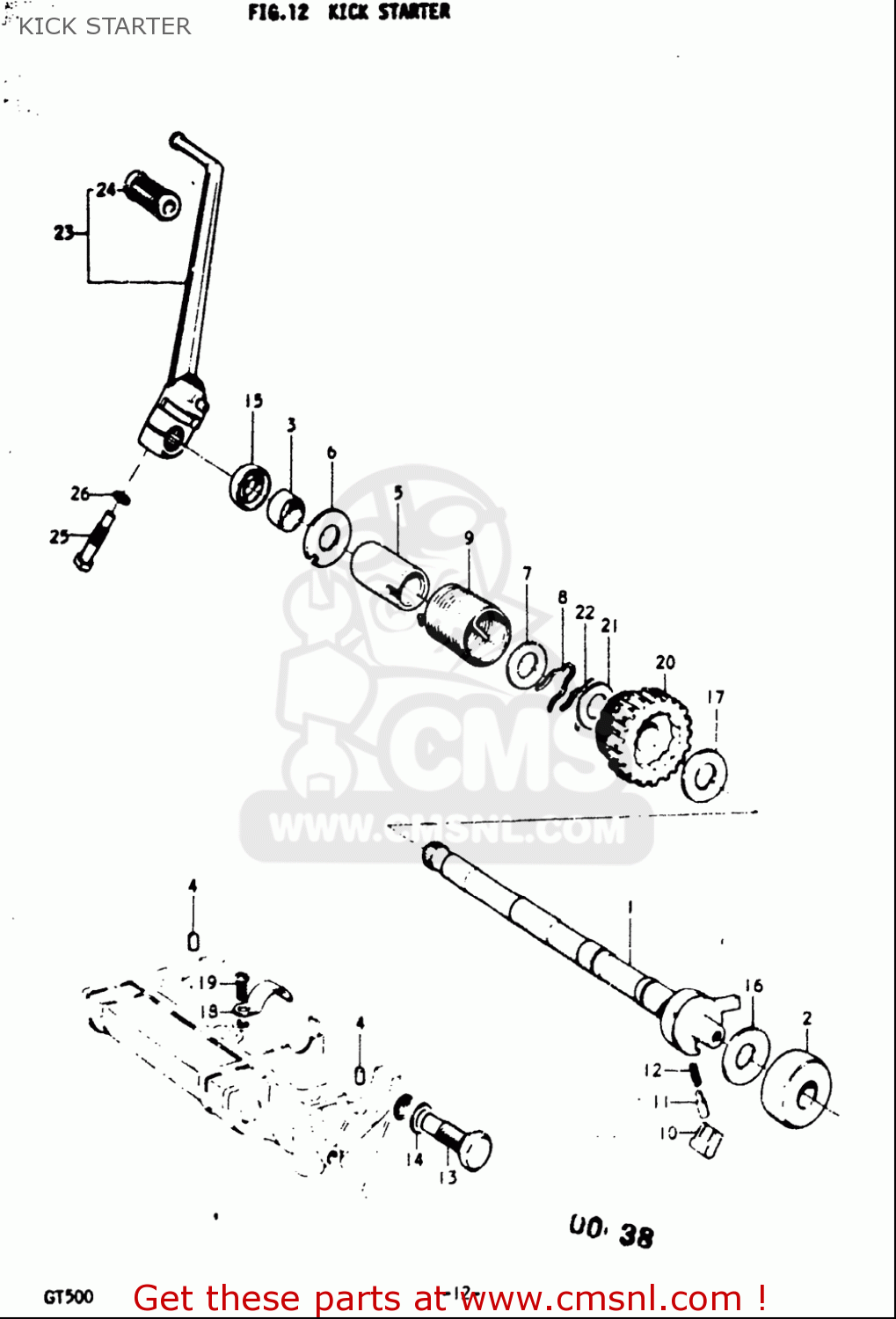

Kick starter diagram GT500 1976 1977 (A) (B) USA (E03)

prices are in EUR

ref

part #

description

quantity

0422107129
ref: 4

PIN

€ 1.50

0916016003
ref: 7

WASHER(16X30X1)

€ 2.50

0944837001
ref: 9

SPRING

€ 16.50

2623120000
ref: 10

PAWL,KICK STARTER

€ 13.50

0920905011
ref: 11

PIN(5X15.5)

€ 2.00

0944004010
ref: 12

SPRING

€ 1.50

0916014055
ref: 14

WASHER(14.5X22X1.6)

€ 2.50

0928516002
ref: 15

SEAL,OIL(16X30X8)

€ 6.50

0916013002
ref: 16

WASHER(13X31.5X1.5)

€ 3.00

0211206127
ref: 19

SCREW

€ 2.00

0916016003
ref: 21

WASHER(16X30X1)

€ 2.50

2635201000
ref: 24

RUBBER,KICK STARTER PEDAL

€ 3.50

0913510002
ref: 25

BOLT(10X37.5)

€ 5.50

0832101107
ref: 26

WASHER,LOCK

€ 2.00
