MAGNETO
GT500 1976 1977 (A) (B) USA (E03)

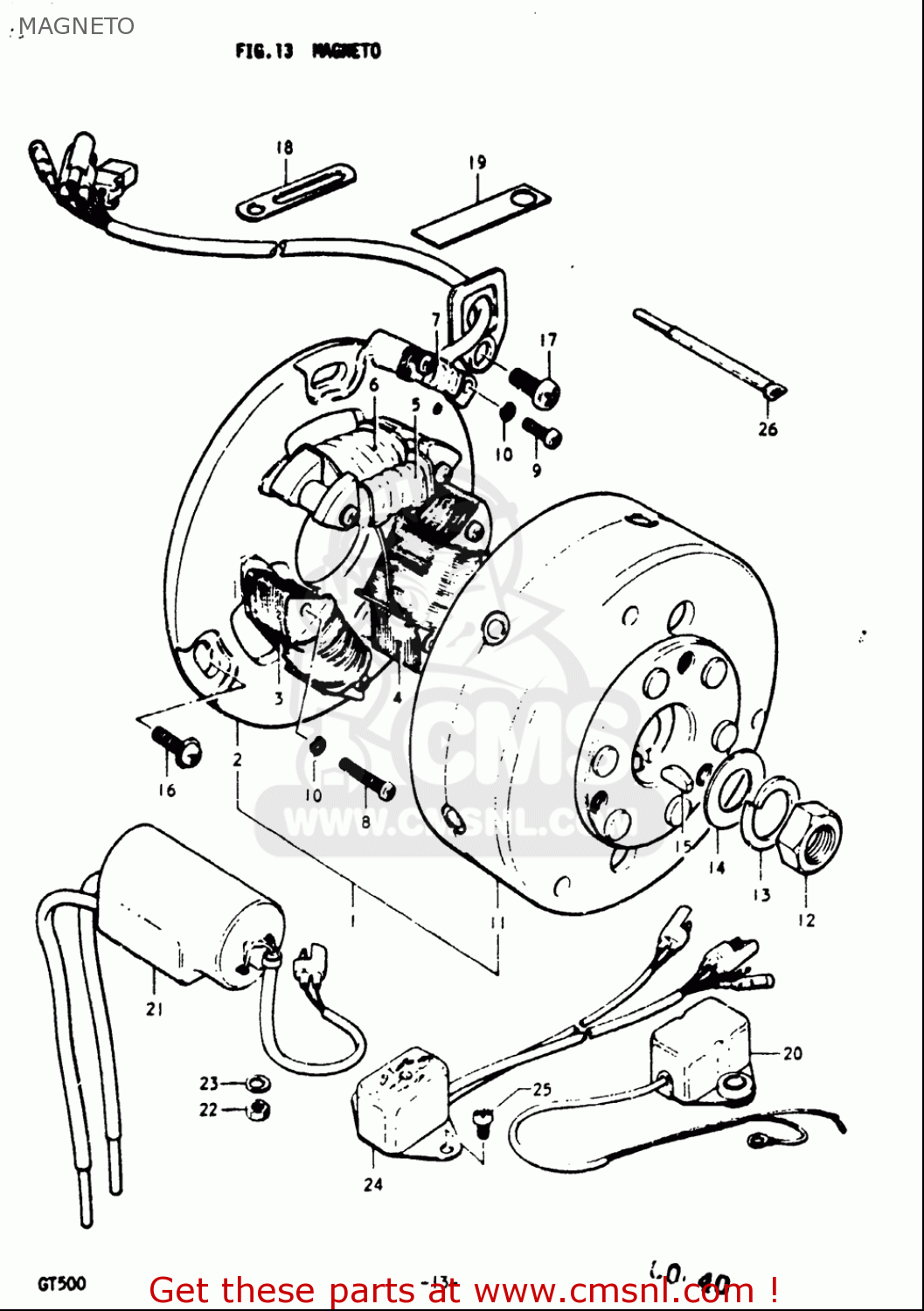

Magneto diagram GT500 1976 1977 (A) (B) USA (E03)
MAGNETO GT500 1976 1977 (A) (B) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
3
3213115320
ref: 3
COIL ASSY,CHARGING NO.1
€ 112.00
4
3213115320
ref: 4
COIL ASSY,CHARGING NO.1
€ 112.00
5
3214115320
ref: 5
COIL ASSY,PRIMARY NO.1
€ 120.00
6
3214215320
ref: 6
COIL ASSY,PRIMARY NO.2
€ 120.00
7
3215015320
ref: 7
COIL,PULSER
€ 102.50
8
0211204353
ref: 8
SCREW
€ 2.00
9
0211204203
ref: 9
SCREW
€ 1.00
10
0832101043
ref: 10
WASHER,LOCK
€ 2.00
12
0914012039
ref: 12
NUT
€ 3.00
13
0832101127
ref: 13
WASHER,LOCK
€ 2.50
14
0832201127
ref: 14
WASHER
€ 2.00
15
0834131039
ref: 15
KEY
€ 2.00
16
0913905011
ref: 16
SCREW(5X14)
€ 3.00
17
0211206107
ref: 17
SCREW
€ 1.50
18
0940406432
ref: 18
CLAMP(L:65)
€ 2.50
19
0940408420
ref: 19
CLAMP(L:120 T:1.0)
€ 3.50
21
3341015321
ref: 21
COIL ASSY,IGNITION
€ 589.50
22
0831000067
ref: 22
NUT
€ 2.50
23
0832201067
ref: 23
WASHER
€ 2.00
24
3290015321
ref: 24
CDI UNIT
€ 509.00
25
0211206087
ref: 25
SCREW
€ 2.00
26
0940718301
ref: 26
CLAMP
€ 6.00
