FENDER
GT500 1976 1977 (A) (B) USA (E03)

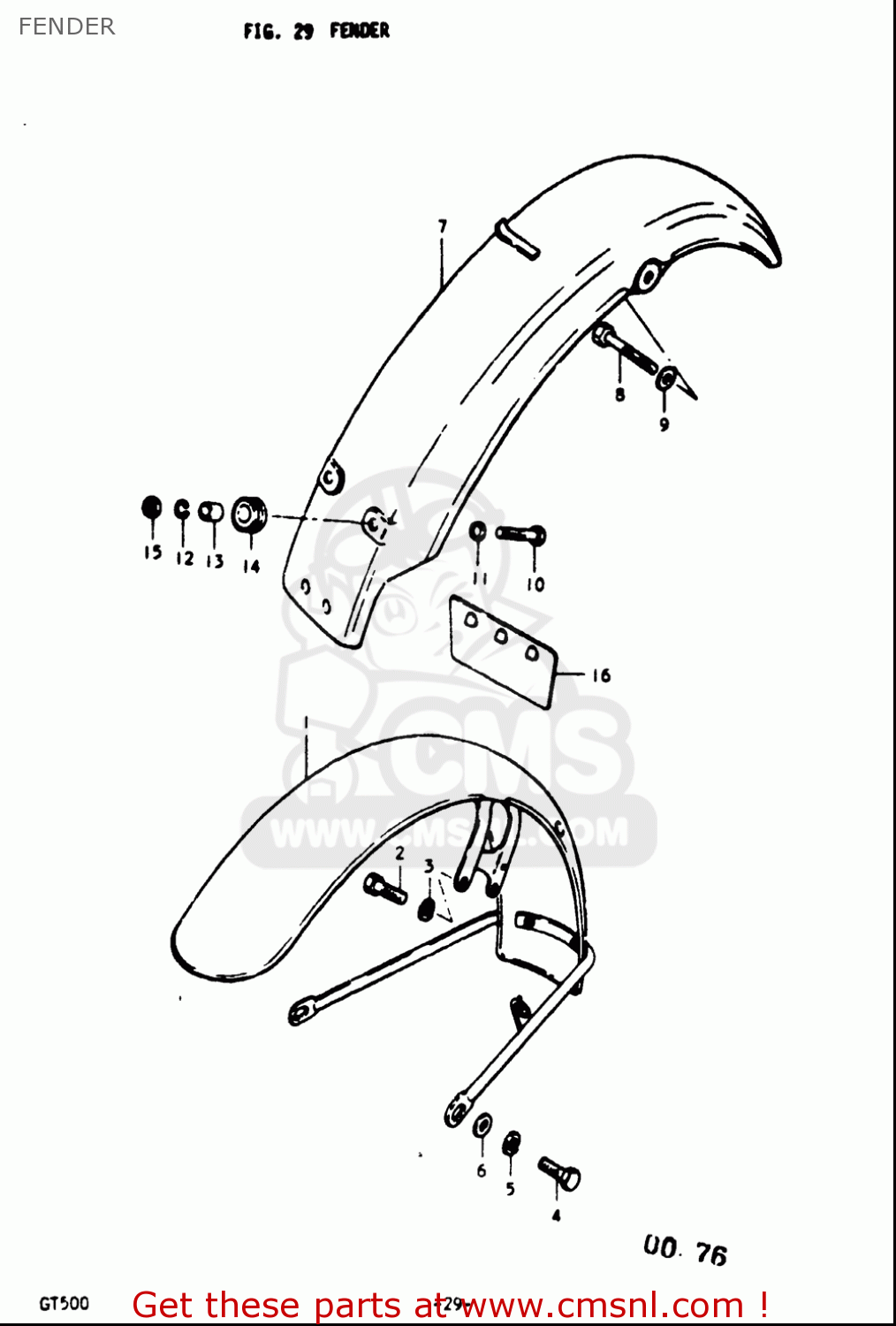

Fender diagram GT500 1976 1977 (A) (B) USA (E03)
FENDER GT500 1976 1977 (A) (B) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5310031702
ref: 1
FENDER ASSY,FR
€ 425.00
2
0150008163
ref: 2
BOLT
€ 2.00
3
0832101087
ref: 3
WASHER,LOCK
€ 2.00
4
0150006167
ref: 4
BOLT
€ 3.00
5
0832101067
ref: 5
WASHER,LOCK
€ 2.50
6
0832201067
ref: 6
WASHER
€ 2.00
8
0150008557
ref: 8
BOLT
€ 3.00
9
0832101087
ref: 9
WASHER,LOCK
€ 2.00
10
0150006207
ref: 10
BOLT
€ 2.00
11
0916006134
ref: 11
WASHER(6.5X24X1.6)
€ 1.50
12
0832101087
ref: 12
WASHER,LOCK
€ 2.00
13
0918006283
ref: 13
SPACER(6.5X10X7)
€ 2.00
14
0932009002
ref: 14
CUSHION
€ 4.00
15
0831000067
ref: 15
NUT
€ 2.50
16
6341115101
ref: 16
GUIDE,RR FENDER MUD
€ 9.00
