prices are in EUR
ref
part #
description
quantity
1-2

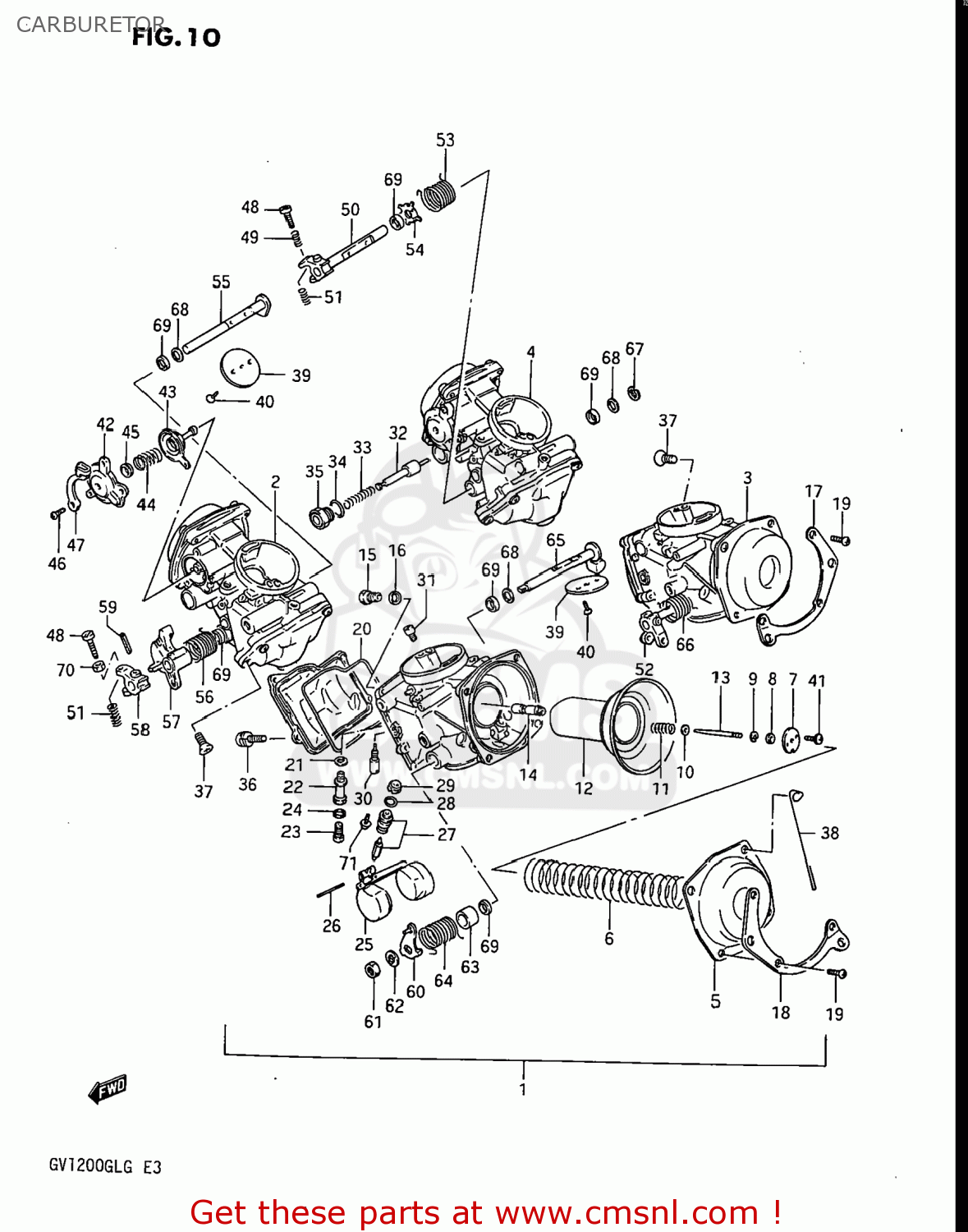

CARBURETOR ASSEMBLY,NO.1 (B
2-2
CARBURETOR ASSEMBLY,NO.2 (B
3-2
CARBURETOR ASSEMBLY,NO.3 (B
4-2
CARBURETOR ASSEMBLY,NO.4 (B
6
SPRING,DIAPHRAGM
7
PLATE
8
RING
9
CLIP,NEEDLE
10
WASHER
11
SPRING
12
DIAPHRAGM,CARBURETOR
15
SCREW
21
GASKET (NAS)
23
JET,MAIN 107,5
25
FLOAT
26
PIN,FLOAT
26
PIN,FLOAT
28
O-RING,NEEDLE VALVE
31
JET,ENRICH
32
PLUNGER
33
SPRING,STARTER PLUNGER
34
O RING
35
HOLDER,GUIDE
36
SCREW
40
SCREW
43
DIAPHRAGM ASSY
46
SCREW
61
NUT 8MM
62-1
WASHER
62-2
LOCK WASHER
67
E RING
68
GASKET,THROTTLE SHAFT (NAS)
69
SEAL,THROTTLE SHAFT
71
SCREW
71
SCREW
