WIRING HARNESS
GV1200GLF MADURA 1985 (F) USA (E03)

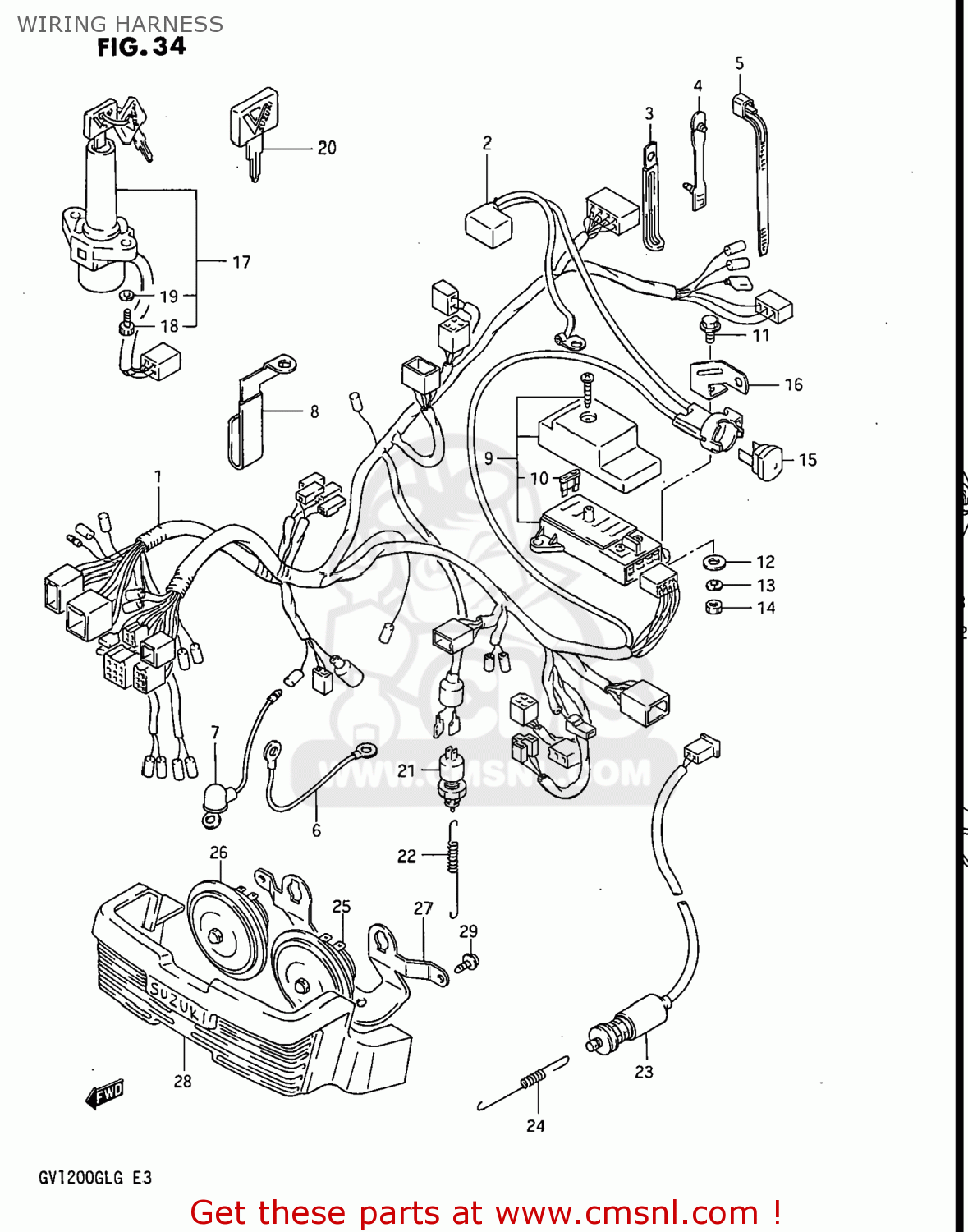

Wiring harness diagram GV1200GLF MADURA 1985 (F) USA (E03)
WIRING HARNESS GV1200GLF MADURA 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3661005A01
ref: 1
36610-05A02
HARNESS,WIRING
€ 142.50
2
3362405A00
ref: 2
CAP,BATTERY PLUS TERMINAL
€ 4.50
3-1
0940406402
ref: 3-1
09404-06432
CLAMP
€ 2.50
3-2
0940406415
ref: 3-2
09404-06433
CLAMP
€ 3.00
4
0940705403
ref: 4
CLAMP,L:88
€ 1.50
5-1
0940711401
ref: 5-1
CLAMP(L:95)
€ 2.50
5-2
0940714403
ref: 5-2
CLAMP(L:125)
€ 2.50
5-3
0940718402
ref: 5-3
CLAMP(L:165)
€ 2.50
5-4
0940725401
ref: 5-4
CLAMP(L:235)
€ 4.00
6
3685105A30
ref: 6
36851-02331
WIRE
€ 6.00
7
3685105A10
ref: 7
36851-38401
WIRE
€ 4.50
8
3665105A20
ref: 8
CLAMP,WIRING HARNESS
€ 3.50
9
3674005A00
ref: 9
36740-27A00
BOX ASSEMBLY,FUSE
€ 77.50
10
0948110101
ref: 10
FUSE(10A)
€ 2.50
11
0151706166
ref: 11
BOLT
€ 2.50
12
0832211066
ref: 12
08322-0106B
WASHER
€ 2.00
13
0832121066
ref: 13
08321-0106A
WASHER,LOCK
€ 2.00
14
0831011066
ref: 14
08310-0006A
NUT
€ 2.00
15
3675005A00
ref: 15
BREAKER ASSY,CIRCUT
€ 36.50
16
3675105A00
ref: 16
BRACKET
€ 2.00
17
3710005A00
ref: 17
SWITCH ASSEMBLY,IGNITION
€ 119.00
18
3715247011
ref: 18
07130-0616B
BOLT
€ 3.00
19
0832121064
ref: 19
08321-0106A
WASHER,LOCK
€ 2.00
20-1
3714605A00
ref: 20-1
37146-03A00
KEY,BLANK
€ 6.00
20-2
3714605A10
ref: 20-2
37146-03A10
KEY,BLANK
€ 6.00
20-3
3714605A20
ref: 20-3
37146-03A20
KEY,BLANK
€ 6.00
20-4
3714605A30
ref: 20-4
37146-03A30
KEY,BLANK
€ 6.00
21
3774007900
ref: 21
37740-24A00
SWITCH ASSEMBLY,STOP LAMP
€ 20.50
22
0944306032
ref: 22
09443-06011
SPRING
€ 6.00
23
3784005A01
ref: 23
SWITCH ASSEMBLY,SIDE STAND
€ 29.00
24
0944306052
ref: 24
09443-06088
SPRING
€ 18.00
25
3850105A01
ref: 25
38501-12B31
HORN ASSEMBLY,HIGH PITCH
€ 49.00
26
3850205A01
ref: 26
38502-12B31
HORN ASSEMBLY,LOW PITCH
€ 35.00
27
3851605A00
ref: 27
BRACKET,HORN
€ 18.50
28-1
3851905A00
ref: 28-1
38519-05A10
COVER,HORN
€ 63.00
28-2
3851905A10
ref: 28-2
COVER,HORN
€ 63.00
29
3855505A00
ref: 29
03541-0516A
SCREW
€ 1.50
