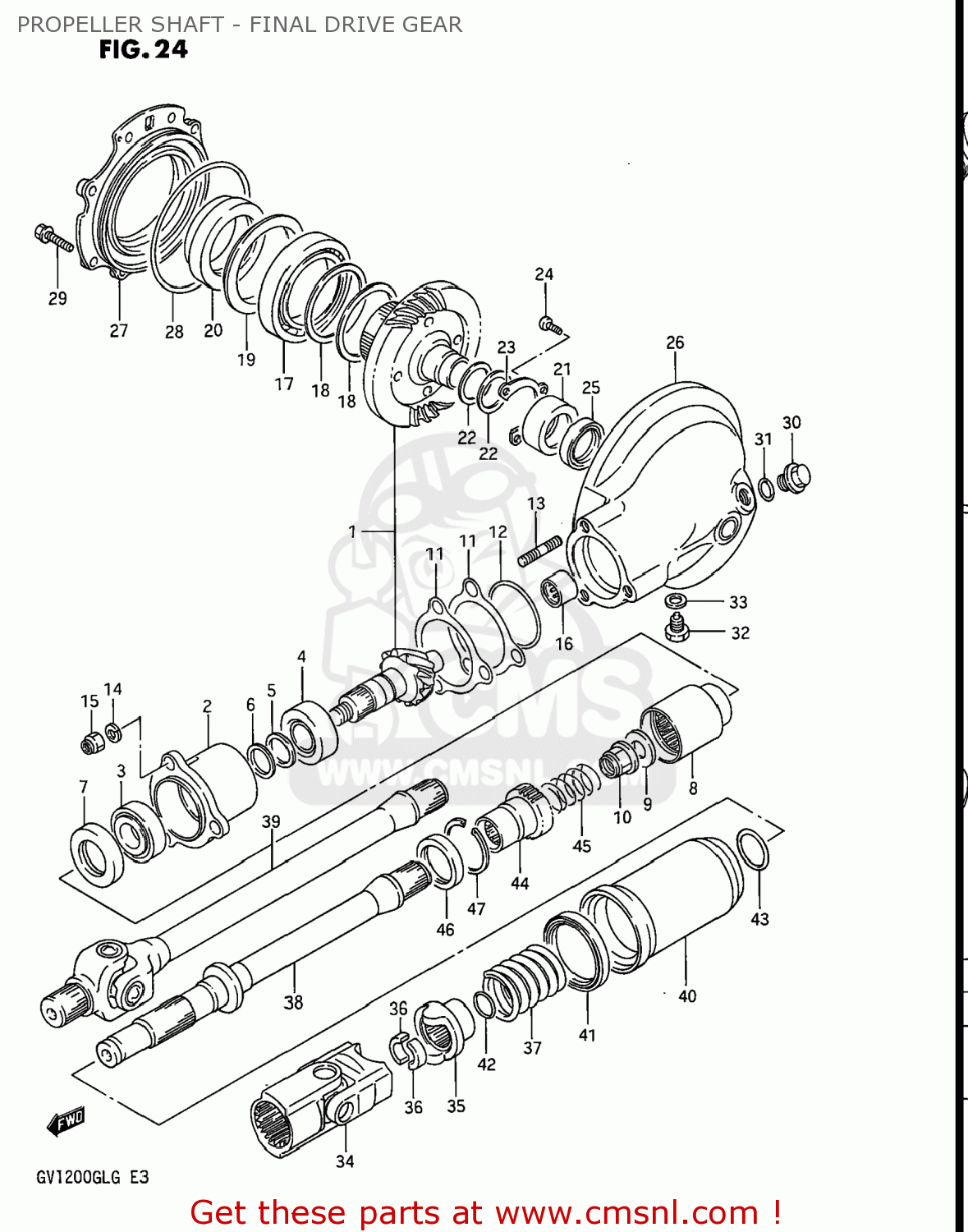

PROPELLER SHAFT - FINAL DRIVE GEAR - GV1200GLF MADURA 1985 (F) USA (E03)

ref

part #

description

quantity

2730005860
ref:

GEAR/CASE SET,FINAL BEVEL

€ 805.00

1

2730005851
ref: 1

GEAR SET,FINAL BEVEL

€ 0.00

2

2744105A00
ref: 2

HOUSING,FINAL BEVEL GEAR

€ 56.50

3

0926525011
ref: 3
09265-25024

BEARING

€ 44.00

4

0926525013
ref: 4

BEARING(25X52X19.25)

€ 48.50

5

0918025071
ref: 5

SPACER

€ 2.50

6-1

0918125006
ref: 6-1

SHIM (25X30X1.6)

€ 3.00

6-2

0918125007
ref: 6-2

SHIM (25X30X1.62)

€ 3.00

6-3

0918125008
ref: 6-3

SHIM (25X30X1.64)

€ 3.00

6-4

0918125009
ref: 6-4

SHIM (25X30X1.66)

€ 3.00

6-5

0918125010
ref: 6-5

SHIM (25X30X1.68)

€ 3.00

6-6

0918125011
ref: 6-6

SHIM (25X30X1.7)

€ 3.00

6-7

0918125012
ref: 6-7

SHIM (25X30X1.8)

€ 3.00

6-8

0918125013
ref: 6-8

SHIM (25X30X1.9)

€ 3.00

6-9

0918125014
ref: 6-9

SHIM (25X30X2

€ 3.00

7

0928332017
ref: 7

SEAL,OIL(32X54X7)

€ 16.50

8

2717245100
ref: 8

GEAR,FINAL DRIVE

€ 47.00

9

0916014021
ref: 9

WASHER(14X29X4)

€ 5.00

10

0915914010
ref: 10

NUT

€ 11.00

11-1

2744545100
ref: 11-1

SHIM,DRIVE GEAR HOUSING

€ 4.00

11-2

2744545102
ref: 11-2

SHIM,DRIVE GEAR HOUSING

€ 4.50

11-3

2744545101
ref: 11-3

SHIM,DRIVE GEAR HOUSING

€ 5.50

11-4

2744545103
ref: 11-4

SHIM,DRIVE GEAR HOUSING

€ 5.50

12

0928063004
ref: 12

O RING(D:2.4,ID:62.6)

€ 9.50

13

0142110308
ref: 13
01421-1030A

STUD 10X30

€ 2.50

14

0832131105
ref: 14
08321-0110A

LOCK WASHER

€ 3.00

15

0915910036
ref: 15
09159-10027

NUT

€ 3.00

16

0926318020
ref: 16

ROLLER BEARING (18X25X2

€ 0.00

17

0926270001
ref: 17

BEARING(70X110X13)

€ 78.50

18-1

2732734200
ref: 18-1

SHIM,DRIVEN GEAR BEARING T0.35

€ 2.50

18-2

2732734210
ref: 18-2

SHIM,DRIVEN GEAR BEARING T.040

€ 3.00

18-3

2732734220
ref: 18-3

SHIM,DRIVEN GEAR BEARING T0.50

€ 3.00

18-4

2732734230
ref: 18-4

SHIM,DRIVEN GEAR BEARING T0.60

€ 3.00

19

2732805A00
ref: 19

PLATE,FINAL DRIVEN GEAR

€ 3.00

20

0928970001
ref: 20

SEAL,OIL(70X96X16)

€ 41.50

21

0926332007
ref: 21

BEARING(32X46X17.7)

€ 44.00

22-1

2732634241
ref: 22-1

SHIM,FINAL DRIVEN GEAR

€ 3.50

22-2

2732634231
ref: 22-2

SHIM,FINAL DRIVEN GEAR

€ 2.50

22-3

2732634221
ref: 22-3

SHIM,FINAL DRIVEN GEAR

€ 3.50

22-4

2732634211
ref: 22-4

SHIM,FINAL DRIVEN GEAR

€ 2.50

22-5

2732634201
ref: 22-5

SHIM,FINAL DRIVEN GEAR

€ 2.50

23

2732934200
ref: 23

RETAINER,FINAL DRIVEN GEAR BRG

€ 4.50

24

0211206128
ref: 24
02112-06127

SCREW 6X12

€ 2.00

25

0928330028
ref: 25

SEAL,OIL(30X42X7)

€ 7.50

26

2745005A00
ref: 26

CASE,FINAL GEAR

€ 277.00

27

2746005A01
ref: 27

CASE,FINAL GEAR BEARING

€ 63.00

28

0928000018
ref: 28

O-RING

€ 4.50

29

0151708258
ref: 29
01550-08257

BOLT

€ 2.50

30

0924718001
ref: 30

PLUG

€ 8.00

31

0928018004
ref: 31

O RING(D:2.4,ID:17.8)

€ 5.50

32

0924714019
ref: 32
09247-14036

PLUG

€ 5.50

33

0916814004
ref: 33

GASKET(14X19.2X2) (NAS)

€ 2.50

34

2710005A02
ref: 34

YOKE,UNIVERSAL JOINT

€ 241.50

35

2714205A00
ref: 35

DOG,OUTPUT CAM

€ 44.00

36

2254134200
ref: 36

STOPPER,CAM DOG

€ 4.50

37

0944035002
ref: 37

SPRING

€ 19.00

38

2715105A03
ref: 38

SHAFT,PROPELLER

€ 86.50

39

2710005A10
ref: 39

YOKE,UNIVERSAL JOINT

€ 113.50

40

2716005A00
ref: 40

COVER,PROPELLER SHAFT DA

€ 43.00

41

0928352003
ref: 41

OIL SEAL

€ 5.50

42

0928016005
ref: 42

O RING(D:2.4,ID:15.8)

€ 1.50

43

0928024006
ref: 43

O RING(D:2,ID:23.5)

€ 1.50

44

2717145101
ref: 44

COUPLING,PROPELLER SHAFT

€ 38.00

45

0944027005
ref: 45

SPRING

€ 3.50

46

0928330026
ref: 46

SEAL,OIL(30X40.5X5.5)

€ 9.00

47

0938140003
ref: 47

CIRCLIP

€ 5.00
