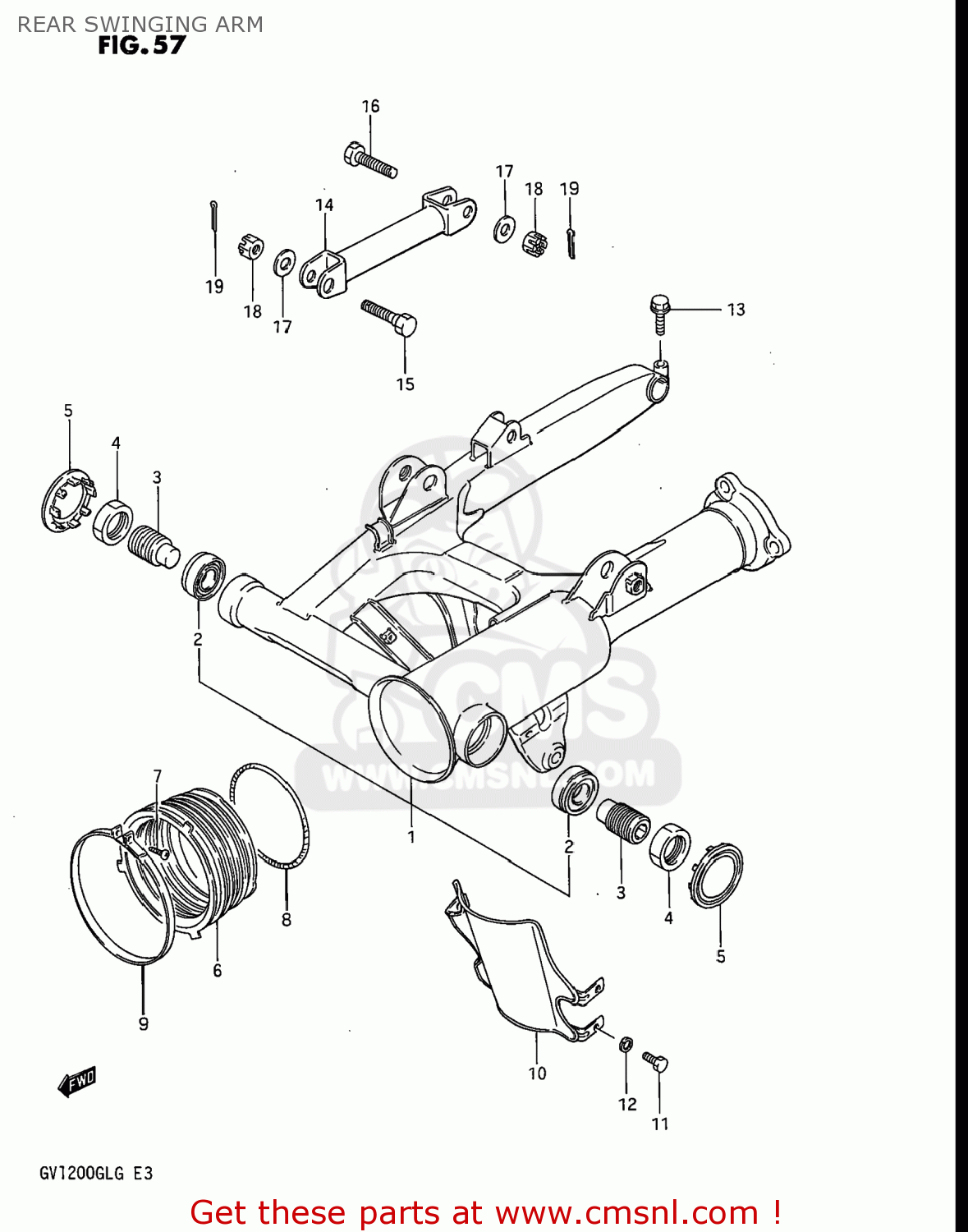

REAR SWINGING ARM

ref

part #

description

quantity

1

6110005810019
ref: 1

ARM,REAR SWING

€ 229.50

2

0926517012
ref: 2

BEARING(17X40X13.25)

€ 35.00

3

6121305A00
ref: 3
61213-24A00

SHAFT,REAR SWING ARM

€ 17.00

4

0914024007
ref: 4

NUT

€ 4.50

5

6122205A01
ref: 5

CAP,RR SWINGING ARM PIVOT NUT

€ 8.00

6

6137205A01
ref: 6

BOOT,PROPELLER SHAFT

€ 24.50

7

0321104255
ref: 7
03211-0425B

SCREW 4X25

€ 2.00

8

6137334300
ref: 8
61373-3430V

SPRING,PROPELLER SHAFT

€ 6.50

9

0940200304
ref: 9
09402-00303

CLAMP

€ 5.00

10

6128505A00
ref: 10

NO PRODUCT DESCRIPTION AVAILABLE

€ 11.50

11

0110706106
ref: 11
01500-0610B

BOLT

€ 2.00

12

0832121066
ref: 12
08321-0106A

WASHER,LOCK

€ 2.00

13

0151708254
ref: 13
01550-0825A

BOLT

€ 2.50

14

6431005A00019
ref: 14

LINK,REAR TORQUE

€ 12.50

15

0911110011
ref: 15
09111-10022-XC0

BOLT

€ 8.00

16

0910110017
ref: 16

BOLT(10X39)

€ 5.00

17

0832211104
ref: 17
08322-0110A

WASHER 10MM

€ 2.50

18

0831441108
ref: 18
08314-4010B

NUT

€ 2.50

19

0411120208
ref: 19
04111-2020A

PIN 20X20

€ 1.50
