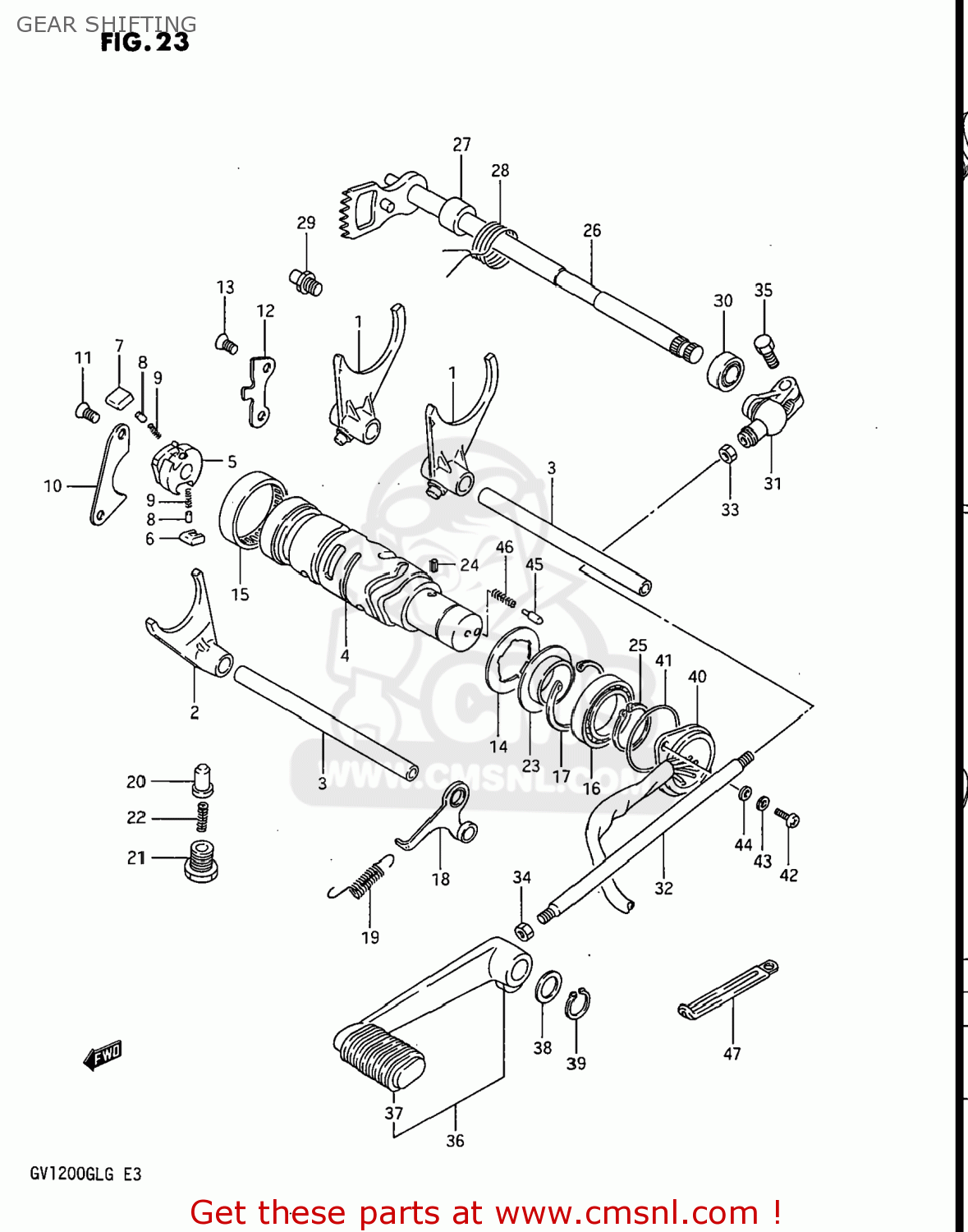

GEAR SHIFTING

ref

part #

description

quantity

1

2521105A01
ref: 1

FORK,GEAR SHIFT NO.1

€ 61.50

2

2523105A00
ref: 2

FORK,GEAR SHIFT NO.3

€ 40.50

3

2541105A00
ref: 3
25411-05A01

SHAFT,GEAR SHIFT FORK

€ 8.50

4

2531005A00
ref: 4

CAM,GEAR SHIFT

€ 128.00

5

2532231301
ref: 5
25322-31310

GEAR,GEARSHIFT CAM DRIVE

€ 14.50

6

2532334200
ref: 6
25323-34201

PAWL,GEAR SHIFT NO.1

€ 6.00

7

2532434200
ref: 7
25324-34201

PAWL,GEAR SHIFT NO.2

€ 6.00

8

0926105003
ref: 8

PIN(5X8)

€ 1.50

9

0944004003
ref: 9

SPRING

€ 1.50

10

2533105A00
ref: 10

LIFTER, PAWL

€ 0.00

11

0212206128
ref: 11
02122-06127

SCREW

€ 3.00

12

2534105A00
ref: 12

GUIDE,GEAR SHIFTING CABLE

€ 0.00

13

0212206128
ref: 13
02122-06127

SCREW

€ 3.00

14

0916730007
ref: 14

WASHER,LOCK

€ 2.50

15

0926343001
ref: 15

BEARING(43X49X12)

€ 30.00

16

0811069050
ref: 16
08113-69050

BALL BEARING

€ 36.00

17

0833141428
ref: 17
08331-4142A

CIRCLIP,42MM

€ 1.50

18

2535005A00
ref: 18

STOPPER,GEAR SHIFTING

€ 0.00

19

0944309020
ref: 19

SPRING

€ 0.00

20

2535131302
ref: 20
25351-30010

STOPPER,GEAR SHIFTING

€ 6.50

21

2535430000
ref: 21

HOLDER,GEAR SHIFT CAM STOP SPR

€ 6.50

22

0944006027
ref: 22

SPRING

€ 3.00

23

2538138400
ref: 23

PLATE,STOPPER

€ 22.00

24

0621104063
ref: 24
04221-04069

PIN 4X6

€ 2.00

25

0833131258
ref: 25
08331-3125A

CIRCLIP,25MM

€ 2.00

26-1

2551005A01
ref: 26-1
25510-05A02

SHAFT,GEAR SHIFT

€ 40.50

26-2

2551005A10
ref: 26-2

SHAFT,GEAR SHIFT

€ 29.00

27

0918012068
ref: 27

SPACER(12X20X15.3)

€ 3.00

28

0944426020
ref: 28

SPRING

€ 6.00

29

2567101000
ref: 29
25671-01011

STOPPER,GEAR SHIFT CAM

€ 3.00

30

0928512002
ref: 30
09285-12006

OIL SEAL

€ 7.00

31

2552009301
ref: 31

ARM,GEAR SHIFT SHAFT

€ 53.50

32

2552505A00
ref: 32
25525-05A10

ROD,GEAR SHIFT LINK

€ 12.00

33

0914006011
ref: 33

NUT

€ 1.50

34

0831011067
ref: 34
08310-00067

NUT 6MM

€ 2.50

35

0110706207
ref: 35
01500-06207

BOLT

€ 2.00

36

2560005A01
ref: 36

LEVER ASSEMBLY,GEAR SHIFTING

€ 48.50

37

2565249000
ref: 37
25652-20C00

RUBBER,GEAR SHIFT PEDAL

€ 8.00

38

0916012011
ref: 38

WASHER(12.5X20X1)

€ 1.50

39

0833131128
ref: 39
08331-3112A

CIRCLIP

€ 2.00

40

3772031301
ref: 40

TERMINAL BASE,NEUTRAL

€ 51.50

41

0928036001
ref: 41

O RING(D:2.4,ID:36.5)

€ 4.50

42

0912505102
ref: 42

SCREW(5X14)

€ 2.50

43

0832121057
ref: 43
08321-0105A

LOCK WASHER

€ 2.00

44

0832221057
ref: 44
08322-01057

WASHER

€ 2.50

45

0920905011
ref: 45

PIN(5X15.5)

€ 2.00

46

0944004010
ref: 46

SPRING

€ 1.50

47

0940406415
ref: 47
09404-06433

CLAMP

€ 3.00
