CRANKCASE COVER
GV1400GD 1987 (H) (E01)

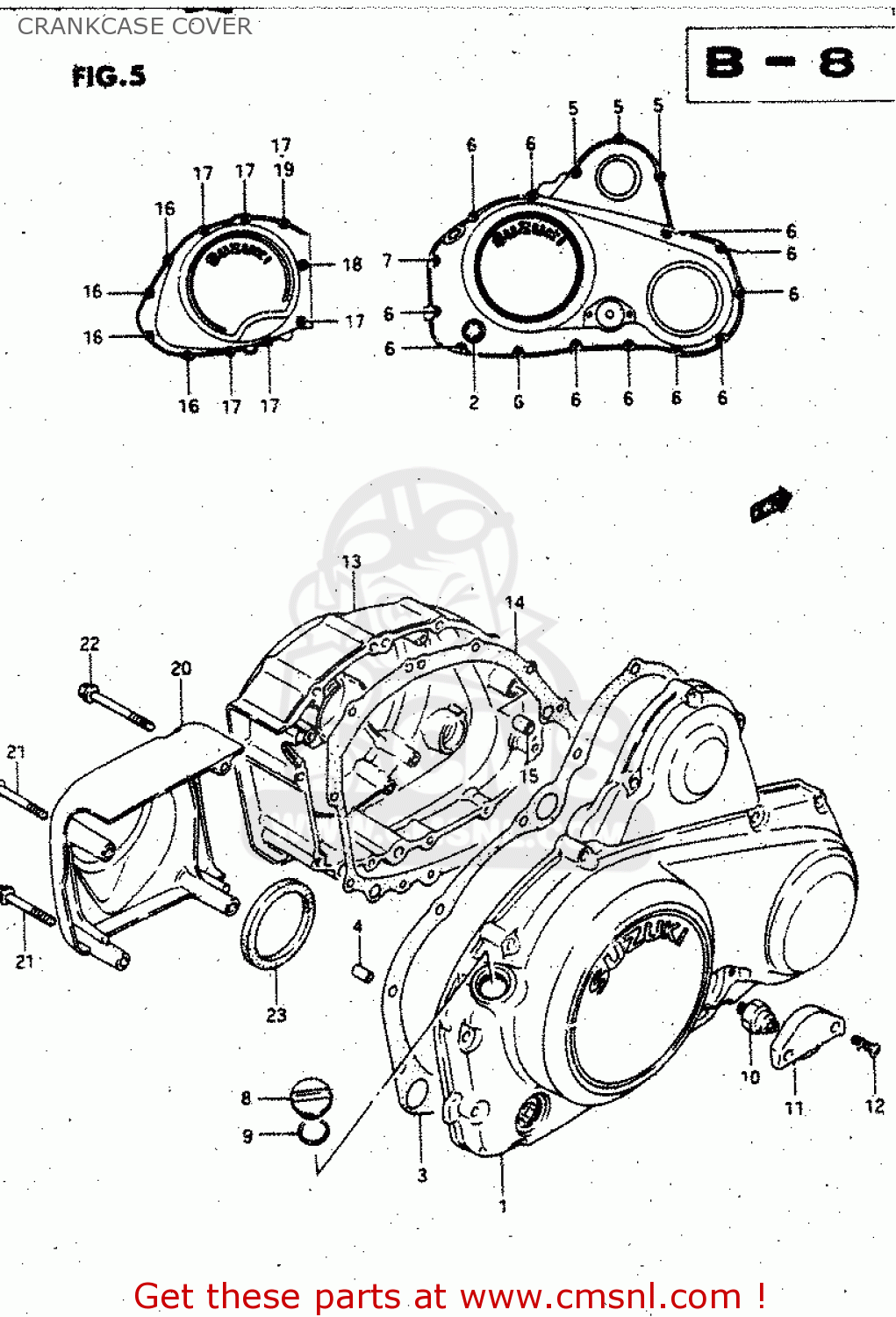

Crankcase cover diagram GV1400GD 1987 (H) (E01)
CRANKCASE COVER GV1400GD 1987 (H) (E01)
×
prices are in EUR
ref
part #
description
quantity
1
1134024A10
ref: 1
COVER COMP,CLUTCH
€ 333.00
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
€ 13.50
3
1148205A01
ref: 3
GASKET,CLUTCH COVER (MCA)
€ 25.50
4
0421109169
ref: 4
PIN
€ 1.50
5
0154706307
ref: 5
BOLT
€ 2.50
6
0154706357
ref: 6
BOLT
€ 2.50
7
0154706457
ref: 7
BOLT
€ 2.50
8
0925920014
ref: 8
Chrome Oil Fill Cap
€ 10.00
9
0928017003
ref: 9
O RING(D:3.1,ID:16.8)
€ 2.00
10
3782033200
ref: 10
SWITCH ASSEMBLY
€ 29.00
11
1138405A10
ref: 11
CAP,OIL PRESSURE SWITCH
€ 22.50
12
0912705010
ref: 12
SCREW (L:20)(SUS)
€ 0.00
13
1135124A11
ref: 13
COVER,GENERATOR
€ 259.00
14
1148324A00
ref: 14
GASKET,MAGNETO COVER (MCA)
€ 16.50
15
0920611005
ref: 15
PIN (11X20)(SUS)
€ 6.50
16
0154706307
ref: 16
BOLT
€ 2.50
17
0154706707
ref: 17
BOLT
€ 2.50
18
0154706757
ref: 18
BOLT
€ 2.50
19
0916806023
ref: 19
GASKET(5.8X13X1.2) (NAS)
€ 2.00
20
1136124A11
ref: 20
COVER,SECONDARY DRIVE
€ 149.50
21
0154706657
ref: 21
BOLT
€ 2.00
22
0154706707
ref: 22
BOLT
€ 2.50
23
1136924A02
ref: 23
DAMPER,SECONDARY COVER
€ 4.00
