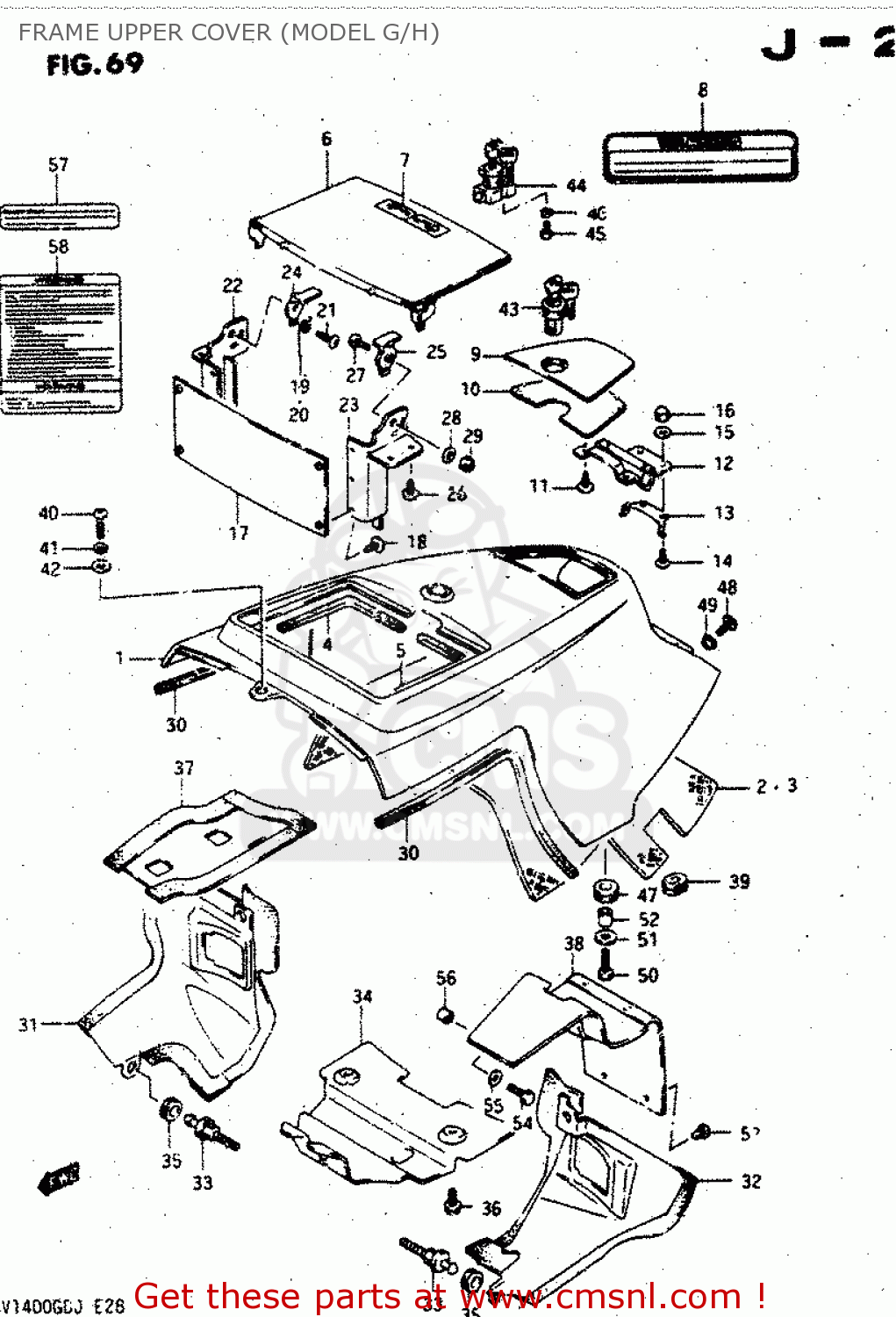

FRAME UPPER COVER (MODEL G/H)

ref

part #

description

quantity

1-1

4730024A0024G
ref: 1-1
MODEL G

COVER ASSEMBLY,FRAME,UPPER

€ 940.00

1-2

4730024A0024H
ref: 1-2
MODEL G

COVER ASSEMBLY,FRAME,UPPER

€ 940.00

1-3

4730024A0027U
ref: 1-3
MODEL G

COVER ASSEMBLY,FRAME,UPPER

€ 0.00

1-4

4730024A0020H
ref: 1-4
MODEL H

COVER ASSEMBLY,FRAME,UPPER

€ 940.00

1-5

4730024A0034B
ref: 1-5
MODEL H

COVER ASSEMBLY,FRAME,UPPER

€ 940.00

2

4731524A01
ref: 2

CUSHION,FRAME COVER,UPPER

€ 46.00

3

4731624A01
ref: 3

CUSHION,FRAME COVER,UPPER

€ 46.00

4

4739124A01
ref: 4

CUSHION,AUDIO LID SIDE

€ 0.00

5

4739224A01
ref: 5

CUSHION,AUDIO LID SIDE

€ 0.00

6-1

473002482024G
ref: 6-1
MODEL G

LID SET,AUDIO

€ 77.50

6-2

473002482024H
ref: 6-2
MODEL G

LID SET,AUDIO

€ 230.50

6-3

473002482027U
ref: 6-3
MODEL G

LID SET,AUDIO

€ 0.00

6-4

473002484020H
ref: 6-4
MODEL H

COVER ASSEMBLY,FRAME,UPPER

€ 275.00

6-5

473002484034B
ref: 6-5
MODEL H

COVER ASSEMBLY,FRAME,UPPER

€ 275.00

7

6828224A007ZW
ref: 7

EMBLEM,AUDIO LID

€ 9.00

8-1

6861724A00
ref: 8-1
MODEL G

LABEL (WARNING AUDIO LI

€ 0.00

8-2

6861724A10
ref: 8-2
MODEL G

LABEL, WARNING (FRENCH)

€ 0.00

8-3

6861824A00
ref: 8-3
MODEL H

LABEL (WARNING COVER CO

€ 0.00

8-4

6861824A10
ref: 8-4
MODEL H

LABEL, WARNING (FRENCH)

€ 0.00

9-1

4738024A0024G
ref: 9-1
MODEL G

LID,FUEL

€ 28.00

9-2

4738024A0024H
ref: 9-2
MODEL G

LID,FUEL

€ 28.00

9-3

4738024A0027U
ref: 9-3
MODEL G

LID,FUEL

€ 28.00

9-4

4738024A0020H
ref: 9-4
MODEL H

LID,FUEL

€ 28.00

9-5

4738024A0034B
ref: 9-5
MODEL H

LID,FUEL

€ 28.00

10

4738524A00
ref: 10

CUSHION,FUEL LID (NA)

€ 0.00

11

0354105083
ref: 11

SCREW 5X8

€ 2.00

12

4738224A01
ref: 12

HINGE,FUEL LID

€ 16.00

13

4738824A00
ref: 13

SPRING,FUEL LID HINGE

€ 6.00

14

0214204105
ref: 14

SCREW

€ 1.50

15

0832221045
ref: 15

WASHER

€ 5.00

16

0831311045
ref: 16

NUT

€ 0.00

17

4763524A01
ref: 17

HOLDER,AUDIO LID

€ 15.00

18

0354105125
ref: 18

SCREW

€ 2.00

19

0944407001
ref: 19

SPRING

€ 0.00

20

0944407002
ref: 20

SPRING

€ 2.50

21

0354104125
ref: 21

SCREW

€ 1.50

22

4763324A00
ref: 22

RAIL,RIGHT

€ 14.00

23

4763424A00
ref: 23

RAIL,LEFT

€ 13.50

24

4763124A01
ref: 24

RAIL PIECE,RIGHT

€ 8.50

25

4763224A01
ref: 25

RAIL PIECE,LEFT

€ 3.00

26

0354105108
ref: 26

SCREW, RAIL

€ 1.50

27

0211205165
ref: 27

SCREW

€ 2.00

28

0821205161
ref: 28

WASHER

€ 1.50

29

0831921055
ref: 29

NUT 8MM

€ 1.50

30

4738924A01
ref: 30

MOLDING,COVER FRAME,UPPER

€ 8.00

31-1

4781024A00
ref: 31-1
MODEL G ~F.NO.104470

COVER,INNER,RIGHT

€ 43.00

31-2

4781024A01
ref: 31-2
MODEL G F.NO.104471~

COVER,INNER,RIGHT

€ 43.00

32-1

4782024A00
ref: 32-1
MODEL G ~F.NO.104470

COVER,INNER,LEFT

€ 42.00

32-2

4782024A01
ref: 32-2
MODEL G F.NO.104471~

COVER,INNER,LEFT

€ 42.00

33

4725038A01
ref: 33

BOSS,FRAME COVER

€ 6.50

34

4785024A00
ref: 34

COVER COMP,INNER

€ 65.50

35

0932008013
ref: 35

CUSHION

€ 4.00

36

0151706128
ref: 36

BOLT

€ 2.50

36

4783024A00
ref: 36

COVER COMP,UPPER,RIGHT

€ 20.00

38

4784024A00
ref: 38

COVER COMP,UPPER,LEFT

€ 29.50

39

0930805019
ref: 39

GROMMET

€ 8.00

40

0211206203
ref: 40

SCREW, 6X20

€ 2.00

41

0832121063
ref: 41

LOCK WASHER

€ 2.00

42

0916006039
ref: 42

WASHER (6.5X18X1.6)

€ 2.00

43

9570024820
ref: 43

LOCK SET,TOOL HOLDER

€ 61.50

44

9570024A21KEY
ref: 44

LOCK ASSEMBLY,AUDIO LID

€ 69.00

45

0211203087
ref: 45

SCREW

€ 1.50

46

0832121038
ref: 46

LOCK WASHER

€ 1.50

47

0932008018
ref: 47

CUSHION

€ 4.00

48

0214206164
ref: 48

SCREW

€ 2.50

49

0916906034
ref: 49

WASHER

€ 2.50

50

0110706256
ref: 50

BOLT

€ 2.50

51

0832221066
ref: 51

WASHER, LOWER

€ 2.00

52

0918006044
ref: 52

SPACER (6.1X8X9.5)

€ 2.50

53

0922906004
ref: 53

RIVET

€ 0.00

54

0110706207
ref: 54

BOLT

€ 2.00

55

0916006052
ref: 55

WASHER(6.5X16X1.2)

€ 2.00

56

0918006141
ref: 56

SPACER (6.5X12X8)

€ 4.00

57-1

6861424A01
ref: 57-1

LABEL (WARNING AUDIO BO

€ 0.00

57-2

6861424A10
ref: 57-2

LABEL, WARNING (FRENCH)

€ 0.00

58-1

6861624A02
ref: 58-1
MODEL G

LABEL (WARNING ACCESS &

€ 0.00

58-2

6861624A11
ref: 58-2
MODEL G

LABEL, WARNING (FRENCH)

€ 0.00

58-3

6861624A20
ref: 58-3
MODEL H

LABEL (WARNING)

€ 0.00

58-4

6861624A30
ref: 58-4
MODEL H

LABEL, WARNING (FRENCH)

€ 0.00
