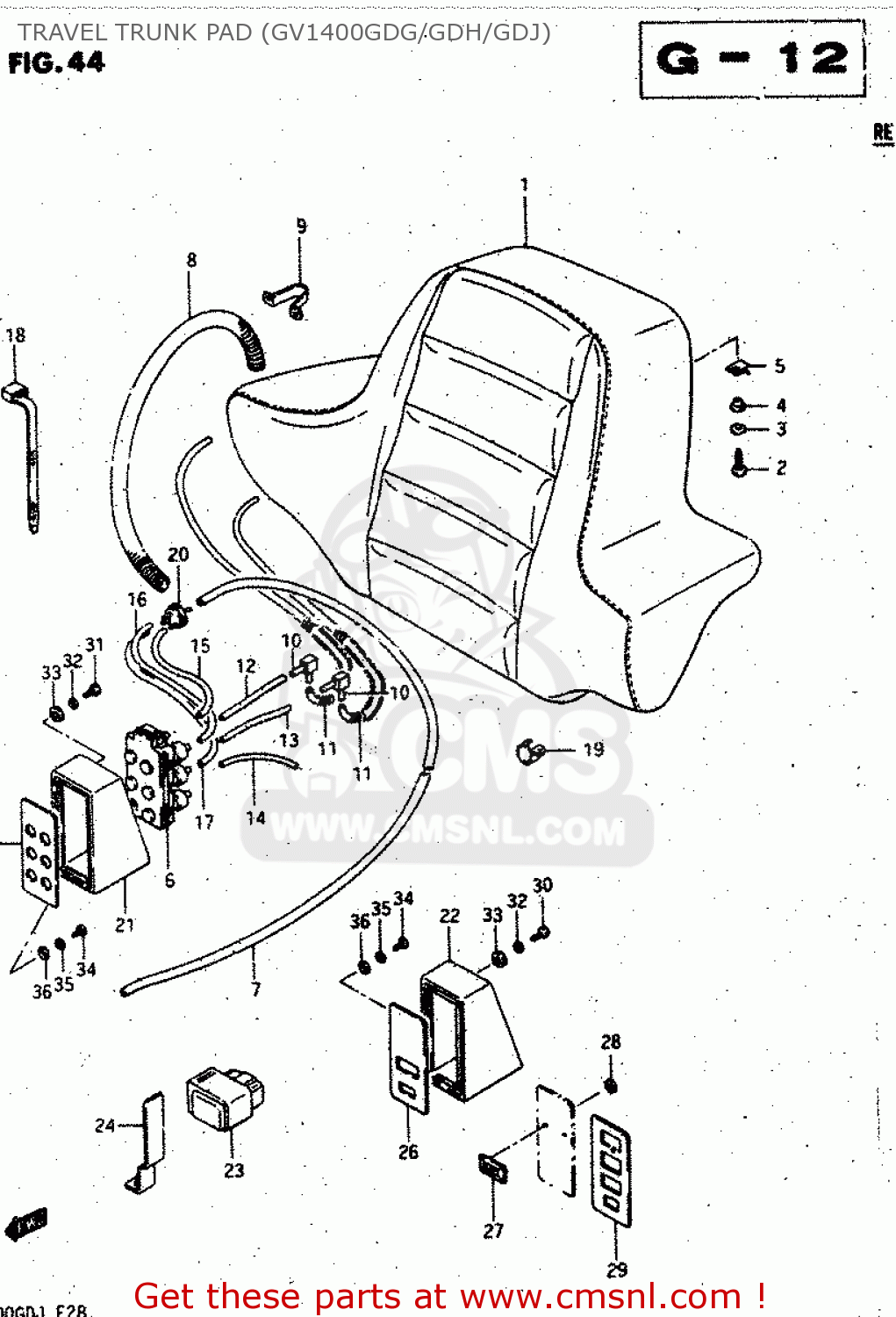

TRAVEL TRUNK PAD (GV1400GDG/GDH/GDJ)

ref

part #

description

quantity

1-1

4535024A014FT
ref: 1-1
MODEL G FOR 7UM

PAD ASSEMBLY

€ 377.50

1-2

4535024A017VD
ref: 1-2
MODEL G FOR 7UN

PAD ASSEMBLY

€ 377.50

1-3

4535024A034FT
ref: 1-3
MODEL H/J

PAD ASSEMBLY,TRAVEL TRUNK

€ 377.50

2

0314105205
ref: 2

SCREW

€ 1.50

3

0916006069
ref: 3

WASHER

€ 2.00

4

4535824A10
ref: 4

SEAL,PAD ASSEMBLY,RIGHT

€ 0.00

5

0914805019
ref: 5

NUT

€ 2.00

6-1

4540024A00
ref: 6-1
MODEL G

VALVE ASSEMBLY,SEAT

€ 617.50

6-2

4540024A01
ref: 6-2
MODEL H/J

VALVE ASSEMBLY,SEAT

€ 617.50

7

4542024A00
ref: 7

MOLDING,SEAT,LEFT

€ 0.00

8-1

4542724A00
ref: 8-1
MODEL G

PROTECTOR, TRUNK HOSE

€ 0.00

8-2

4542724A02
ref: 8-2
MODEL H/J

PROTECTOR, TRUNK HOSE

€ 0.00

9

4542824A00
ref: 9

HOLDER, TRUNK HOSE

€ 0.00

10

0936704005
ref: 10

UNION

€ 4.00

11

0944007052
ref: 11

SPRING

€ 0.00

12

4542224A10
ref: 12

HOSE, OUTLET NO.1

€ 0.00

13

4542224A20
ref: 13

HOSE, OUTLET NO.2

€ 0.00

14

4542224A30
ref: 14

HOSE, OUTLET NO.3

€ 0.00

15

4542324A10
ref: 15

HOSE, INLET NO.1

€ 0.00

16

4542324A20
ref: 16

HOSE, INLET NO.2

€ 0.00

17

4542324A30
ref: 17

HOSE, INLET NO.3

€ 0.00

18

0940718402
ref: 18

CLAMP(L:165)

€ 2.50

19

0940320301
ref: 19

CLAMP

€ 2.00

20

0936704004
ref: 20

4-WAY

€ 11.50

21-1

4544024A004FT
ref: 21-1
MODEL G FOR 7UM

PAD ASSEMBLY,TRAVEL TRUNK

€ 63.00

21-2

4544024A004FS
ref: 21-2
MODEL G FOR 7UN

PAD ASSEMBLY,TRAVEL TRUNK

€ 63.00

21-3

4544024A014FT
ref: 21-3
MODEL H/J

PAD ASSEMBLY,TRAVEL TRUNK

€ 63.00

22-1

4545024A004FT
ref: 22-1
MODEL G FOR 7UM

PAD ASSEMBLY,TRAVEL TRUNK

€ 60.00

22-2

4545024A004FS
ref: 22-2
MODEL G FOR 7UN

PAD ASSEMBLY,TRAVEL TRUNK

€ 66.50

22-3

4545024A014FT
ref: 22-3
MODEL H/J

PAD ASSEMBLY,TRAVEL TRUNK

€ 60.00

23

4547024A00
ref: 23

RELAY ASSEMBLY,SEAT

€ 47.00

24

4543024A00
ref: 24

BRACKET, SEAT RELAY

€ 0.00

25

4548024A00
ref: 25

PANEL COMP,VALVE ASSEMBLY

€ 37.00

26

4548024A10
ref: 26

PANEL COMP,TUNER ASSEMBLY

€ 35.00

27

6822124A00
ref: 27

EMBLEM

€ 11.50

28

0914803002
ref: 28

NUT

€ 3.00

29

4548024A90
ref: 29
OPT

PANEL,TUNER ASSEMBLY NO

€ 0.00

30

0110405125
ref: 30

BOLT, PAD UPPER LH

€ 1.50

31

0110405165
ref: 31

BOLT, PAD

€ 1.50

32

0832121055
ref: 32

WASHER,LOCK

€ 3.00

33

0916905010
ref: 33

WASHER

€ 3.00

34

0211204128
ref: 34

SCREW

€ 1.50

35

0832121047
ref: 35

WASHER,LOCK 4M

€ 2.00

36

0832221047
ref: 36

WASHER 4MM

€ 2.00
