FUEL TANK
GV1400GD 1987 (H) (E01)

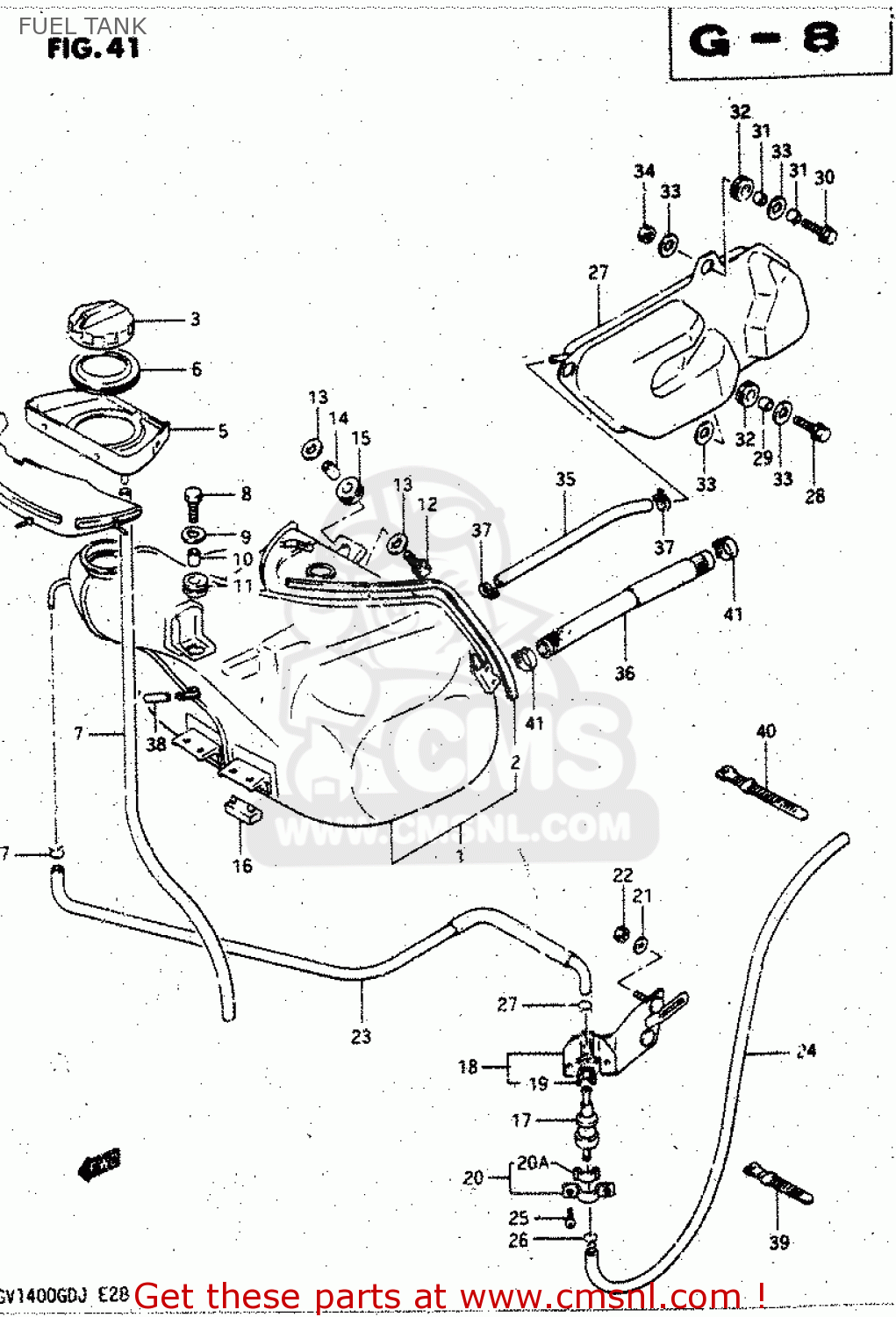

Fuel tank diagram GV1400GD 1987 (H) (E01)
FUEL TANK GV1400GD 1987 (H) (E01)
×
prices are in EUR
ref
part #
description
quantity
1
4410024A00019
ref: 1
TANK ASSEMBLY,FUEL
€ 814.00
2-1
6824124A00
ref: 2-1
MOLDING,FUEL TANK
€ 10.00
2-2
6824224A00
ref: 2-2
MOLDING, NO.2
€ 10.00
2-3
6824324A00
ref: 2-3
MOLDING, NO.3
€ 10.00
3
4420024A00
ref: 3
CAP ASSEMBLY,FUEL TANK
€ 43.50
4
4426224A00
ref: 4
COVER,FUEL INLET TRAY
€ 15.50
5
4411924A00
ref: 5
TRAY, FUEL INLET
€ 5.00
6
4426124A00
ref: 6
JOINT,FUEL INLET,TRAY
€ 5.00
7-1
0934307093
ref: 7-1
MODEL G/H
HOSE
€ 24.50
7-2
0935270113655
ref: 7-2
MODEL J
HOSE
€ 24.50
8
0110706206
ref: 8
BOLT,M6X1X20
€ 2.00
9
0916006020
ref: 9
WASHER
€ 2.00
10-1
0918006038
ref: 10-1
MODEL G
SPACER(6.1X9X7.5)
€ 2.00
10-2
0918006103
ref: 10-2
MODEL H/J
SPACER(6.2X9X7.5)
€ 1.50
11
0932008007
ref: 11
CUSHION
€ 4.00
12
0110708258
ref: 12
BOLT
€ 2.50
13
0916008002
ref: 13
WASHER (8.5X29X1.6)
€ 2.00
14
0918008077
ref: 14
SPACER (8.6X13.8X8)
€ 4.50
15
0932013005
ref: 15
CUSHION
€ 4.50
16
0932108013
ref: 16
CUSHION
€ 0.00
17
4424038A00
ref: 17
VALVE,FUEL TANK BREATHER
€ 35.00
18-1
4489024A00
ref: 18-1
MODEL G
PLATE,FUEL TANK BREATHER
€ 0.00
18-2
4489024A01
ref: 18-2
MODEL H/J
PLATE,TANK BREATHER VALVE
€ 0.00
19
4489424A00
ref: 19
CUSHION
€ 1.50
20
4489224A00
ref: 20
PLATE,FUEL TANK BREATHER NO.2
€ 3.00
20A
4489424A00
ref: 20A
CUSHION
€ 1.50
21
0916006056
ref: 21
WASHER(6.5X18X1)
€ 2.00
22
0831921068
ref: 22
NUT 6MM
€ 2.00
23
0934305373
ref: 23
HOSE
€ 0.00
24
0934305414
ref: 24
HOSE
€ 3.50
25
0214204103
ref: 25
SCREW
€ 1.50
26
0940111410
ref: 26
(CA) CLIP
€ 2.50
27
4911024A00
ref: 27
SUB TANK,FUEL
€ 98.00
28
0910308199
ref: 28
BOLT
€ 2.50
29
0918008001
ref: 29
SPACER (8.8X12X11)
€ 2.00
30
0151708405
ref: 30
BOLT 8X40
€ 3.50
31
0918008033
ref: 31
SPACER(8.4X12X12)
€ 2.50
32
0932011008
ref: 32
CUSHION
€ 3.00
33
0916008067
ref: 33
WASHER
€ 2.00
34
0831931085
ref: 34
NUT
€ 2.50
35
0934313008
ref: 35
HOSE
€ 0.00
36
0934307105
ref: 36
HOSE, BREATHER
€ 0.00
37-1
0940215501
ref: 37-1
MODEL G
CLAMP
€ 8.00
37-2
0940215502
ref: 37-2
MODEL H/J
CLAMP
€ 8.00
38-1
0934408014
ref: 38-1
MODEL G/H
HOSE
€ 5.50
38-2
0935180902048
ref: 38-2
MODEL J
HOSE
€ 5.50
39
0940714403
ref: 39
CLAMP(L:125)
€ 2.50
40
0940718401
ref: 40
CLAMP(L:187)
€ 2.00
41
0940225502
ref: 41
CLAMP
€ 8.50
