SIDE BAG (MODEL J)
GV1400GD 1987 (H) (E01)

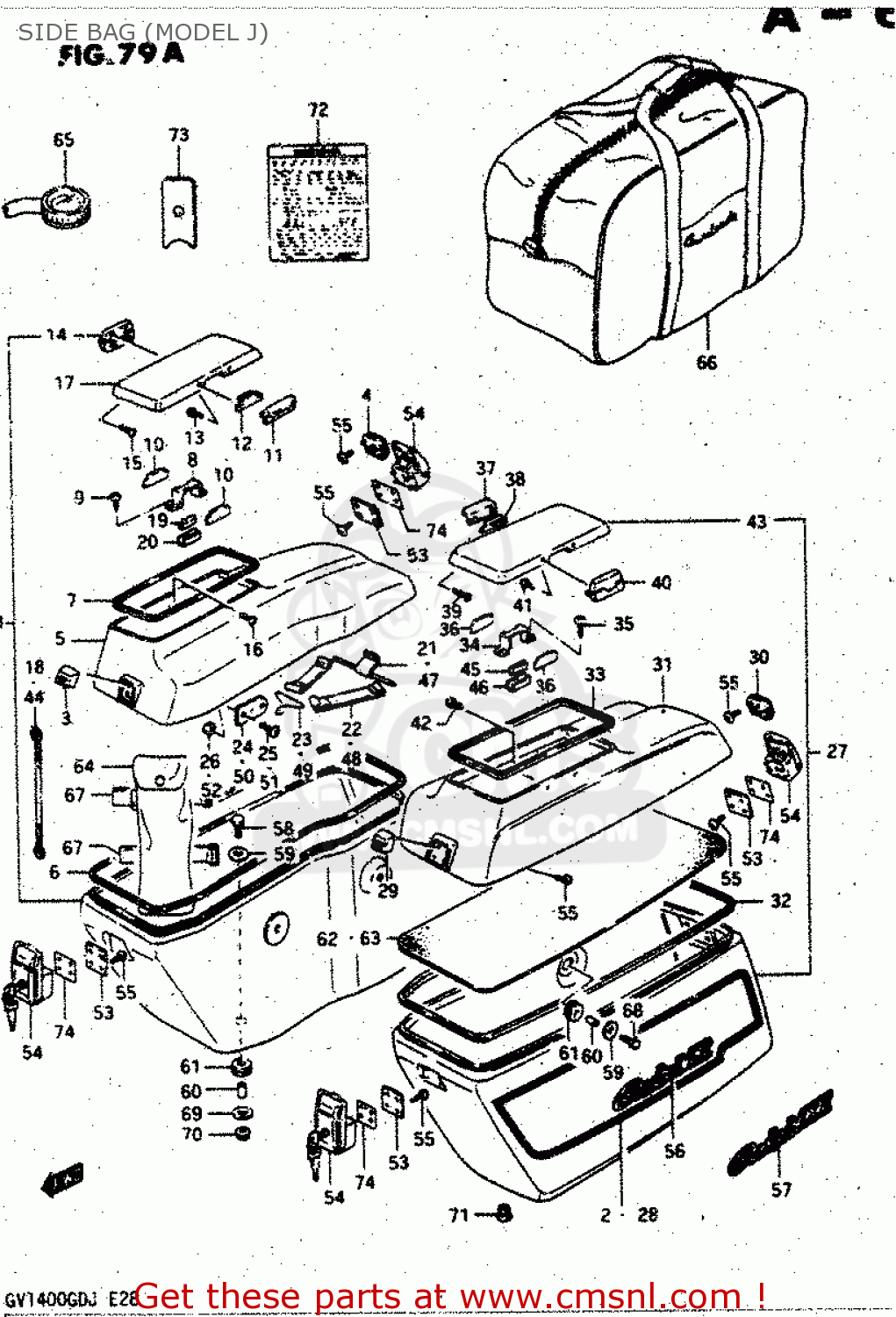

Side bag (model j) diagram GV1400GD 1987 (H) (E01)
SIDE BAG (MODEL J) GV1400GD 1987 (H) (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
9540024A7020H
ref: 1-1
GV1400GDJ
BAG ASSEMBLY,SIDE,RIGHT
€ 1,033.00
1-2
9540024A7038G
ref: 1-2
GV1400GDJ
BAG ASSEMBLY,SIDE,RIGHT
€ 1,033.00
1-3
9540024A6124D
ref: 1-3
GV1400GCJ
SIDE BAG ASSEMBLY,RIGHT
€ 531.00
1-4
9540024A6113Z
ref: 1-4
GV1400GCJ
SIDE BAG ASSEMBLY,RIGHT
€ 531.00
2-1
6826024A409VJ
ref: 2-1
GV1400GDJ,FOR 20H
TAPE SET,SIDE BAG,RIGHT
€ 0.00
2-2
6826024A409VK
ref: 2-2
GV1400GDJ,FOR 38G
TAPE SET,SIDE BAG,RIGHT
€ 0.00
2-3
6826024A309EA
ref: 2-3
GV1400GCJ,FOR 24D
TAPE SET,SIDE BAG STRIP
€ 0.00
2-4
6826024A309EB
ref: 2-4
GV1400GCJ,FOR 13Z
TAPE SET,SIDE BAG STRIP
€ 0.00
3
9331624A02
ref: 3
PLATE,TRUNK LID LOCK
€ 15.00
4
9331624A13
ref: 4
PLATE,SIDE BAG LID LOCK
€ 15.00
5-1
9544024A2020H
ref: 5-1
GV1400GDJ,FOR 20H
LID,SIDE BAG,RIGHT
€ 433.50
5-2
9544024A2038G
ref: 5-2
GV1400GDJ,FOR 38G
LID,SIDE BAG,RIGHT
€ 0.00
5-3
9544024A1024D
ref: 5-3
GV1400GCJ,FOR 24D
LID,SIDE BAG,RIGHT
€ 433.50
5-4
9544024A1013Z
ref: 5-4
GV1400GCJ,FOR 13Z
LID,SIDE BAG,RIGHT
€ 433.50
6
9542224A01
ref: 6
SEAL,SIDE BAG
€ 10.50
7
9544624A02
ref: 7
SEAL,SIDE BAG
€ 9.00
8
9551624A00
ref: 8
HOLDER,LID LOCK MAGNET
€ 4.00
9
0351103125
ref: 9
SCREW
€ 0.00
10
9542324A10
ref: 10
PLATE,LID LOCK
€ 4.00
11
9544724A00
ref: 11
LEVER,SIDE POCKET OPEN
€ 19.50
12
9542424A00
ref: 12
PLATE,LID LOCK NO.1
€ 4.50
13
0214204065
ref: 13
SCREW
€ 1.50
14
9544324A00
ref: 14
HINGE,LID SIDE BAG POCKET
€ 47.00
15
0214204065
ref: 15
SCREW
€ 1.50
16
0214204125
ref: 16
SCREW
€ 1.50
17
9544824A00
ref: 17
LID,SIDE BAG POCKET
€ 65.50
18
9319124A00
ref: 18
BAND,SIDE BAG LID
€ 8.00
19
9544924A00
ref: 19
MAGNET
€ 0.00
20
9551724A00
ref: 20
BOX, HOLDER
€ 3.00
21
9547024A00
ref: 21
GV1400GCJ
PLATE,LUGGAGE BAND LID
€ 8.50
22
9547424A00
ref: 22
GV1400GCJ
BAND,LUGGAGE LID
€ 13.00
23
9547524A00
ref: 23
GV1400GCJ
.HOOK
€ 4.50
24
9547324A00
ref: 24
GV1400GCJ
PLATE, FRONT
€ 4.50
25
0214205124
ref: 25
GV1400GCJ
SCREW, FRONT & REAR
€ 1.50
26
0831321055
ref: 26
GV1400GCJ
NUT 5MM
€ 1.50
27-1
9550024A7020H
ref: 27-1
GV1400GDJ
SIDE BAG ASSEMBLY,LEFT
€ 531.00
27-2
9550024A7038G
ref: 27-2
GV1400GDJ
BAG ASSEMBLY,SIDE,LEFT
€ 531.00
27-3
9550024A6124D
ref: 27-3
GV1400GCJ
SIDE BAG ASSEMBLY,LEFT
€ 531.00
27-4
9550024A6113Z
ref: 27-4
GV1400GCJ
SIDE BAG ASSEMBLY,LEFT
€ 531.00
28-1
6829024A409VJ
ref: 28-1
GV1400GDJ,FOR 20H
TAPE SET,SIDE BAG,LEFT
€ 72.00
28-2
6829024A409VK
ref: 28-2
GV1400GDJ,FOR 38G
TAPE SET
€ 0.00
28-3
6829024A309EA
ref: 28-3
GV1400GCJ,FOR 24D
TAPE SET,SIDE BAG STRIP
€ 0.00
28-4
6829024A309EB
ref: 28-4
GV1400GCJ,FOR 13Z
TAPE SET,SIDE BAG STRIP
€ 0.00
29
9331624A02
ref: 29
PLATE,TRUNK LID LOCK
€ 15.00
30
9331624A13
ref: 30
PLATE,SIDE BAG LID LOCK
€ 15.00
31-1
9554024A2020H
ref: 31-1
GV1400GDJ,FOR 20H
LID,SIDE BAG,LEFT
€ 389.50
31-2
9554024A2038G
ref: 31-2
GV1400GDJ,FOR 38G
LID,SIDE BAG,LEFT (MAROON)
€ 389.50
31-3
9554024A1024D
ref: 31-3
GV1400GCJ,FOR 24D
LID,SIDE BAG,LEFT
€ 389.50
31-4
9554024A1013Z
ref: 31-4
GV1400GCJ,FOR 13Z
LID,SIDE BAG,LEFT
€ 0.00
32
9542224A01
ref: 32
SEAL,SIDE BAG
€ 10.50
33
9544624A02
ref: 33
SEAL,SIDE BAG
€ 9.00
34
9551624A00
ref: 34
HOLDER,LID LOCK MAGNET
€ 4.00
35
0351103125
ref: 35
SCREW
€ 0.00
36
9542324A10
ref: 36
PLATE,LID LOCK
€ 4.00
37
9544724A00
ref: 37
LEVER,SIDE POCKET OPEN
€ 19.50
38
9542424A00
ref: 38
PLATE,LID LOCK NO.1
€ 4.50
39
0214204065
ref: 39
SCREW
€ 1.50
40
9544324A00
ref: 40
HINGE,LID SIDE BAG POCKET
€ 47.00
41
0214204065
ref: 41
SCREW
€ 1.50
42
0214204125
ref: 42
SCREW
€ 1.50
43
9544824A00
ref: 43
LID,SIDE BAG POCKET
€ 65.50
44
9319124A00
ref: 44
BAND,SIDE BAG LID
€ 8.00
45
9544924A00
ref: 45
MAGNET
€ 0.00
46
9551724A00
ref: 46
BOX, HOLDER
€ 3.00
47
9547024A00
ref: 47
GV1400GCJ
PLATE,LUGGAGE BAND LID
€ 8.50
48
9547424A00
ref: 48
GV1400GCJ
BAND,LUGGAGE LID
€ 13.00
49
9547524A00
ref: 49
GV1400GCJ
.HOOK
€ 4.50
50
9547324A00
ref: 50
GV1400GCJ
PLATE, FRONT
€ 4.50
51
0214205124
ref: 51
GV1400GCJ
SCREW, FRONT & REAR
€ 1.50
52
0831321055
ref: 52
GV1400GCJ
NUT 5MM
€ 1.50
53
9312424A00
ref: 53
SET PLATE,LOCK SIDE BA
€ 5.00
54
9331024A01KEY
ref: 54
LOCK ASSY, SIDE BAG
€ 96.50
55
0214205085
ref: 55
SCREW
€ 2.00
56
6826124A10
ref: 56
GV1400GDJ
EMBLEM,SIDE BAG,RIGHT
€ 29.00
57
6826124A20
ref: 57
GV1400GCJ
EMBLEM
€ 25.00
58
0110706307
ref: 58
BOLT 6X30
€ 2.50
59
0916006030
ref: 59
WASHER (6.5X29X1.6)
€ 2.50
60
0918006055
ref: 60
SPACER(6.3X9.3X16.5)
€ 4.00
61
0932009017
ref: 61
CUSHION
€ 3.00
62
9541624A00
ref: 62
SEAT, BOTTOM RH
€ 13.50
63
9541724A00
ref: 63
SEAT, BOTTOM LH
€ 13.50
64
0980000293
ref: 64
TOOL ASSY
€ 448.50
65
9620041330
ref: 65
GAUGE ASSY,AIR PRESSURE
€ 77.50
66
9545024A01
ref: 66
LUGGAGE BAG,SIDE BAG
€ 131.50
67
0946200040
ref: 67
BAND
€ 4.50
68
0910406004
ref: 68
BOLT(6X30)
€ 3.00
69
0916006013
ref: 69
WASHER (6.5X18X2)
€ 10.50
70
0831931067
ref: 70
NUT
€ 2.50
71
0925008013
ref: 71
CAP(OD:12)
€ 2.00
72-1
6861324A20
ref: 72-1
LABEL (WARNING TRAVEL T
€ 0.00
72-2
6861324A30
ref: 72-2
LABEL, WARNING (FRENCH)
€ 0.00
73
0981300038
ref: 73
SPANNER
€ 0.00
74
9331424A01
ref: 74
PACKING SEAT
€ 3.50
