FRONT FORK (MODEL G)
GV1400GD 1987 (H) (E01)

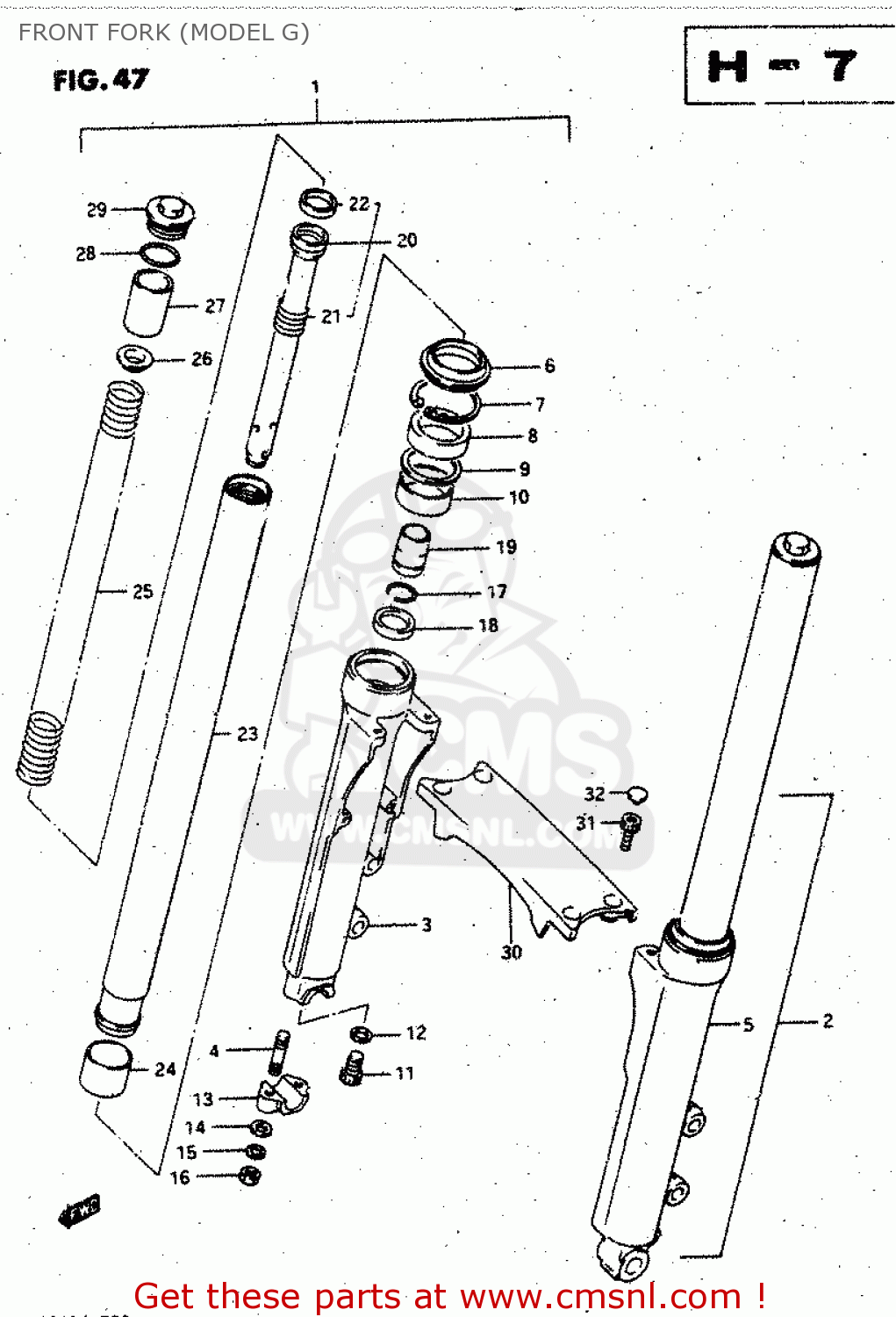

Front fork (model g) diagram GV1400GD 1987 (H) (E01)
FRONT FORK (MODEL G) GV1400GD 1987 (H) (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
5110324A00
ref: 1-1
~F.NO.103764
DAMPER ASSEMBLY,RIGHT
€ 801.00
1-2
5110324A01
ref: 1-2
F.NO.103765~
DAMPER ASSEMBLY,FRONT FORK,RIGHT
€ 801.00
2-1
5110424A00
ref: 2-1
~F.NO.103764
DAMPER ASSEMBLY,LEFT
€ 604.50
2-2
5110424A01
ref: 2-2
F.NO.103765~
DAMPER ASSEMBLY,FRONT FORK,LEFT
€ 604.50
3-1
5113024A00
ref: 3-1
~F.NO.103764
TUBE,OUTER,RIGHT
€ 403.00
3-2
5113024A01
ref: 3-2
F.NO.103765~
TUBE,OUTER,RIGHT
€ 403.00
4
0141108308
ref: 4
STUD 8X30
€ 2.00
5-1
5114024A00
ref: 5-1
~F.NO.103764
TUBE,OUTER,LEFT
€ 403.00
5-2
5114024A01
ref: 5-2
F.NO.103765~
TUBE,OUTER,LEFT
€ 403.00
6
5117305A00
ref: 6
DUST SEAL,FRONT FORK
€ 18.50
7
5115649440
ref: 7
RING,OIL SEAL STOPPER
€ 5.50
8
5115305A00
ref: 8
OIL SEAL,FRONT FORK
€ 22.00
9
5115805A00
ref: 9
WASHER,FORK OIL SEAL
€ 5.00
10
5116705A00
ref: 10
METAL,SLIDE
€ 20.50
11
5114740300
ref: 11
BOLT,CYLINDER
€ 5.50
12
5114840300
ref: 12
GASKET,CYLINDER (NAS)
€ 2.50
13
5113249440
ref: 13
HOLDER,AXLE
€ 28.00
14
0832211088
ref: 14
WASHER
€ 2.00
15
0832121088
ref: 15
LOCK WASHER
€ 2.00
16
0914008005
ref: 16
NUT (8MM)
€ 1.50
17
5119805A00
ref: 17
RING,SNAP
€ 0.00
18
5119324A00
ref: 18
VALVE
€ 12.50
19
5119524A00
ref: 19
PIECE,OIL LOCK
€ 0.00
20
5114624A00
ref: 20
CYLINDER
€ 84.00
21
5117724A00
ref: 21
SPRING,REBOUND
€ 5.50
22
5119605A00
ref: 22
RING,PISTON
€ 7.50
23
5111024A00
ref: 23
TUBE,INNER
€ 290.00
24
5112105A00
ref: 24
METAL,SLIDE FR FORK
€ 20.50
25
5117124A00
ref: 25
SPRING
€ 51.00
26
5117224A00
ref: 26
GUIDE,SPRING
€ 3.00
27
5117624A00
ref: 27
SPACER,SPRING
€ 6.50
28
5111740300
ref: 28
O RING
€ 2.50
29
5135124A00
ref: 29
BOLT,FORK
€ 35.50
30-1
5311524A00
ref: 30-1
~F.NO.103764
BRACE,FORK
€ 71.00
30-2
5311524A01
ref: 30-2
F.NO.103765~
BRACE,FORK
€ 71.00
31
0711008168
ref: 31
BOLT
€ 3.00
32
0925006009
ref: 32
CAP(OD:14.5)
€ 3.50
