ELECTRICAL

GV1400GD 1987 (H) (E01)

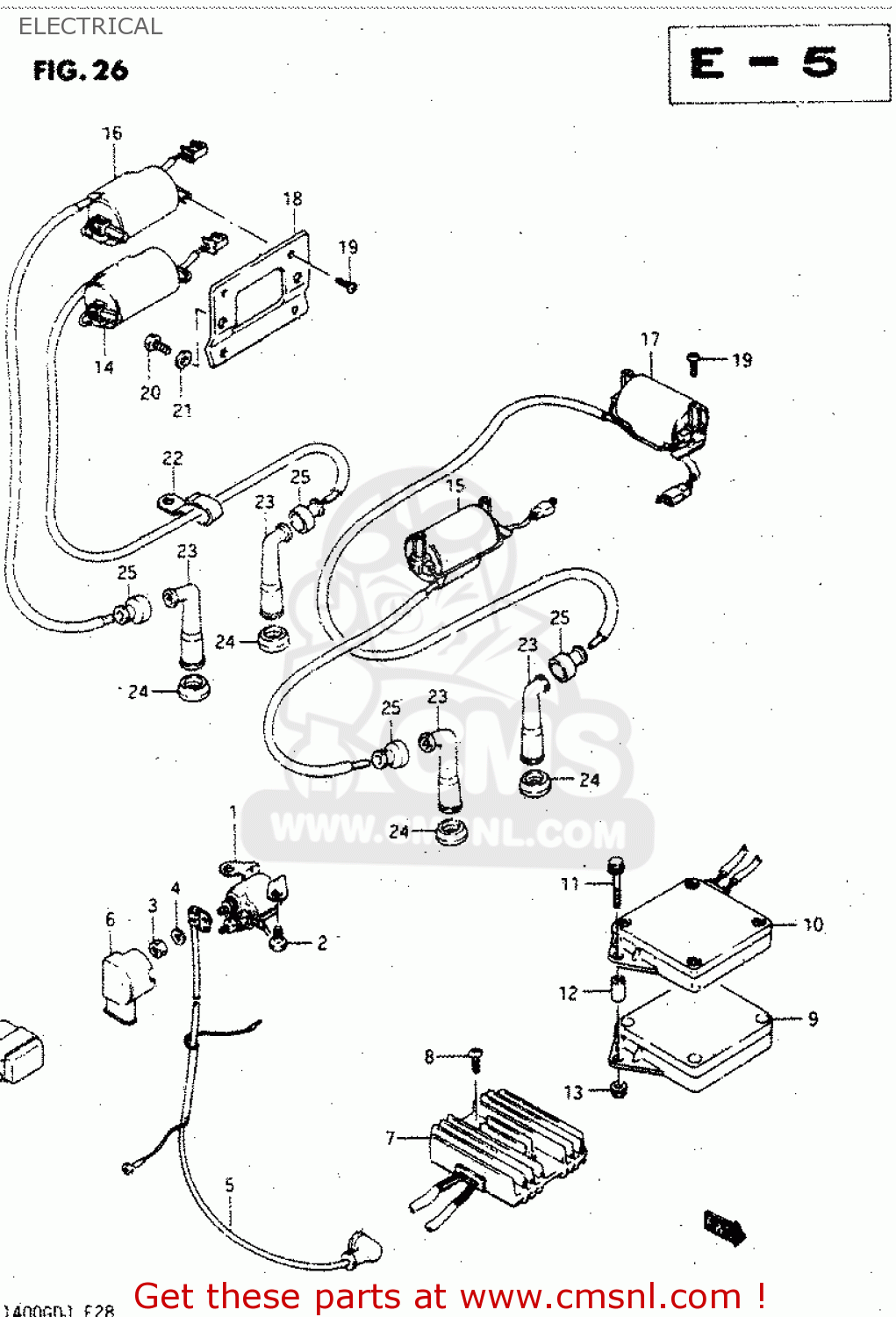

Electrical diagram GV1400GD 1987 (H) (E01)

ELECTRICAL GV1400GD 1987 (H) (E01)

ELECTRICAL GV1400GD 1987 (H) (E01)

prices are in EUR

ref

part #

description

quantity

1

3180015500
ref: 1

RELAY ASSEMBLY,STARTING MOTOR

€ 78.00

2-1

0910006011
ref: 2-1
MODEL G

BOLT(6X8)

€ 2.50

2-2

0110406086
ref: 2-2
MODEL H/J

BOLT

€ 2.50

3

0831011066
ref: 3

NUT

€ 2.00

4

0332121066
ref: 4

LOCK WASHER

€ 0.00

5

3385024A01
ref: 5

WIRE,STARTER MOTOR LEAD

€ 57.50

6

3362449420
ref: 6

CAP,STARTER RELAY TERMINAL

€ 5.00

7

3280024A00
ref: 7

RECTIFIER ASSY

€ 300.00

8

0211206206
ref: 8

SCREW

€ 2.00

9

3290024A10
ref: 9

IGNITER UNIT

€ 900.00

10

3290024A20
ref: 10

IGNITER UNIT

€ 900.00

11

0151706406
ref: 11

BOLT

€ 2.00

12

0918006091
ref: 12

SPACER (6.4X9X21.5)

€ 5.50

13

0831616066
ref: 13

NUT

€ 2.50

14

3341024A01
ref: 14

COIL ASSEMBLY,IGNITION

€ 109.00

15

3342024A01
ref: 15

COIL ASSEMBLY,IGNITION NO

€ 71.00

16

3343024A01
ref: 16

COIL, IGNITION NO.3

€ 109.00

17

3344024A01
ref: 17

COIL ASSEMBLY,IGNITION

€ 71.00

18

3341624A00
ref: 18

BRACKET,IGNITION COIL

€ 0.00

19

0211205126
ref: 19

SCREW 5X12

€ 1.50

20

0110708126
ref: 20

BOLT 8X12

€ 1.50

21

0832211086
ref: 21

WASHER 8MM

€ 1.50

22

0940306307
ref: 22

CLAMP

€ 4.50

23

3351045010
ref: 23

CAP ASSY,SPARK PLUG

€ 23.00

24

3354105A00
ref: 24

SEAL,SPARK PLUG

€ 7.00

25

3354298000
ref: 25

SEAL,SPARK PLU

€ 4.50

26

3395038B00
ref: 26

RELAY ASSY,FUEL CUT

€ 89.00
